What is the feature of automatic winding machine for cylindrical lithium ion battery?

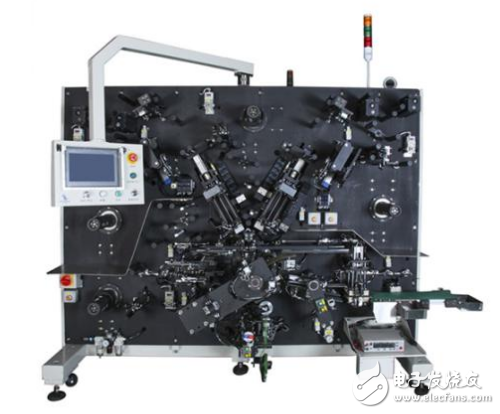

Cylindrical lithium ion batteries automatic winding machine


Circular power lithium battery characteristics of the automatic winding machine can be summarized as:

(1) the welding an ear of positive and negative plates, diaphragm material installed on the fixing device, automatic discharge volume, automatic adjustment, automatic winding, automatic output cell function, convenient operation and maintenance.

(2) is suitable for the circular force lithium battery automatic winding of batteries.

(3) adopts ac servo motor drive, put roll tension control, adjustable tension.

(4) both rolling and coiling rectifying device.

(5) on the sheet of magnetic cleaning device, in addition to electrostatic equipment, dust brush, vacuum device and recycling.

(6) pole piece into entered automatic correction, linear guide, positioning, ensure the quality of winding.

(7) to the positive or negative are adjustable.

A diaphragm (8) outsourcing of outsourcing and sheet was one of two ways.

Monitoring work (9) detection device, if any abnormal automatic alarm and stop.

(10) PLC control system, touch screen display, setting, easy to operate.

(11)finished product automatic conveyer, the structure is reasonable.
