Lipo Batteries Explained-Number, Specifications and Working

The Lipo batteries are also very famous in the world of portable power delivery. This is because of their features like fast charging, easily available, compact size, and power delivery options. All these features of the Lipo batteries make them very famous. These batteries are used as powerhouses for things like toys and electric bicycles sometimes.

People usually don’t know the difference between this type of batteries and other types of rechargeable batteries. Many of them keep on asking about the Lipo batteries and their specs. Here we will tell you all about the specs and working of these batteries.

What do numbers mean on Lipo batteries

The first thing that gets attention on the battery are the different numbers printed on the battery. There are many different numbers but all of them are printed in a sequence on each battery. Here we will discuss all of them.

The First Number On The Battery

The first number on the batteries is the discharge rating of the batteries. This means that the number is the discharge rating of that specific battery. For example, if we use the battery to power a vehicle. In this case, more discharge rating means that you can use more power out of the battery in a single time.

This describes that the vehicle can run at a faster speed in comparison to the battery with smaller discharge rates.

3.2V 20A Low Temp LiFePO4 Battery Cell -40℃ 3C discharge capacity≥70% Charging temperature：-20~45℃ Discharging temperature: -40~+55℃ pass acupuncture test -40℃ maximum discharge rate：3C

READ MORE

The Second Number On The Battery

The second number on the batteries usually comes with mAh in the end. This means that this number represents the power of the battery to store charge. The number with mAh means that the capacity of this battery to store charge is number times milliamp hours. This number is very helpful because it helps us to calculate the output time of the battery. It tells that on a constant discharge rate, how long the battery can hold its power.

The Third Number

The last number on the batteries is usually consisting of two parts. One says the number of cells and their connection type and the other says the voltage of the battery. For example, if the battery says 3S 10.5 V. This means that there are three cells connected in series with each other in the battery and the battery can provide a maximum of 10.5 volts.

What are the specifications of Lipo batteries

As the Lipo batteries are available in many different sizes and shapes, their specifications for every model are different as well. But there are some things that a battery has in common. Their values may differ from model to model, but the standards remain the same. Here is the detailed description of all of them

The discharge rate of the battery

The discharge rate of the battery is the rate at which the battery can be safely discharged. These batteries are very sensitive. They produce a lot of heat when they are being used. This heat might be enough to make the quality of the battery worse.

So that there is a discharge rate decided for the battery. It tells about the limit of discharging batteries for safety purposes.

The Capacity of The Battery

The capacity of the battery means its quality to store charge. This means how much power can the battery hold with a single charge. This value helps in calculating the power delivery time for the battery. This is very useful as it helps to calculate that for how long the battery will be enough to provide energy.

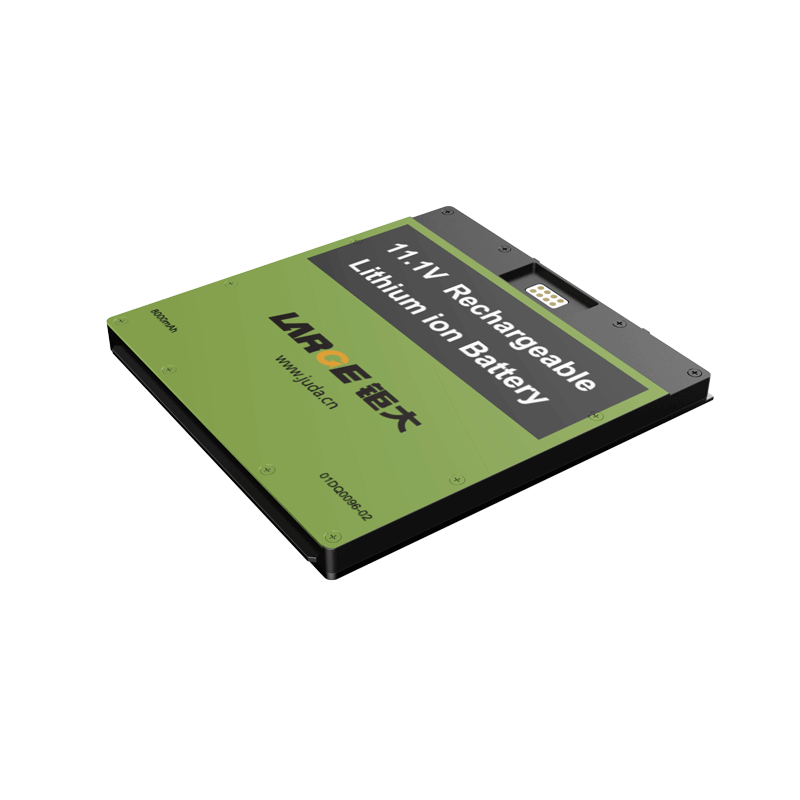

Low Temperature High Energy Density Rugged Laptop Polymer Battery Battery specification: 11.1V 7800mAh -40℃ 0.2C discharge capacity ≥80% Dustproof, resistance to dropping, anti - corrosion, anti - electromagnetic interference

READ MORE

It is always a better option to select a battery with bigger capacity value. More mAh means that the battery can hold more power.

The Voltage of The Battery With The Number of Cells

The voltage and the number of cells is also an important part of the battery specifications. This tells the type of connection that the cells have inside the battery and the voltage that you are getting from the battery.

The type of connection is very important in the Lipo batteries. This is because a series connection provides more voltage while the parallel connection will provide more power and current buy with less voltage.

Knowing about these things helps a lot in calculating the power, range, and output time of your battery.

How does a Lipo battery work

Now we will discuss the working of a Lipo battery. This can be divided into 3 main parts. All of these are discussed in detail below.

Construction of The Battery

The construction of the battery is just like some other types of batteries. For power delivery, there is an anode and a cathode. These are connected to the device for charging or providing power. These electrodes are connected to two different sheets of different materials. These sheets are separated with the help of an electrolyte.

This electrolyte is responsible for carrying charged ions from one end to another. It also keeps two materials from touching each other to prevent short circuits and sparks.

Power Delivery

The power delivery of the battery is done by three major components:

Anode.

Cathode.

Electrolyte.

The charges are stored on one end of the battery. They are transferred to the device that is connected to the battery. They flow from the device to the other electrode of the battery. In this way, the cycle is completed. In the whole process, an electrolyte is responsible for keeping the charges organized according to their potential.

Charging

When the battery is being charged, the whole process is repeated instead of one thing. This time the charges are being provided to the battery. And the whole process is conducted in the opposite direction as before.

One major thing in these batteries is the energy density of these batteries. This means how much power the battery can provide regarding its mass. Lesser mass with more power means that the battery is good.

Conclusion

This was all about the Lipo batteries, their specifications, the numbers on batteries, and the working methods of these batteries were discussed here.
