What is schematic symbol for a battery?

To have the option to peruse schematics you should know the schematic images. However, you don't have to remember them all. Most importantly, it's generally enough to know the battery, resistor, capacitor, semiconductor, diode, LED, and switch.

Later when you go over images you don't have any acquaintance with, you can return here to distinguish what it is.

The following is an outline of the most utilized symbols in circuit charts.

Battery

A huge and a little line is assumed to speak to one battery cell so the picture underneath would recommend a two-cell battery of 3 V. In any case, generally individuals simply draw the battery image with a couple of cells regardless of what voltage it is.

The image for a battery is demonstrated as follows:

Low Temperature High Energy Density Rugged Laptop Polymer Battery Battery specification: 11.1V 7800mAh -40℃ 0.2C discharge capacity ≥80% Dustproof, resistance to dropping, anti - corrosion, anti - electromagnetic interference

READ MORE

Capacitor

Capacitors are either spellbound or not. A spellbound capacitor is set apart with a "+" sign. It is imperative to recognize these two on the grounds that the enraptured capacitor should be set accurately as per the "+" sign.

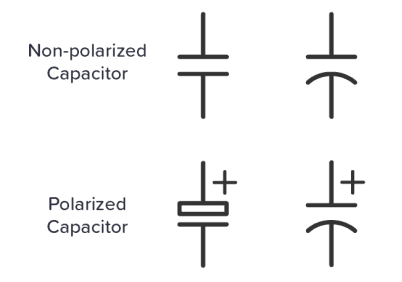

The images that are usually utilized for the two are demonstrated as follows.

Resistor

The schematic image of the resistor is attracted in two distinct ways. The american style resistor is drawn as a crisscross resistor while the european style resistor is drawn as a rectangular resistor.

Potentiometer

The potentiometer is attracted in a few distinct ways. The image is generally drawn as a resistor with a bolt across it or pointing down on it as the one underneath.

Diode

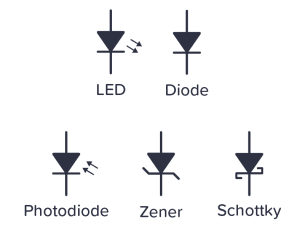

The diode family has a few unique images in light of the fact that there are a few distinct kinds of diodes. The following is a standard diode, a Zener diode, a Schottky diode, and a Light-Emitting Diode (LED).

Transistor

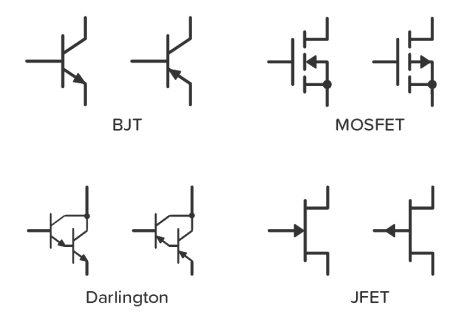

The most widely recognized semiconductor types are the Bipolar Junction Transistor (BJT), Darlington Transistor, and the Field Effect Transistor (FET). The schematic images for these sorts are demonstrated as follows:

IC

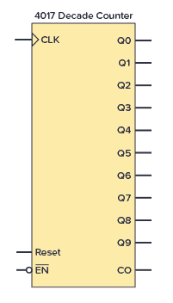

An Integrated Circuit (IC) generally appeared as a rectangular box with pins. Underneath, an illustration of the CMOS IC 4017 is appeared.

Logic Gates

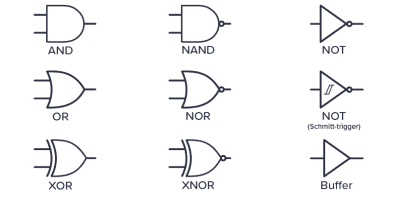

Here are the schematic images

Inductor

The inductor image seems as though a snaked wire as this is the thing that an inductor basically is.

Switch

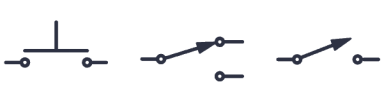

A switch can be spoken to from numerous points of view in a circuit outline. The following is a couple of models:

Operational Amplifier

The operational speaker or "opamp" is spoken to as a triangle with two information sources and one yield. At times, the force supply pins are eliminated, yet you actually need to interface them for it to work.

Which is the positive side if a battery?

Figuring out which battery terminal is positive and which is negative is a moderately clear issue. Since working up a lot of jumper connections can hurt your vehicle, most automakers make it easy to recognize the positive and negative terminals.

Every battery has two metal terminals. One is checked positive (+), the other negative (- ). There are likewise certain and negative links in the jumper link set. The red one is positive (+), the dark one is negative (- ). Never interface the red link to the negative battery terminal or a vehicle with a dead battery.

A cell or battery is drawn with a long queue and a more limited line.

The longer one is the positive side (in addition to is longer).

The shorter one is the negative side (less is more limited).
