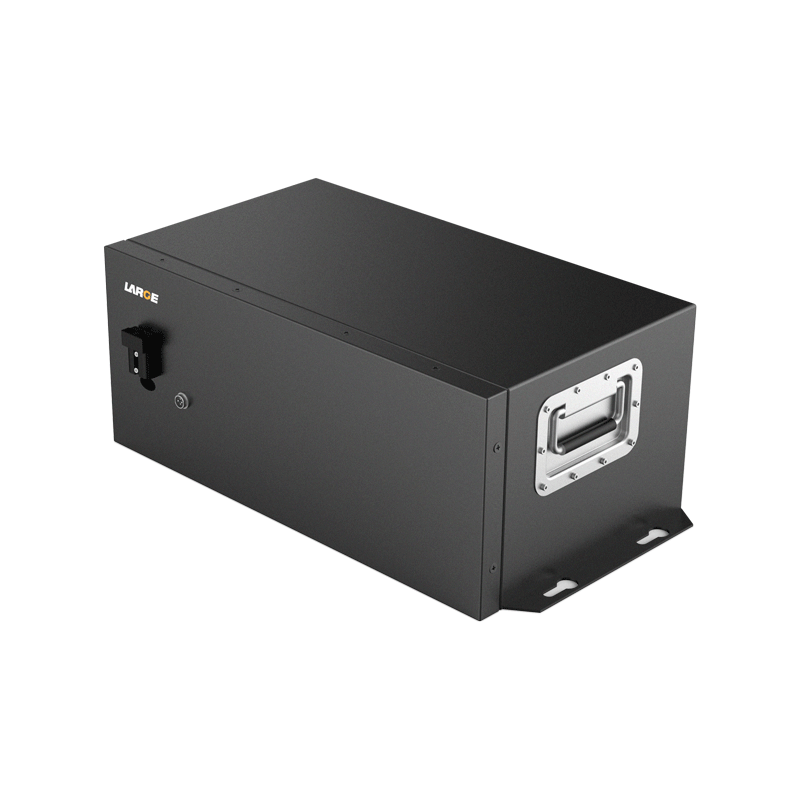

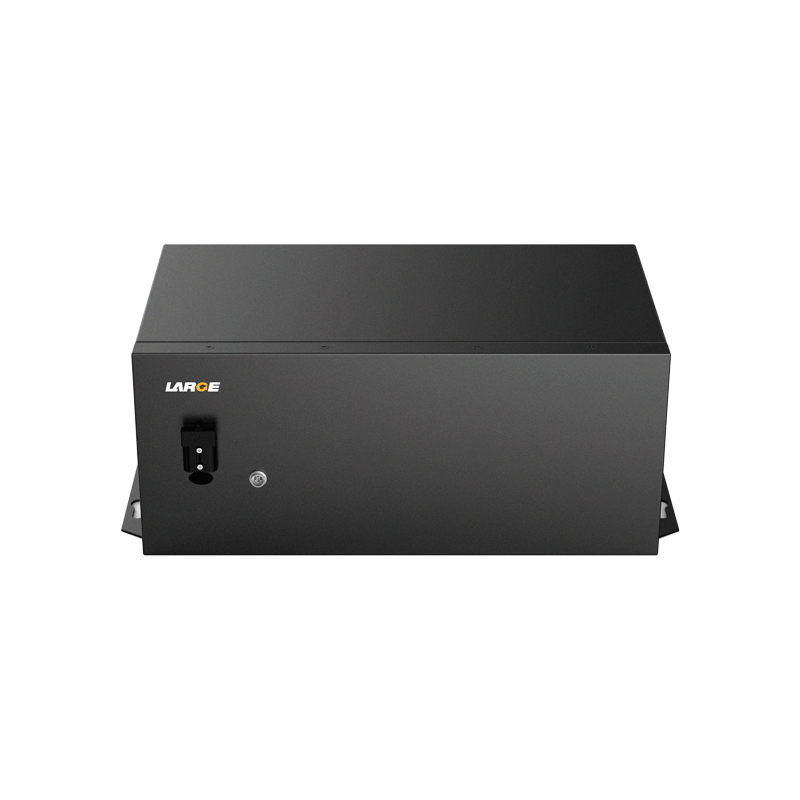

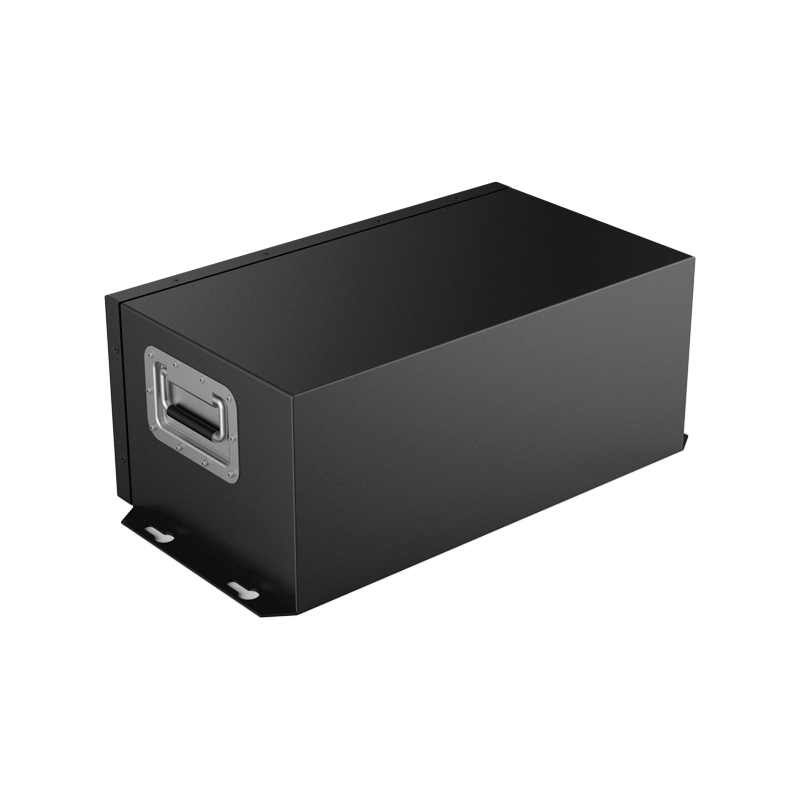

48V 100Ah LiFePO4 Battery for AGV

Product number: 03EQ070-01

Cell model：26650/3.2V/3300mAh

Battery specification: 26650-15S34P/48V/100Ah

Nominal voltage：48V

Nominal capacity：100Ah

Charging voltage: 54V

Charging current: ≤50A

Discharging current: 100A

Instant discharging current: 300A

End-off voltage: 37.5V

Internal resistance: ≤200mΩ

Battery weight: 55kg

Product dimension: 620*325*240mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～60℃

Temperature protection: 65℃±5℃

Battery case: cold rolling + powder spraying shell

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, 485 communication, etc.

Application field: industrial machine, AGV

Product features

1. Communication function: LCD screen is used to display voltage and capacity with GX16  socket communication interface;

2. Anderson output: Anderson large current output interface is adopted to increase the conductivity reliability.

3. Data communication management: adopt IC+TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks..

4. The battery pack is safe with special handle. It has good low temperature performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
