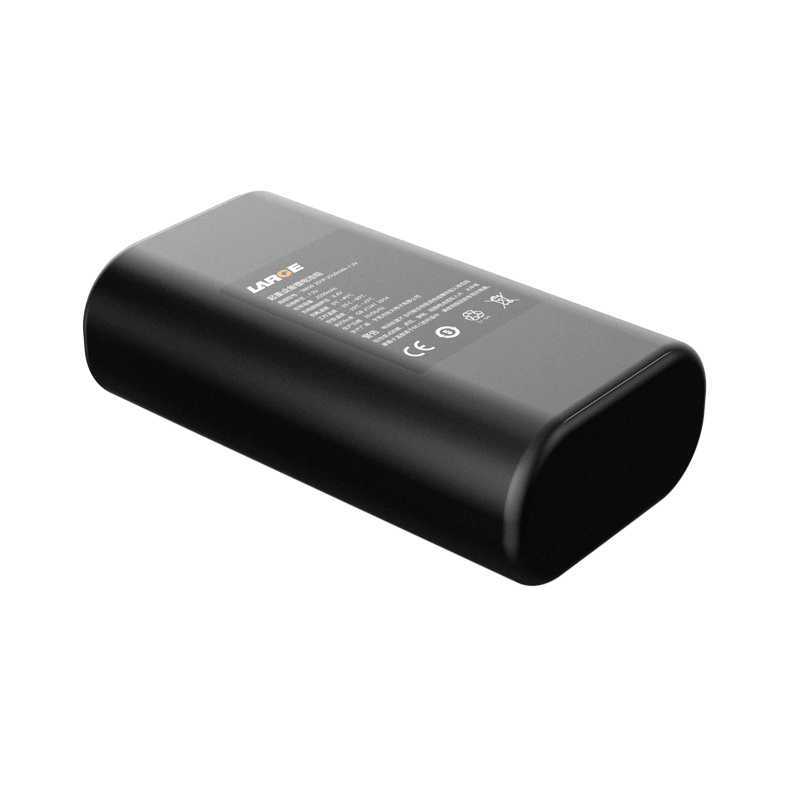

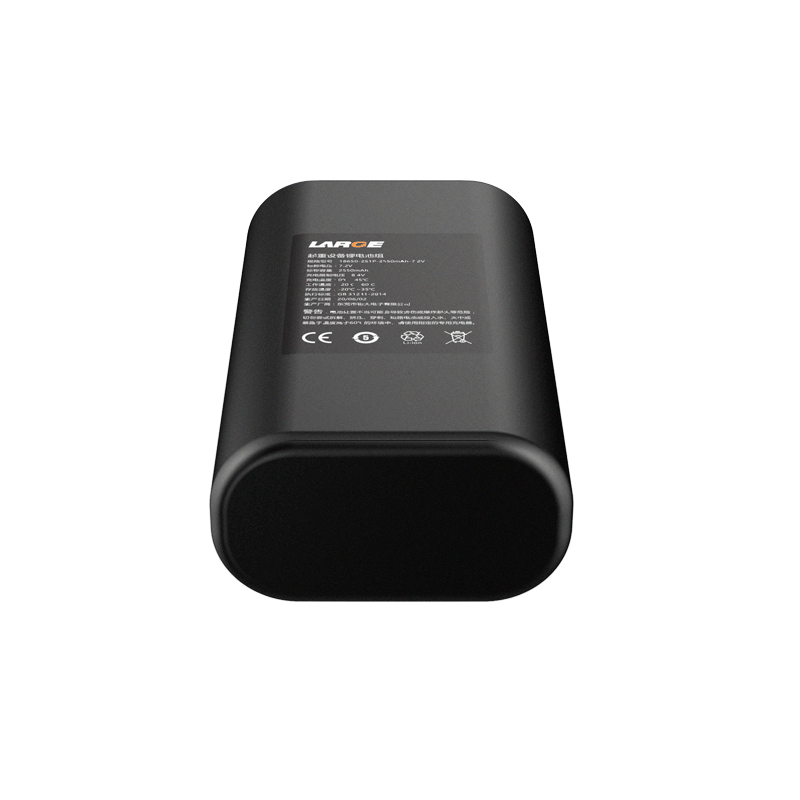

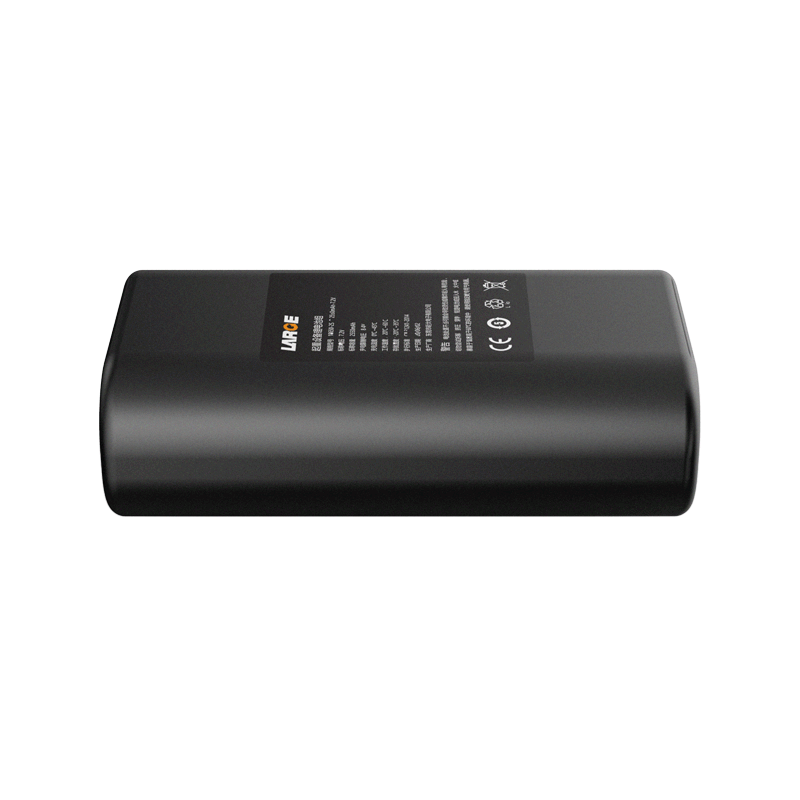

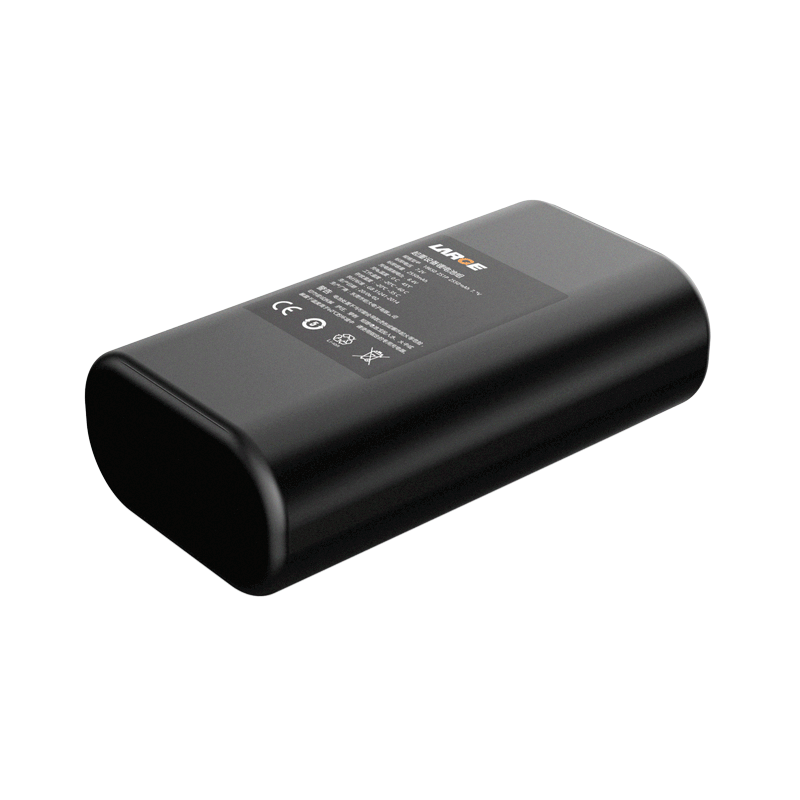

18650 7.2V 2550mAh Lithium Ion Battery for Lifting Appliance

Product number: 36AQ363-02

Cell model：18650-2550mAh-3.6V

Battery specification: 18650-2S1P-2550mAh-7.2V

Product dimension: 67.5*37.5*20.5mm（Max）

Nominal voltage：7.2V

Nominal capacity：2550mAh

Charging voltage: 8.4V

Charging current: ≤1.25A

Discharging current: 0.5A

Instant discharging current: 2.55A

End-off voltage: 6.0V

Internal resistance: ≤200mΩ

Battery weight: 120g

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35℃

Battery case: blue PVC shrink film package

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection, ESD protection, etc.

Application field: POS machine, mobile printing, optical instrument, portable equipment, etc.

Product features

1. Blue PVC heat shrink film package is simple, reliable, and easy to install.

2. Connector plug outlet: adopt MOLEX plug output mode to increase conductive reliability.

3. Battery management: Use Seiko protection chip with good stability, high precision monitoring, accurate control, ESD protection and temperature protection to maximize the elimination of security risks.

4. The battery pack has good safety performance, nice discharge performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
