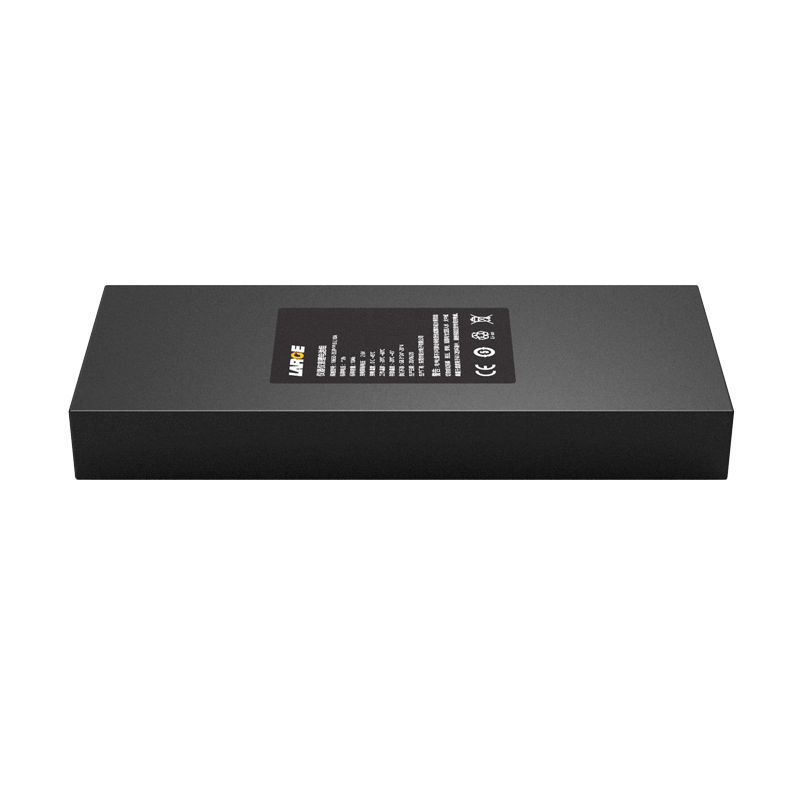

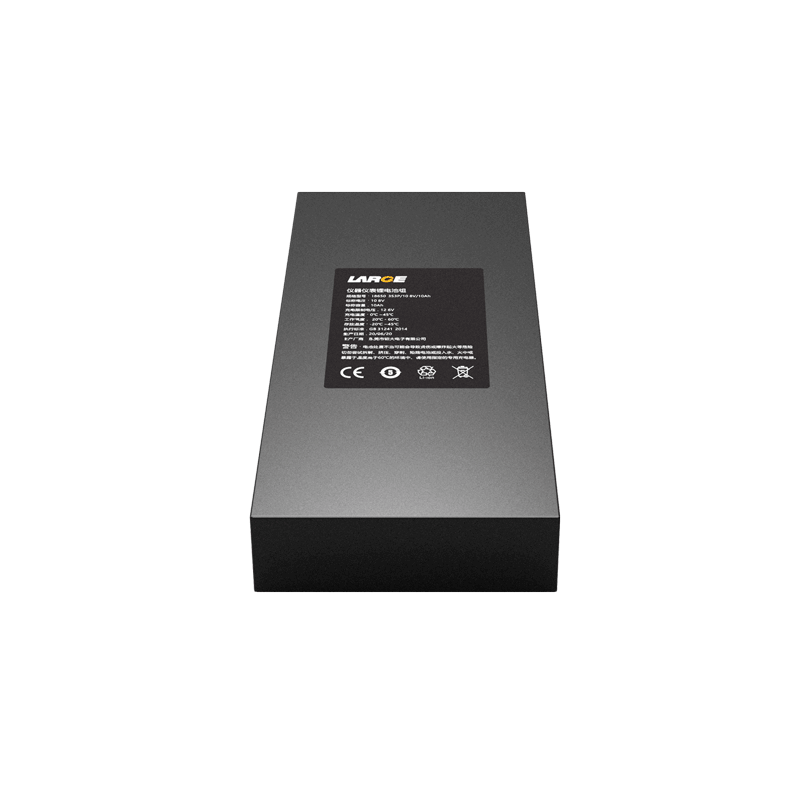

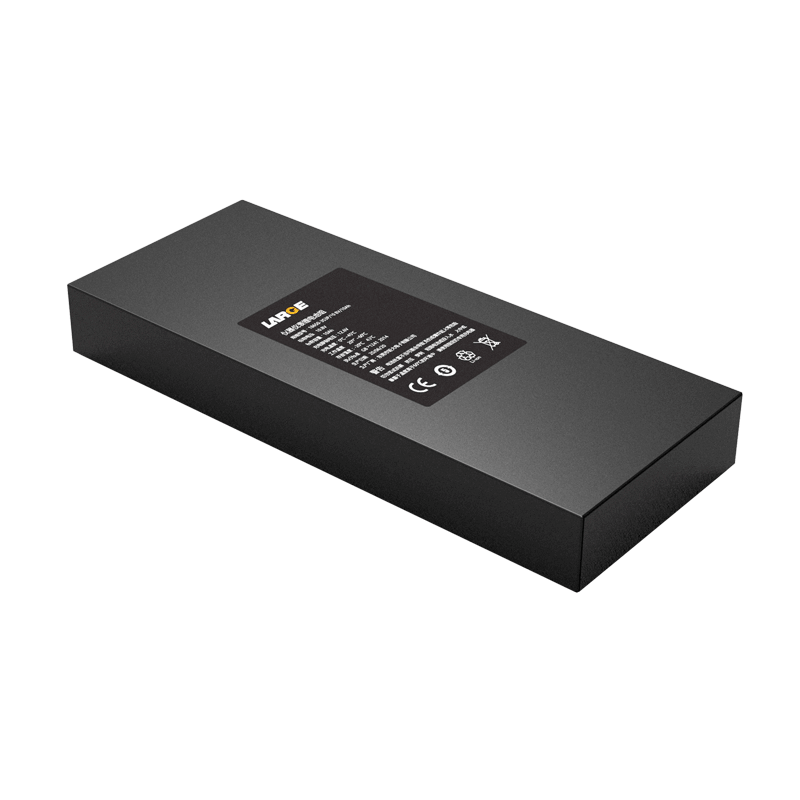

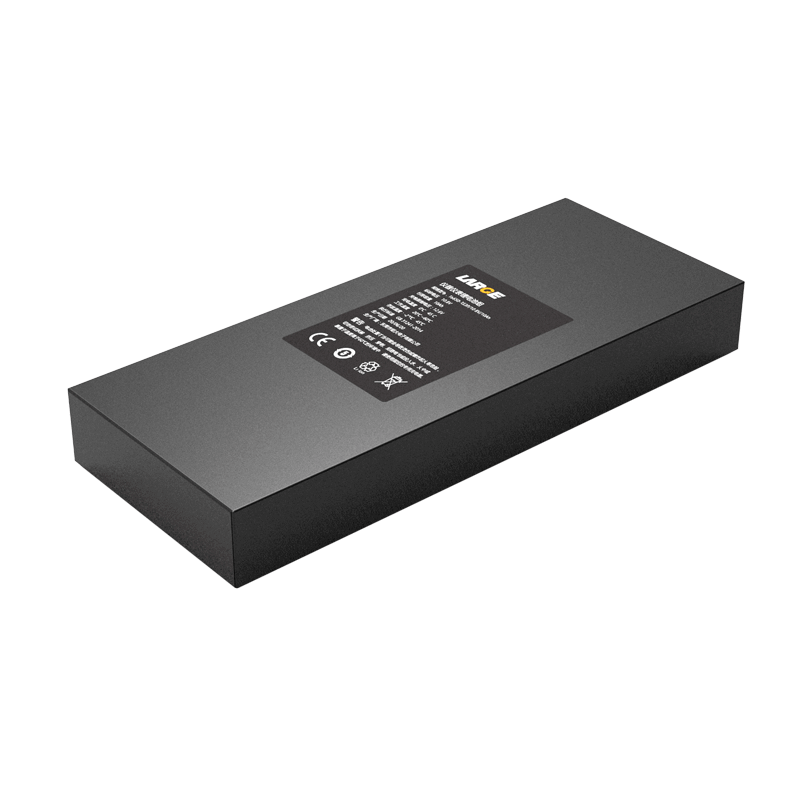

18650 10.8V 10Ah Lithium Ion Battery for Communications Equipment

Product number: 37DZ053-02

Cell model：18650/3.6V/3400mAh

Battery specification: 18650-3S3P/10.8V/10Ah

Nominal voltage：10.8V

Nominal capacity：10Ah

Charging voltage: 12.6V

Charging current: ≤3A

Discharging current: 3A

Instant discharging current: 9A

End-off voltage: 8.1V

Internal resistance: ≤150mΩ

Battery weight: 430g

Product dimension: 185*75*23mm（+/-1mm）

Charging temperature：0～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～45℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, charging overcurrent protection, discharging overcurrent protection, etc.

Application field: communication equipment

Product features

1. Small self-discharge.

2.  The battery pack has good security and long cycle life.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
