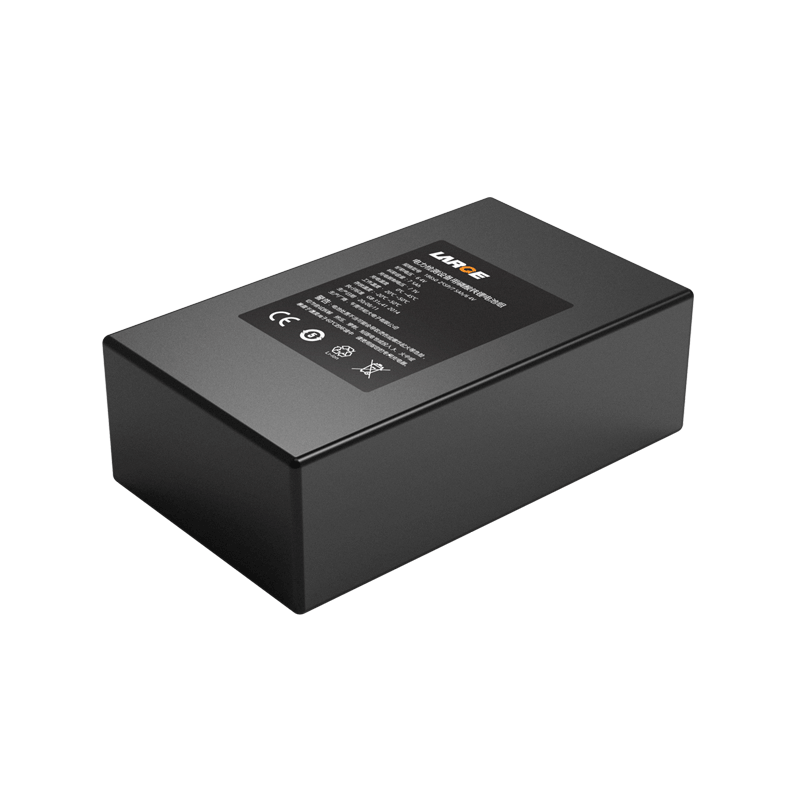

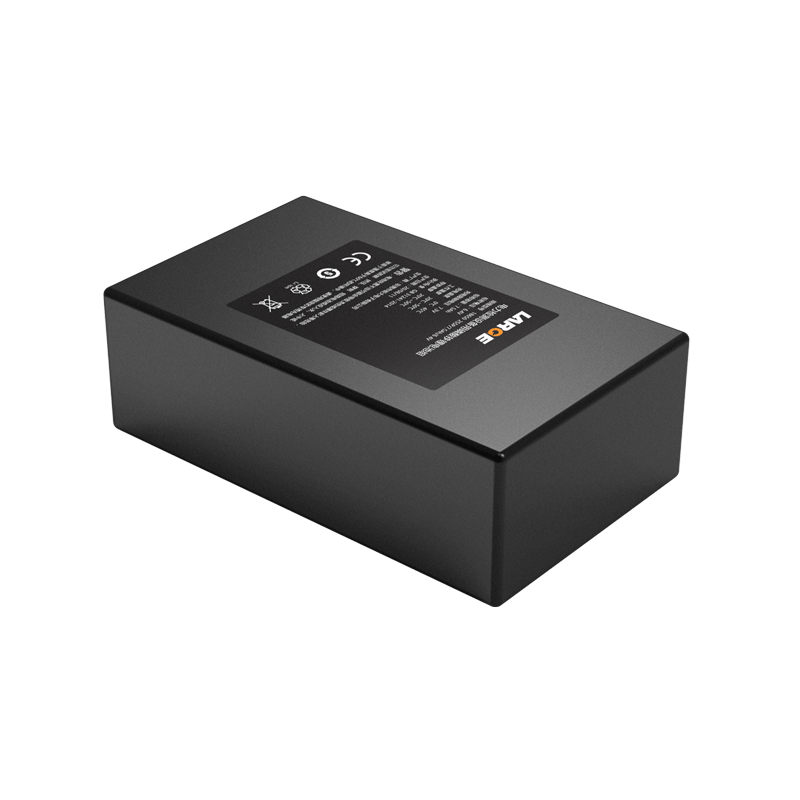

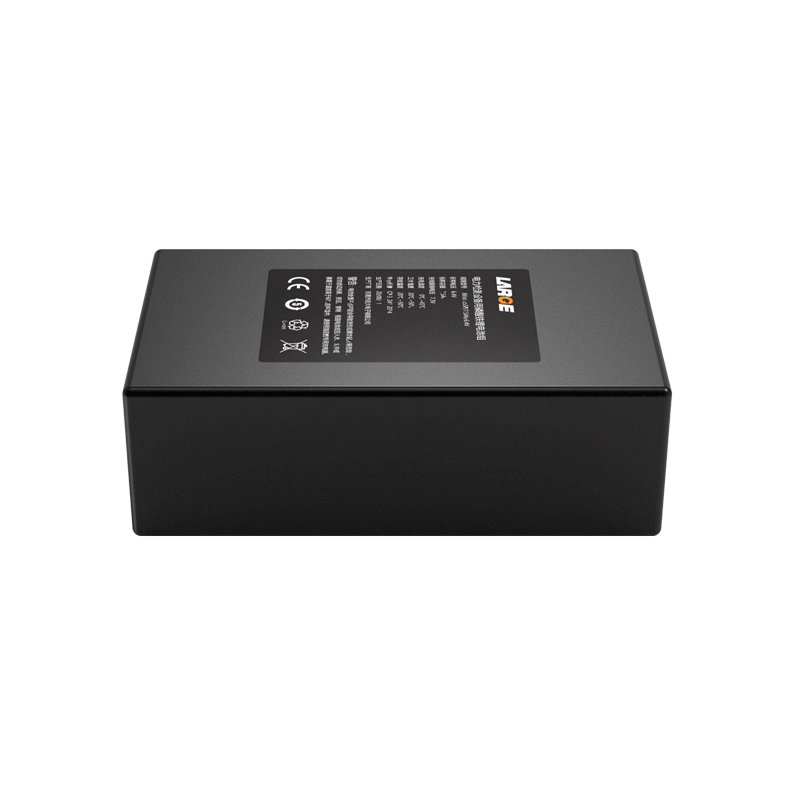

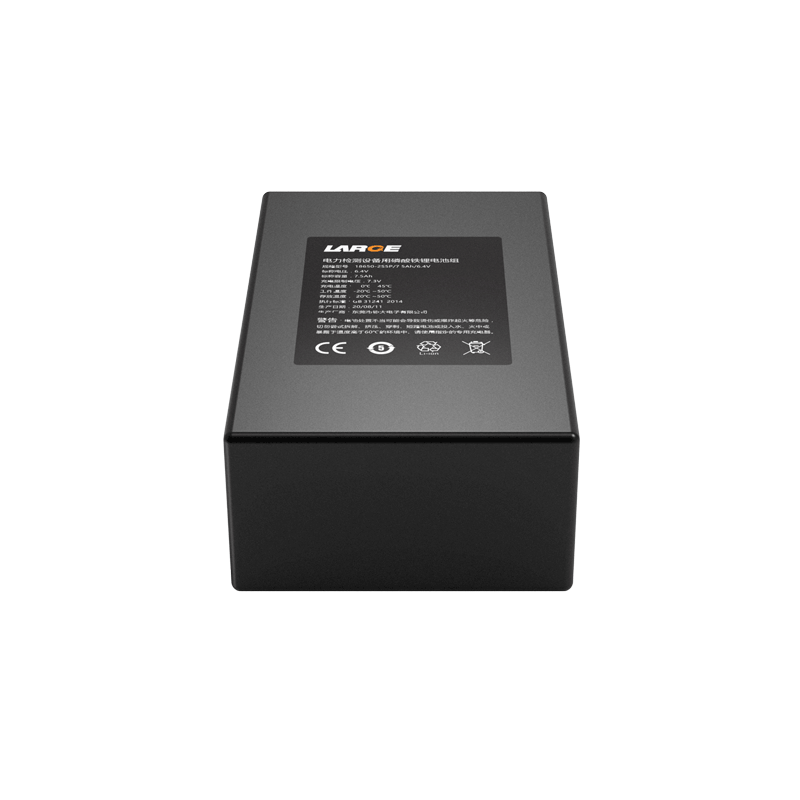

6.4V 7.5Ah/ 6.4V 1.5Ah LiFePO4 Battery for Straight Design Electric Power Testing Equipment

Product number: 34AQ020-01
Cell model：18650/3.2V/1600mAh
Battery specification: 18650-2S5P/7.5Ah/6.4V 18650-2S1P/1.5Ah/6.4V（The finished product contains a set of 6.4V/ 7.5AH batteries and a set of 6.4V/ 1.5AH batteries）
Nominal voltage：6.4V
Nominal capacity：7.5Ah/1.5Ah
Charging voltage: 7.3V
Charging current: 7.5Ah battery 1600mA；1.5Ah battery 320mA
Discharging current: 7.5Ah battery 1600mA；1.5Ah battery 320mA
Instant discharging current: 7.5Ah battery 4000mA；1.5Ah battery 800mA
End-off voltage: 4.0V
Internal resistance: 7.5Ah battery≤300mΩ；1.5Ah battery≤280mΩ
Battery weight: 620g
Product dimension: 120*72.5*38mm
Charging temperature：0～45℃
Discharging temperature: -20～50 ℃
Storage temperature: -20℃～50℃
Battery case: PVC
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Product features
1. It has TI communication protocol and can read the battery voltage, current, capacity and other information.
2. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
