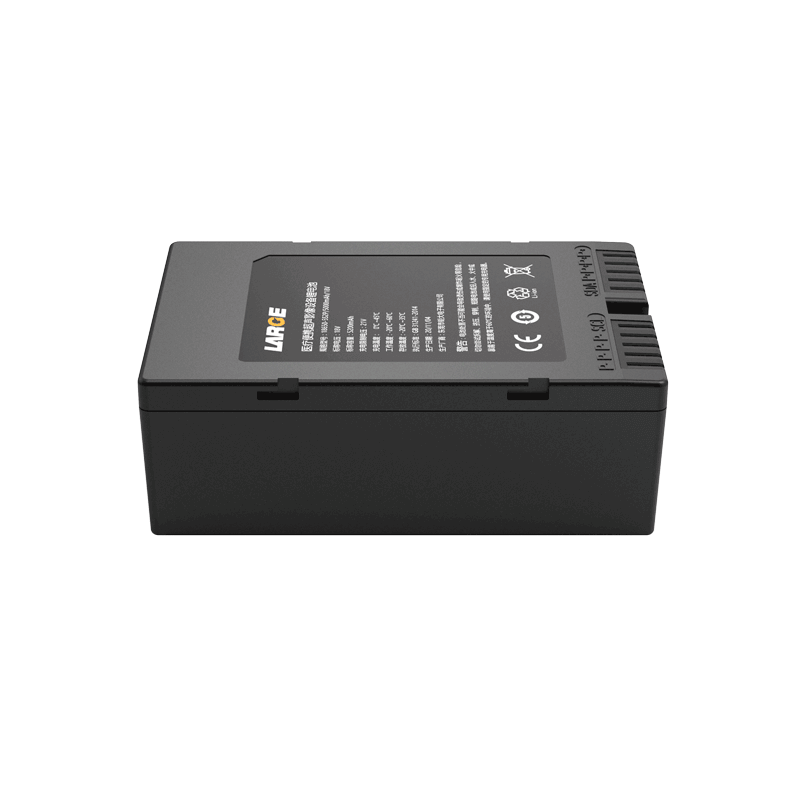

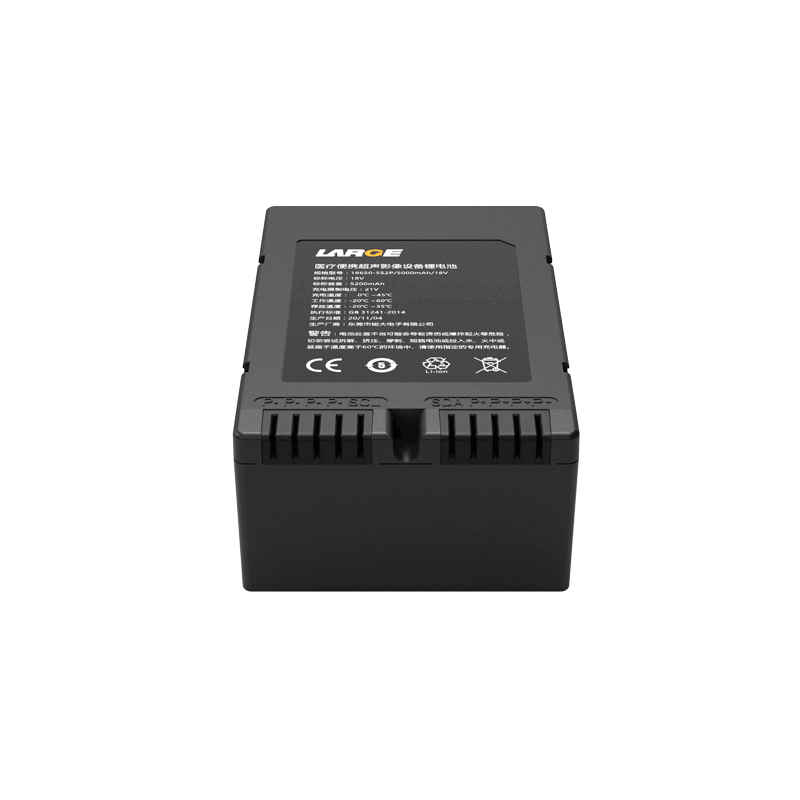

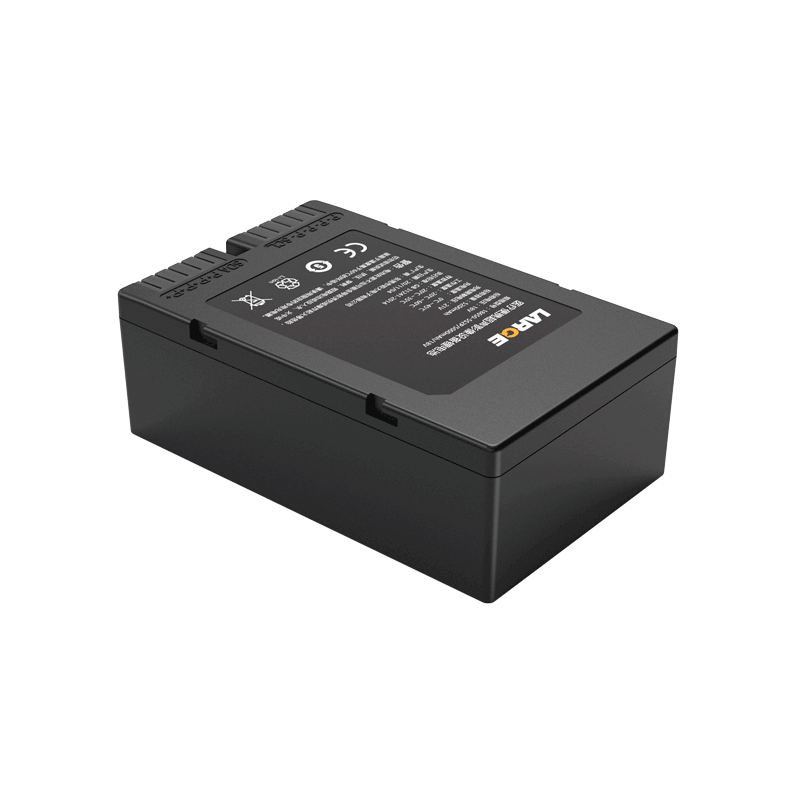

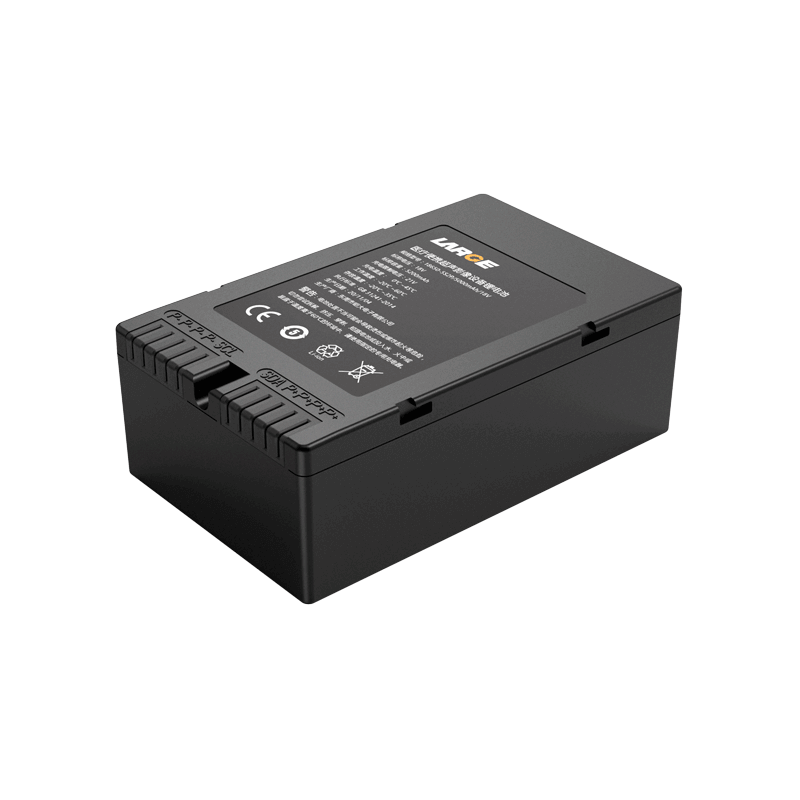

18650 18V 5000mAh Samsung Battery Ternary Battery for Portable Medical Ultrasonic Imaging Equipment

Product number: 04EQ236-02

Cell model：18650-2500mAh-3.6V

Battery specification: 18650-5S2P/5000mAh/18V

Product dimension: 128×80×45mm（Max）

Nominal voltage：18V

Nominal capacity：5200mAh

Charging voltage: 21V

Charging current: ≤2.5A

Discharging current: ≤17A

End-off voltage: 15V

Internal resistance: ≤200mΩ

Battery weight: 650g

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35 ℃

Battery case: ABS+PC case

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, over temperature protection, over current protection and ESD protection.

Application field: portable ultrasonic imaging equipment, medical B ultrasonic diagnostic set

Product features

1. ABS+PC case increases the reliability and robustness of the battery.

2. Hardware output: Adopt metal plate output mode to increase conductive reliability.

3. Battery protection management: Adopt TI-SMBus software management chip with real-time battery status monitoring and control, high precision monitoring, precise control, ESD protection and temperature protection.

4.Data communication management: Adopt TI-SMBus software management chip, SMBus communication data transmission and accurate temperature control so as to try our best to eliminate the security risks.

5. The battery pack has good security , nice discharge performance and long cycle life.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
