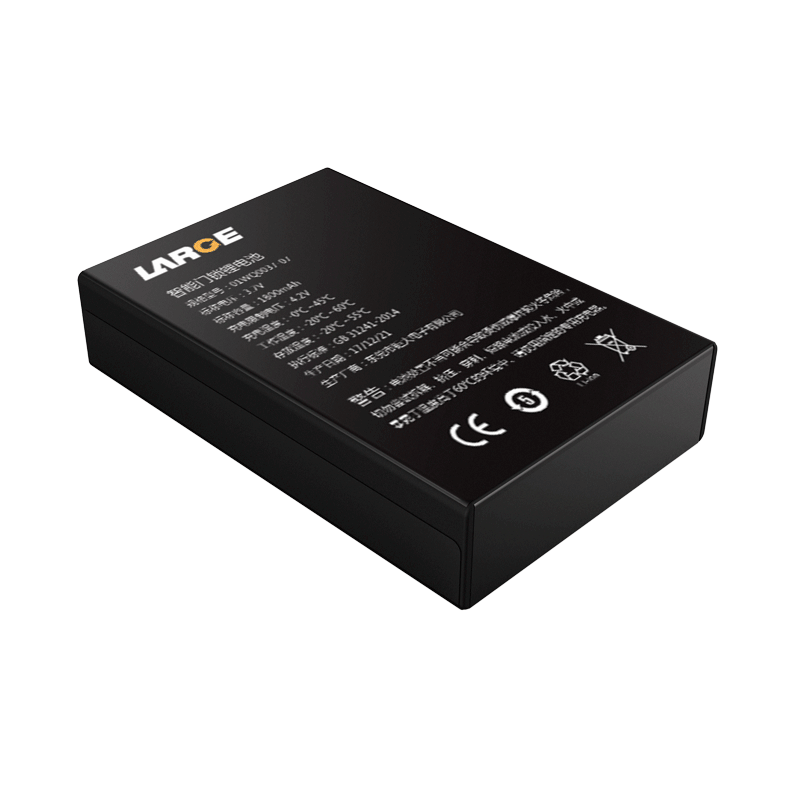

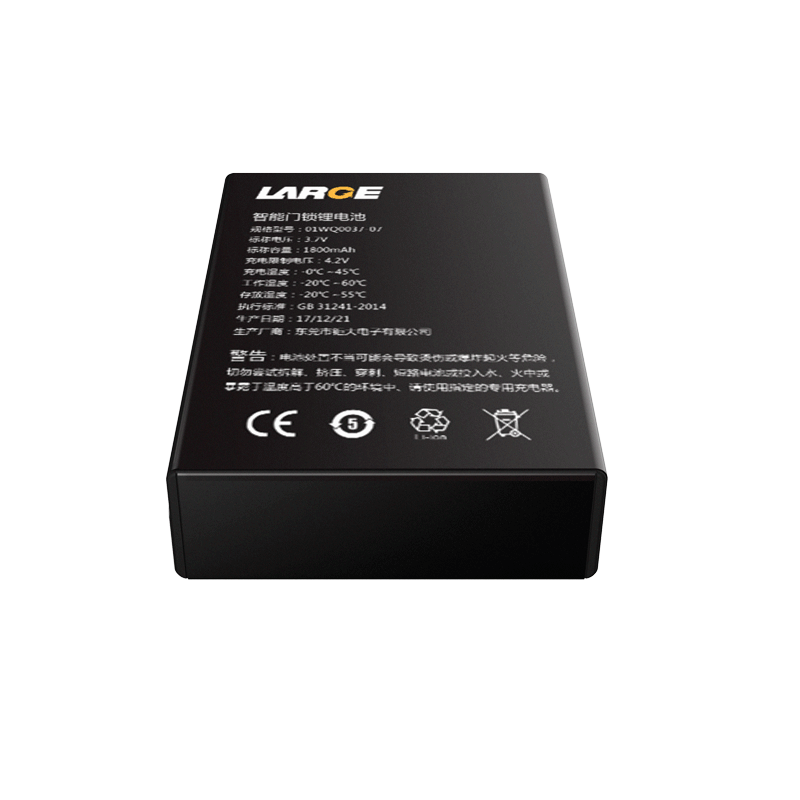

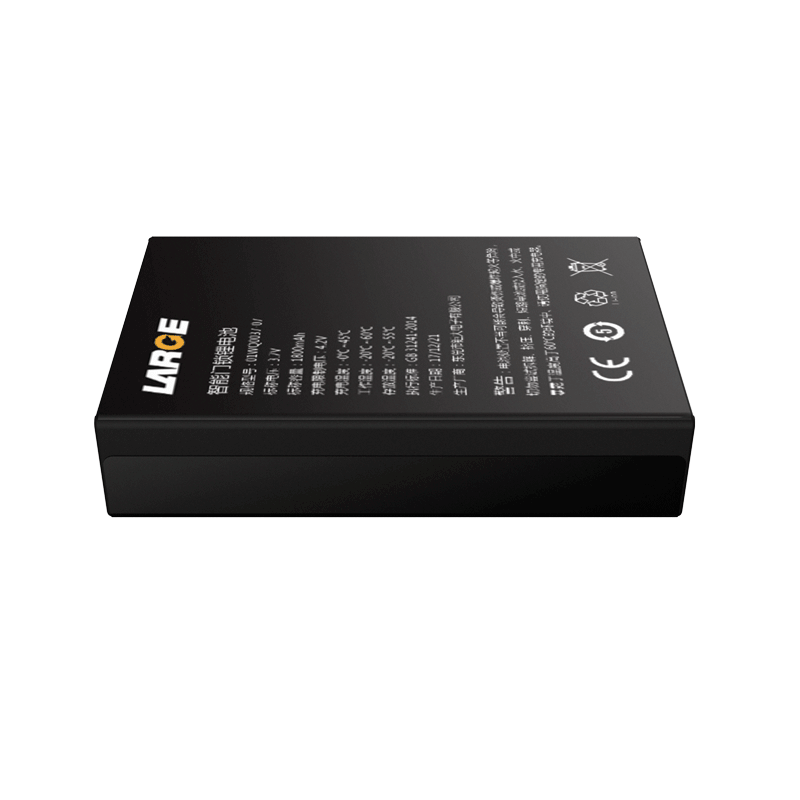

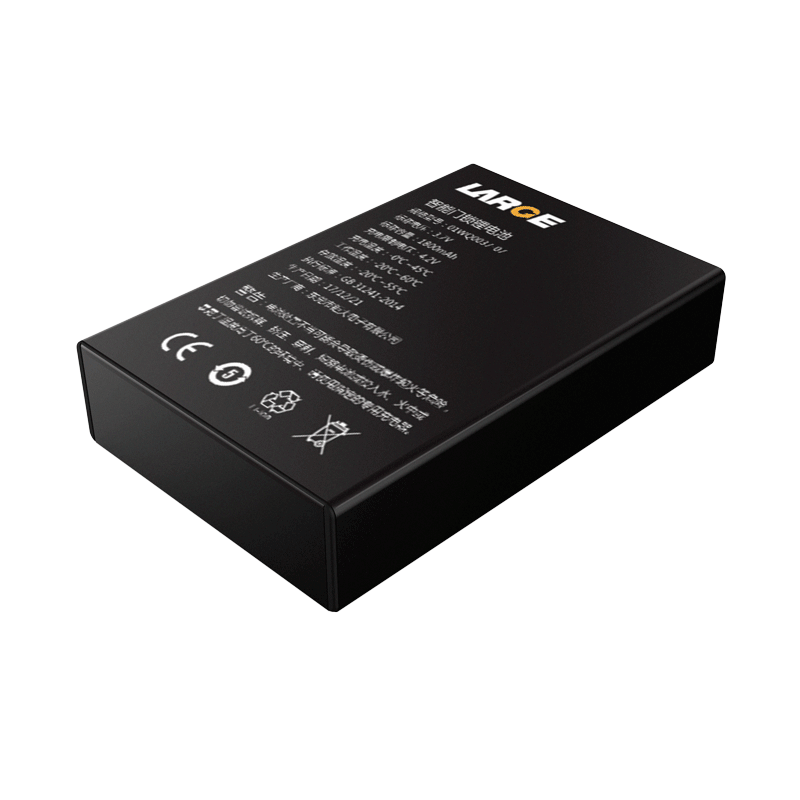

103450 3.7V 1800mAh Lithium Ion Battery Lishen Battery for Intelligent Door Lock

Product number: 01WQ0037-07

Cell model：103450/3.7V/1800mAh

Battery specification: 103450-1S1P/3.7V/1800mAh

Nominal voltage：3.7V

Nominal capacity：1800mAh

Charging voltage: 4.2V

Charging current: ≤0.875A

Discharging current: 1.75A A

Instant discharging current: 1.8A

End-off voltage: 3V

Internal resistance: ≤180mΩ

Battery weight: 0.08Kg

Product dimension: 53.35*35.45*11.75mm（Max）

Charging temperature：5～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～35℃

Battery plastic housing: ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: communication
