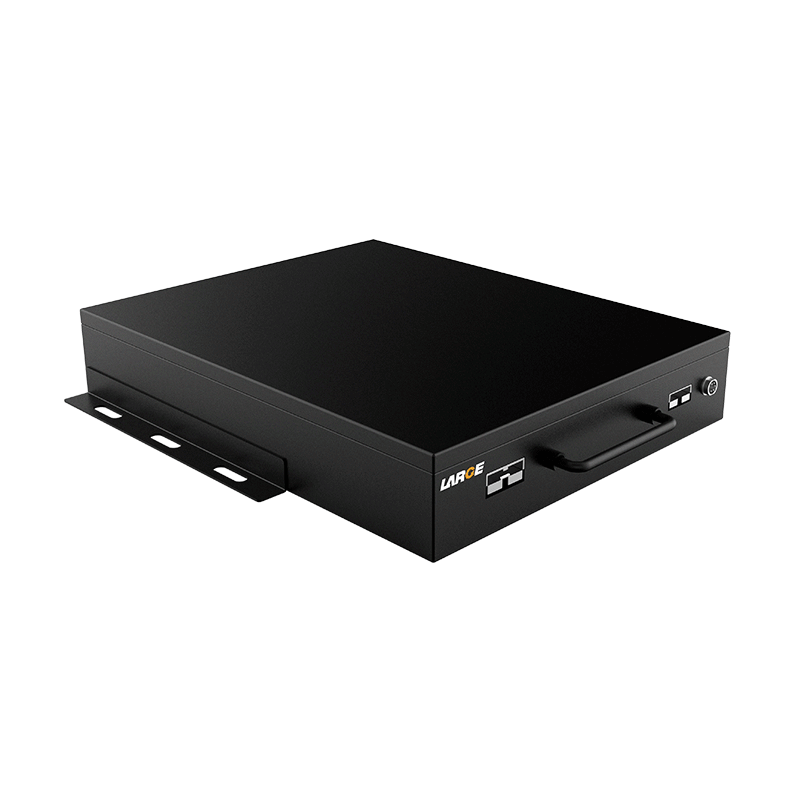

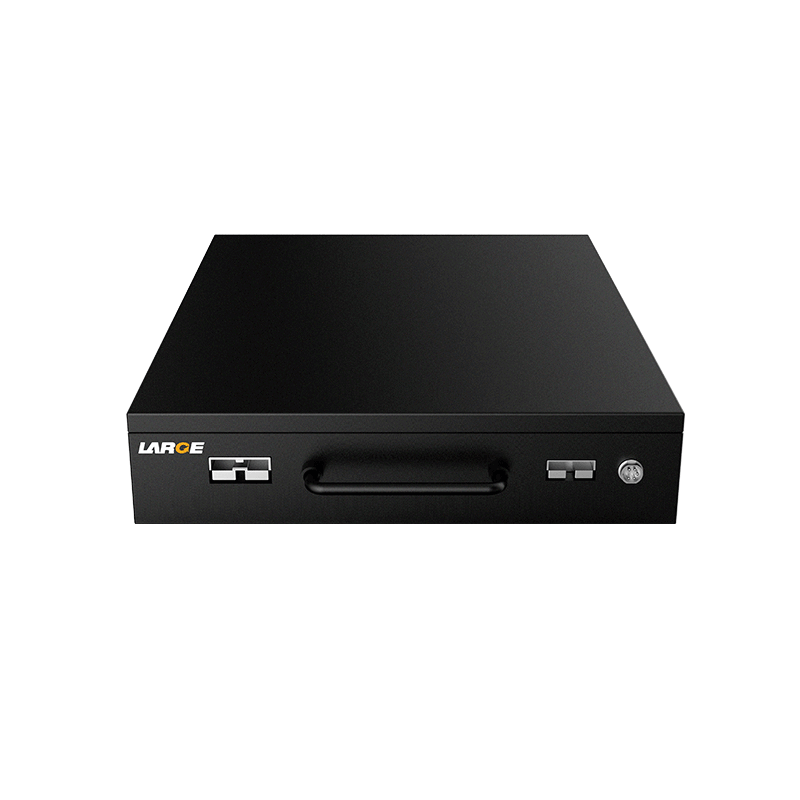

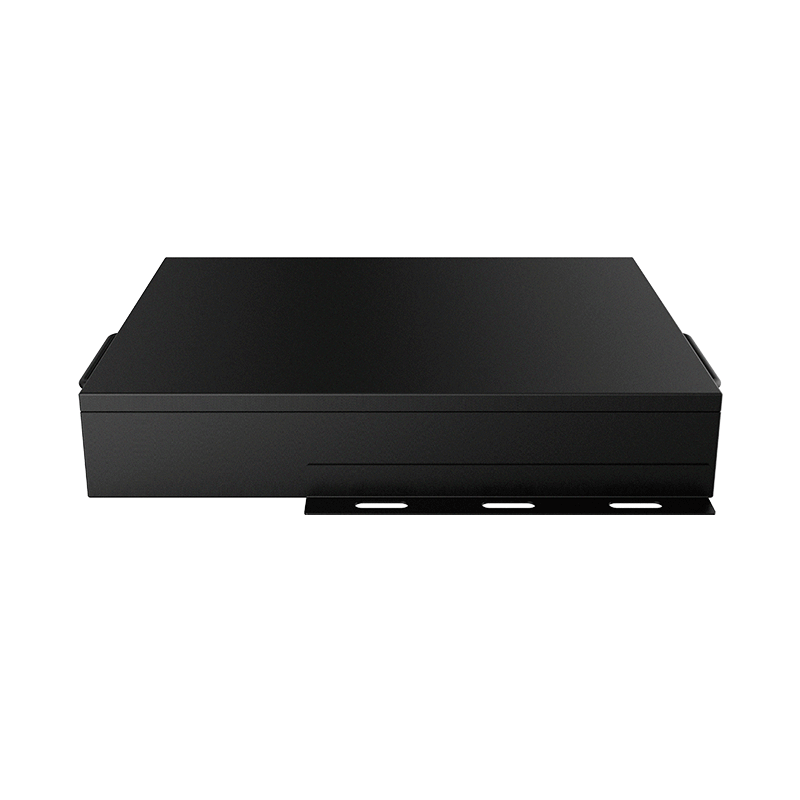

26650 48V 60Ah Power Battery for AGC with RS485 Communication

Product number: 37DZ039-01

Cell model：26650/3.7V/5Ah

Battery specification: 13S12P/48V/60Ah

Nominal voltage：48V

Nominal capacity：60Ah

Charging voltage: 54.6V

Charging current: ≤30A

Discharging current: 100A

Instant discharging current: 150A

End-off voltage: 39V

Internal resistance: ≤100mΩ

Battery weight: 34Kg

Product dimension: 400*500*90mm （Max）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35 ℃

Temperature protection: 70℃±5℃

Battery case: cold rolling and metal plate

Communication: RS485

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection, temperature protection, equilibrium, etc.

Application field: AGV

Product features

1. The battery has large current output.

2. The battery has temperature protection.

3. The battery has capacity testing port.

4. 485 communication management: SOC management and fault alert.

5. The battery can fast charge by 0.5C.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
