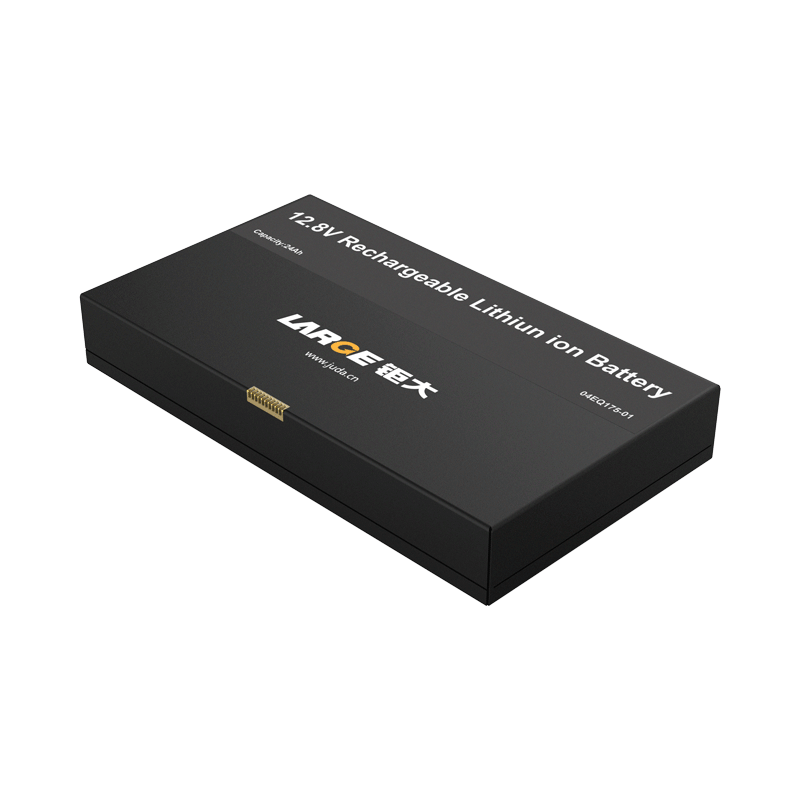

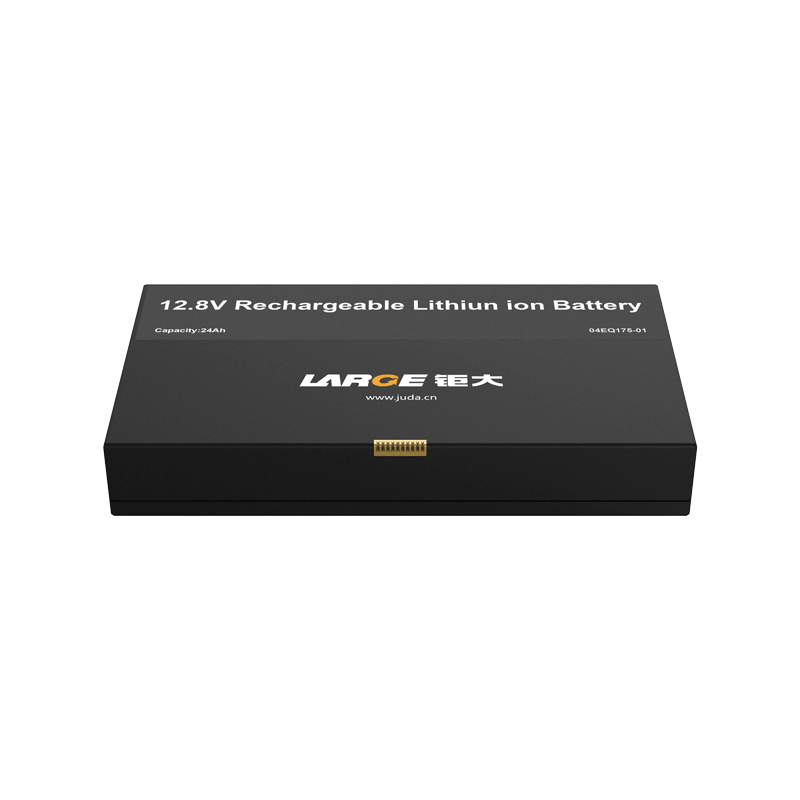

12.8V 24Ah Lithium Ion Battery for Medical Device

Product number: 04EQ175-01

Cell model：32650/3.2V/6Ah

Battery specification: 32650/4S4P/12.8V/24Ah

Nominal voltage：12.8V

Nominal capacity：24Ah

Charging voltage: 14.6V

Charging current: ≤10A

Discharging current: 7A

Instant discharging current: 15A

End-off voltage: 10.8V

Internal resistance: ≤200mΩ

Battery weight: 3Kg

Product dimension: 300×170×45（Max）

Charging temperature：0～45℃

Discharging temperature: -20～50℃

Storage temperature: -20～40℃

Temperature protection: 65℃±5℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: medical device

Product features

Shock-resistant: fill in the shock-resistant structure inside the cold rolling metal plate housing to satisfy the requirements of good security and high reliability.

Salt spray: spray powder on the surface to resist salt spray mold, which is suitable for marine working environment.

Data communication management: adopt software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
