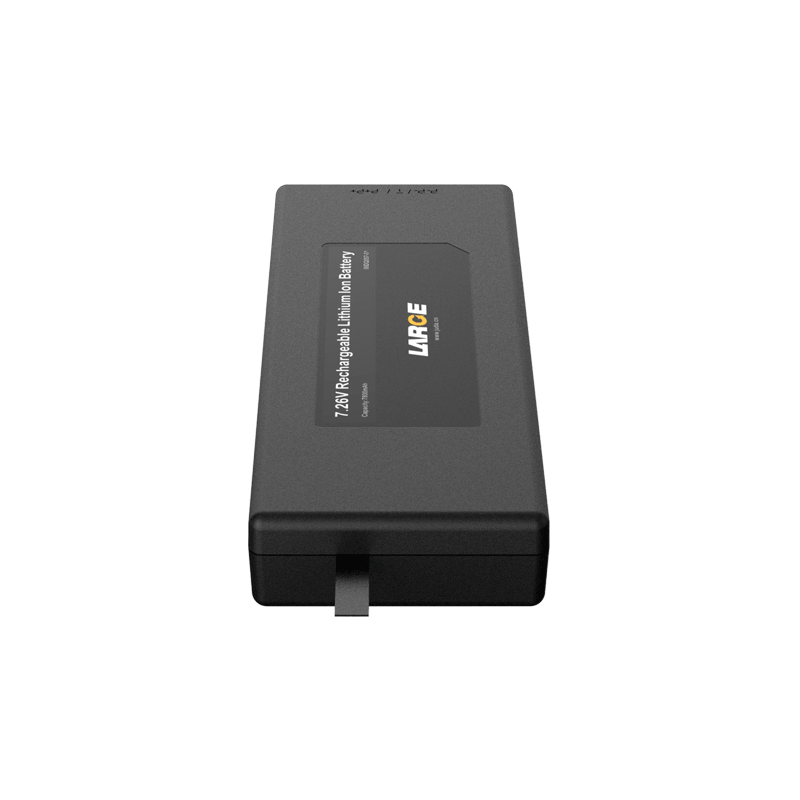

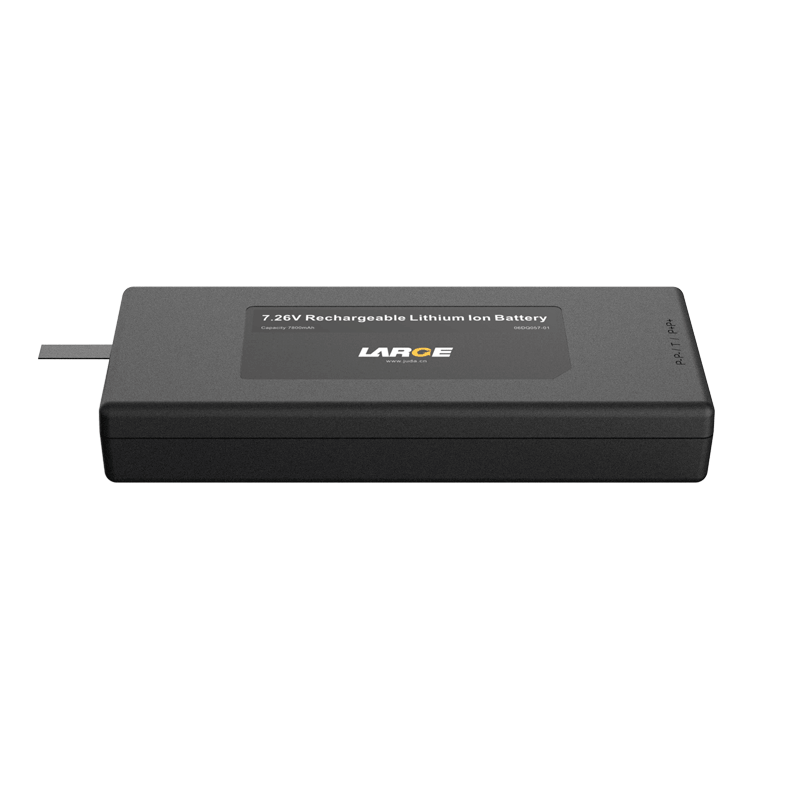

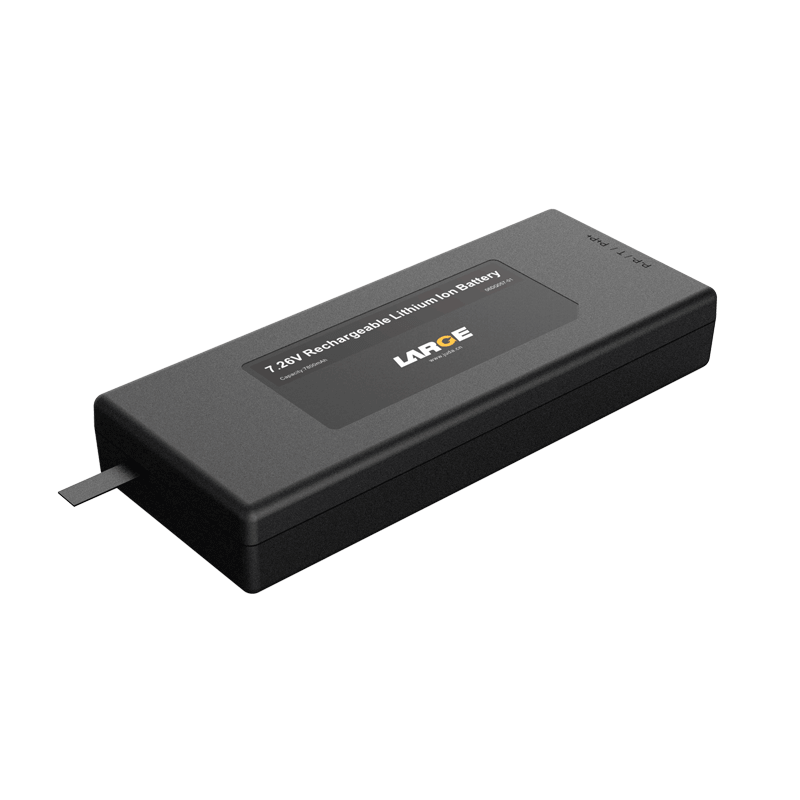

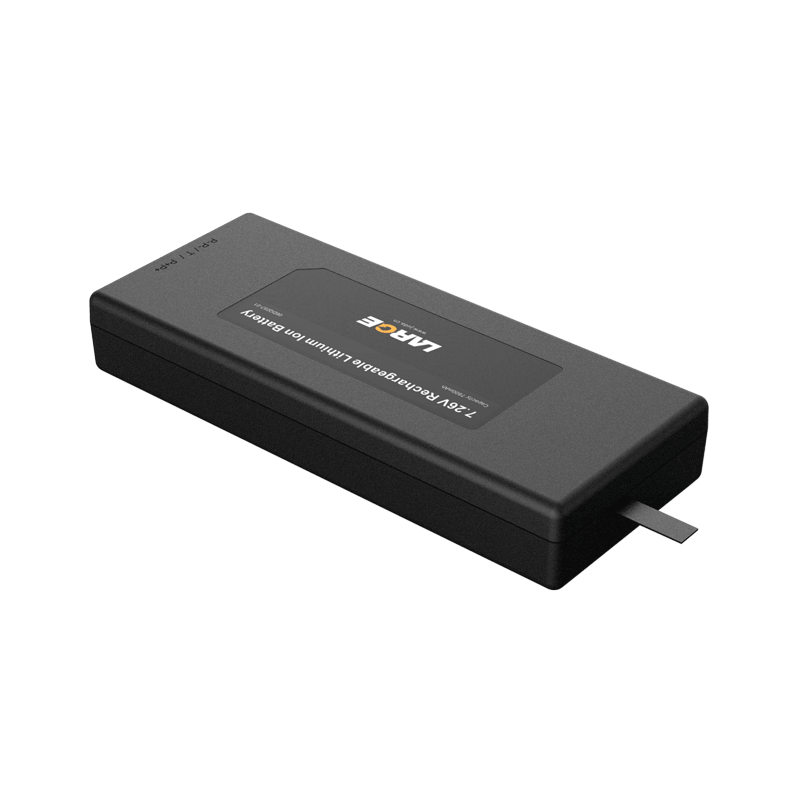

18650 7.26V 7800mAh Samsung Lithium Ion Battery Pack For Medical Controller

Project number: 06DQ057-01

Cell model: ICR18650-26J/2600mAh/3.63V-SDI

Battery specification: 18650-2S3P/7800mAh/7.26V

Nominal voltage：7.26V

Nominal capacity：7800mAh

Charging voltage: 8.4V

Charging current: ≤3900A

Discharging current: 5.0A

Instant discharging current: 6.0A

End-off voltage: 6.0V

Internal resistance: ≤150mΩ

Battery weight: 400g

Product dimension: 23.0*60*146mm

Charging temperature：0～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～25℃

Battery case: plastic ABS+PC

Lithium ion battery protection: power calculation, short circuit protection, overcharge protection, over discharge protection, over current protection, etc.

Application field: medical controller
