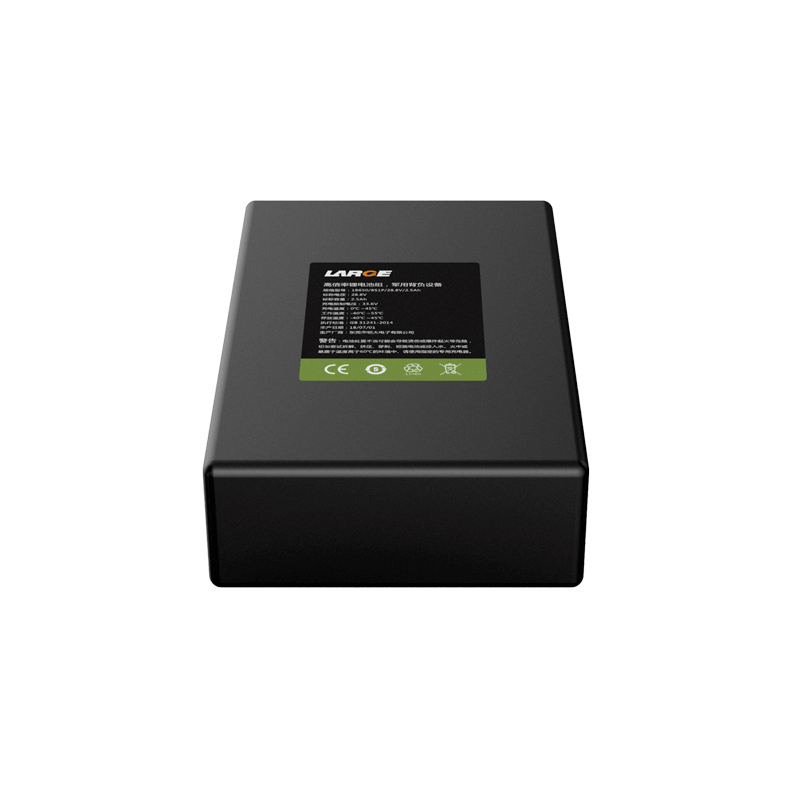

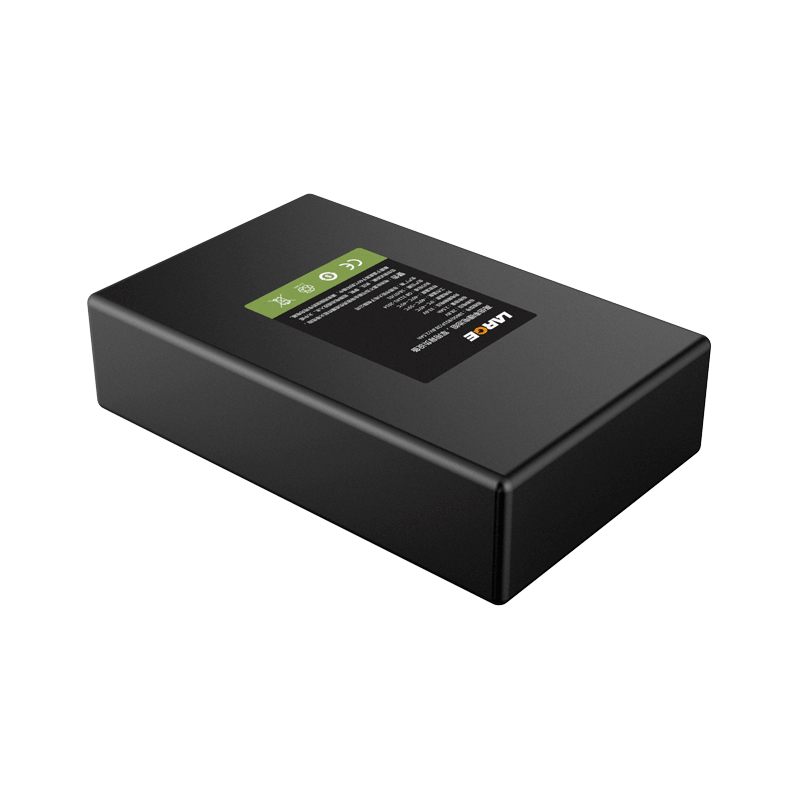

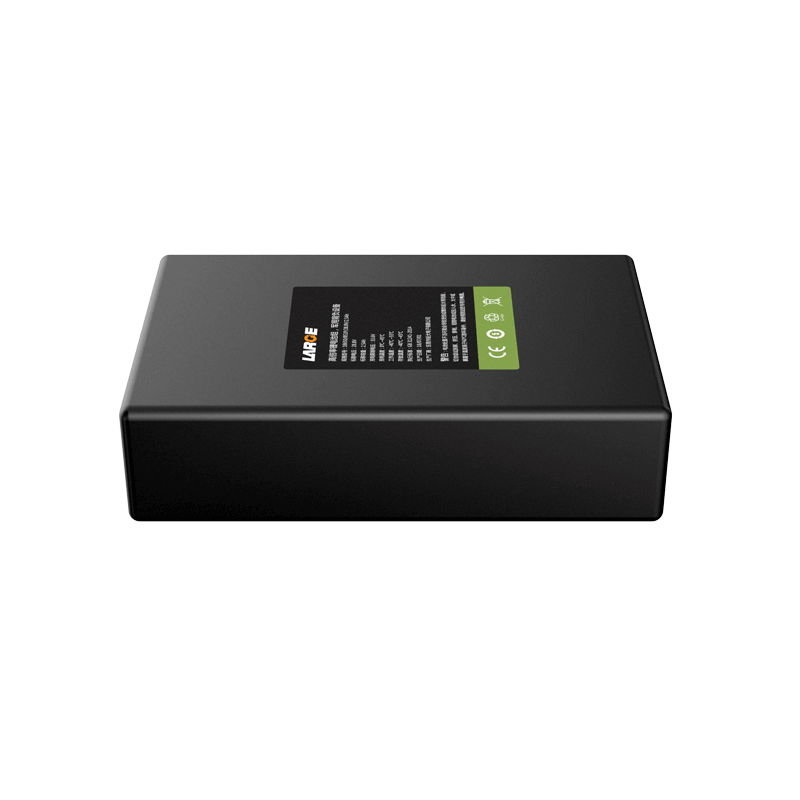

18650 28.8V 2.5Ah Samsung Battery for Man-pack Equipment with 485 Communication

18650 28.8V 2.5Ah Samsung Battery for Man-pack Equipment with 485 Communication
18650 28.8V 2.5Ah Samsung Battery for Man-pack Equipment with 485 Communication
18650 28.8V 2.5Ah Samsung Battery for Man-pack Equipment with 485 Communication
18650 28.8V 2.5Ah Samsung Battery for Man-pack Equipment with 485 Communication

Product Detail

Product number: 35AQ086-02

Cell model:INR18650-25R/3.6V/2.5Ah

Battery specification: 18650/8S1P/28.8V/2.5Ah

Nominal voltage:28.8V

Nominal capacity:2.5Ah

Charging voltage: 33.6V

Charging current: ≤1A

Discharging current: 15A

Instant discharging current: 20A,3~4S

End-off voltage: 20V

Internal resistance: ≤200mΩ

Battery weight: 550g

Product dimension: 140*88*40(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20℃~+23℃(≤12 months)

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection and 485 communication.

Application field: man-pack equipment


Product features

1. Low self-discharge.

2. The battery pack has good security and long cycle life.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

4. It has holder, epoxy plate and safety protection circuit.

5. It has communication which can detect battery information accurately.

*
*
*
