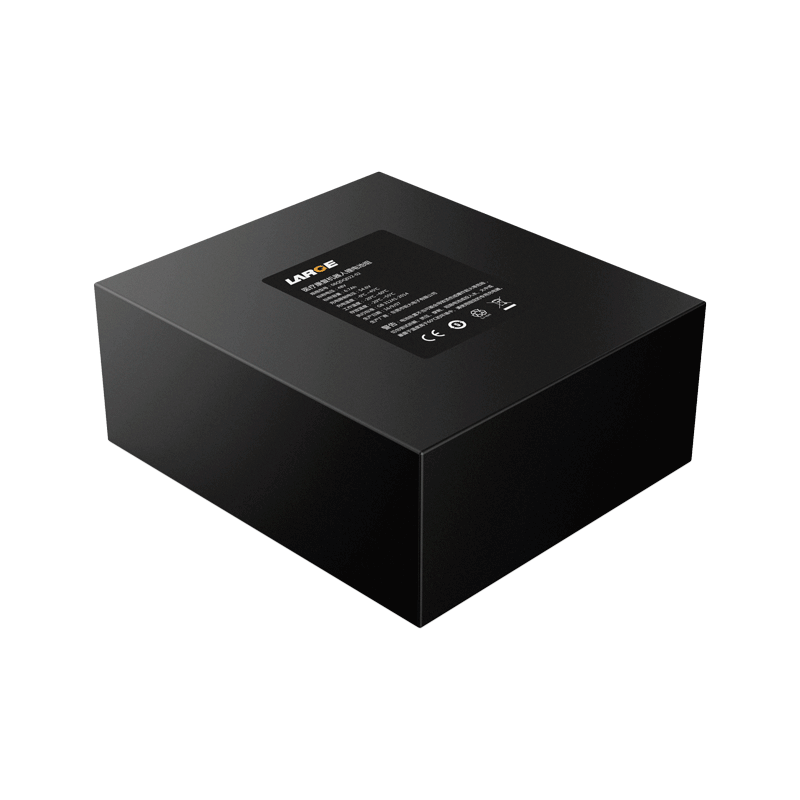

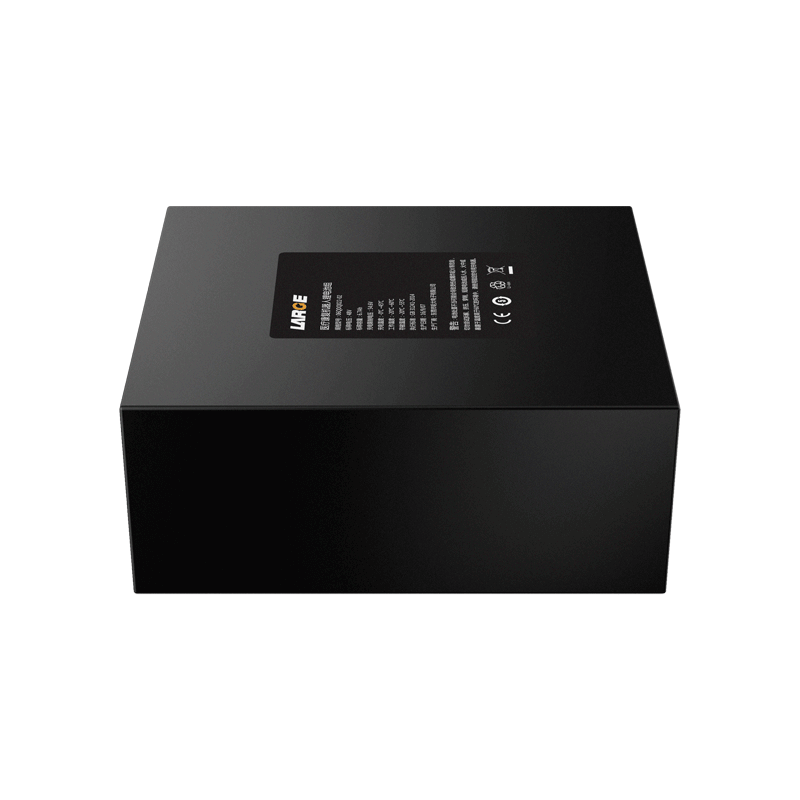

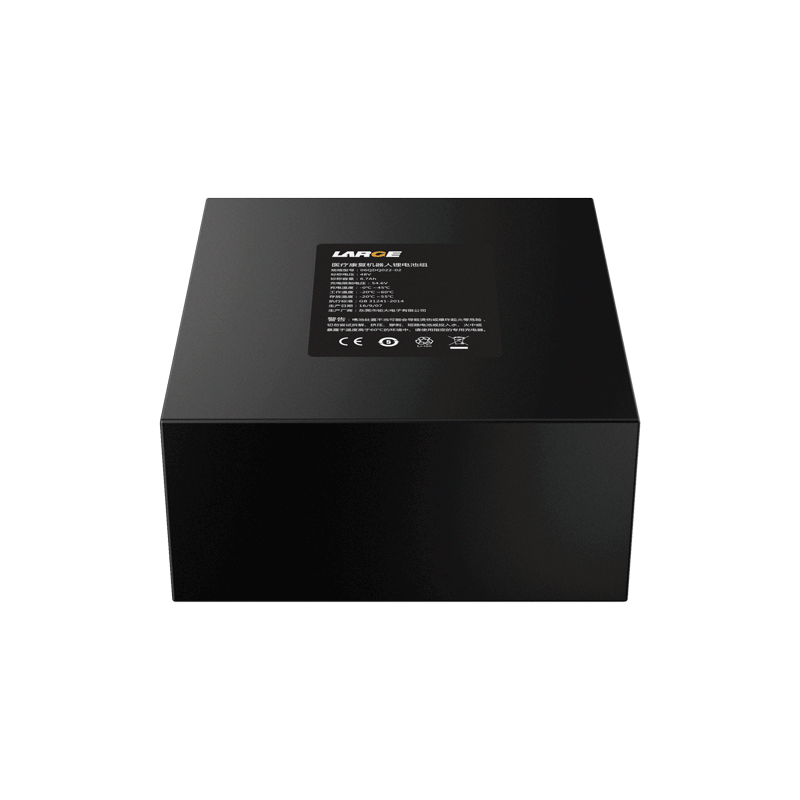

48V 10Ah 18650 Panasonic Battery Ternary Battery for Lower Limb Rehabilitation Training Robot

Product number: 06DQ022-01

Battery specification: 18650-13S3P/48V/10Ah

Nominal voltage：48V

Nominal capacity：10Ah

Charging voltage: 54.6V

Charging current: ≤5A

Discharging current: 10A

Instant discharging current: 15A

End-off voltage: 36.4V

Product dimension: 160*140*65mm（max）

Battery weight: about 2KG

Output line: 3135 AWG 18# line, exposed length 200+/-20mm

Operating temperature: 0~+45℃ (charging), -10~+60℃ (discharging)
