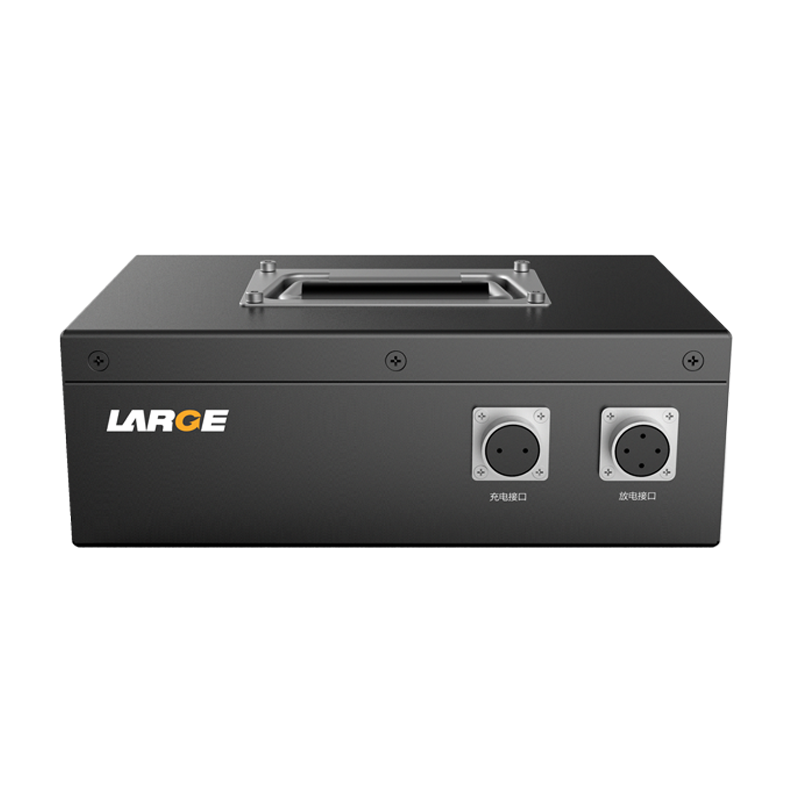

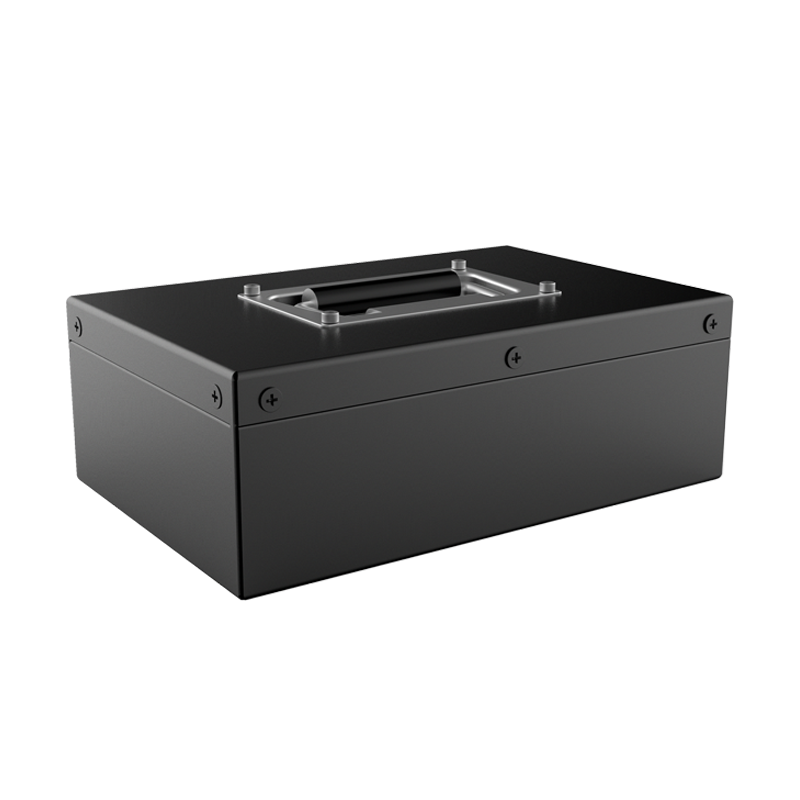

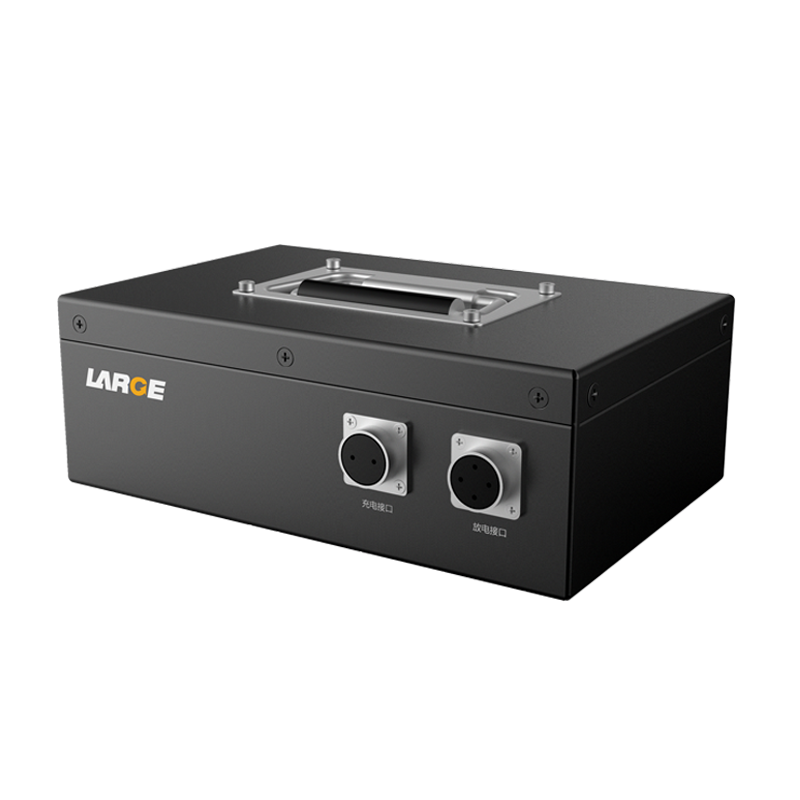

25.2V 30Ah 18650 Lithium Ion Battery Lishen Battery for Measure-control Device

Product number: 04EQ042-01

Cell model：18650/3.6V/2600mAh

Battery specification: 18650/7S12P/25.2V/30Ah

Nominal voltage：25.2V

Nominal capacity：30Ah

Charging voltage: 29.4V

Charging current: ≤6A

Discharging current: 10A

Instant discharging current: 15A

End-off voltage: 19.25V

Internal resistance: ≤150m?

Battery weight: 4.5kg

Product dimension: 260×170×90（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～40 ℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: equipment for measurement and control

Product features

1. Shock-resistant and waterproof: fill in the shock-resistant structure inside the cold rolling metal plate housing to satisfy the requirements of good security and high reliability.

2. Reliable connection: apply aviation connector, which is efficient, safe and reliable.

3. Charge automatically: charge automatically when the voltage decreases to 80%.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
