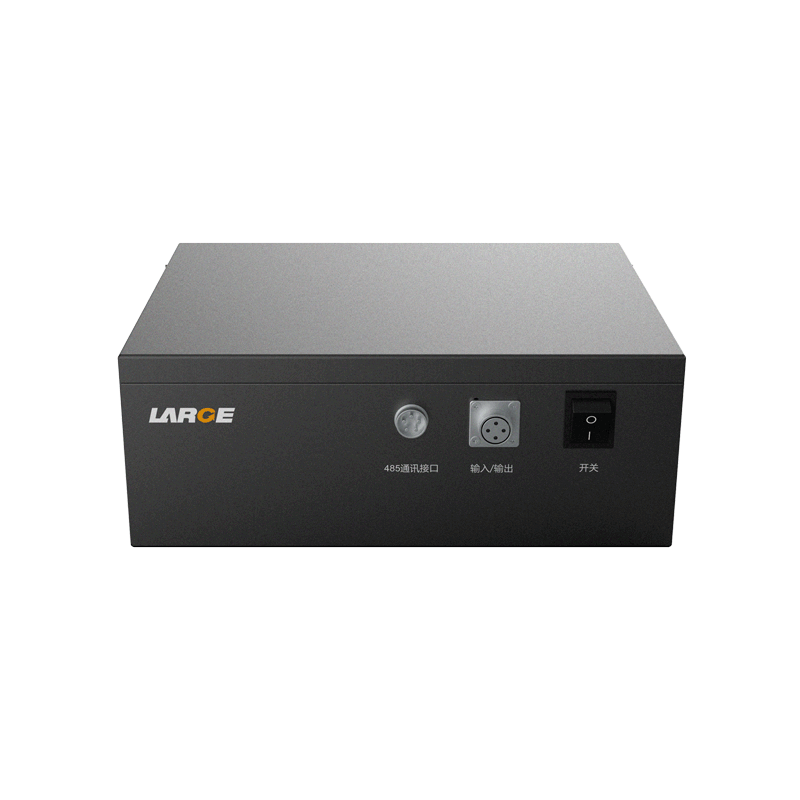

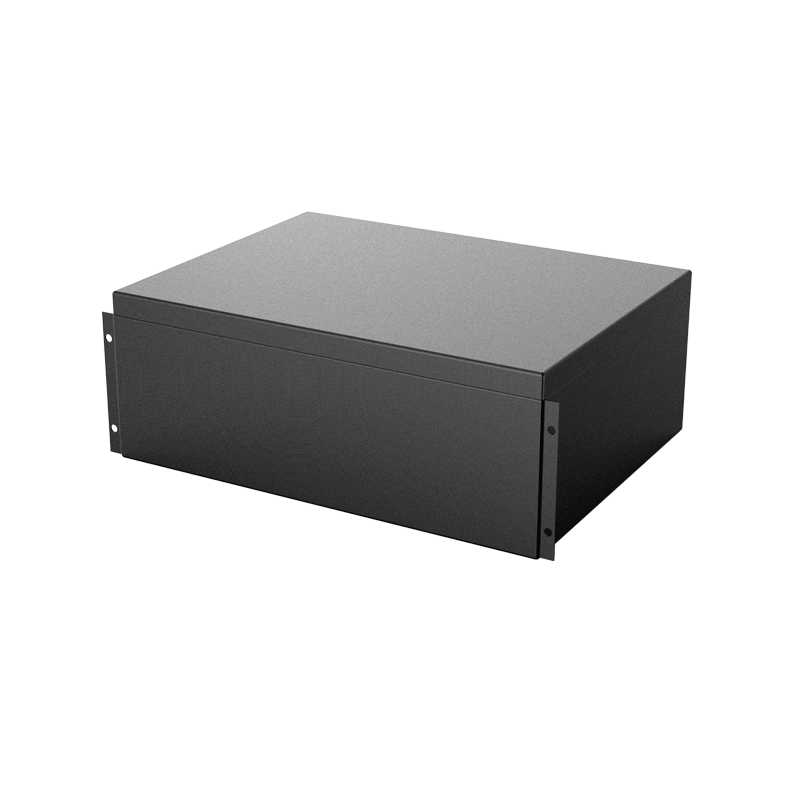

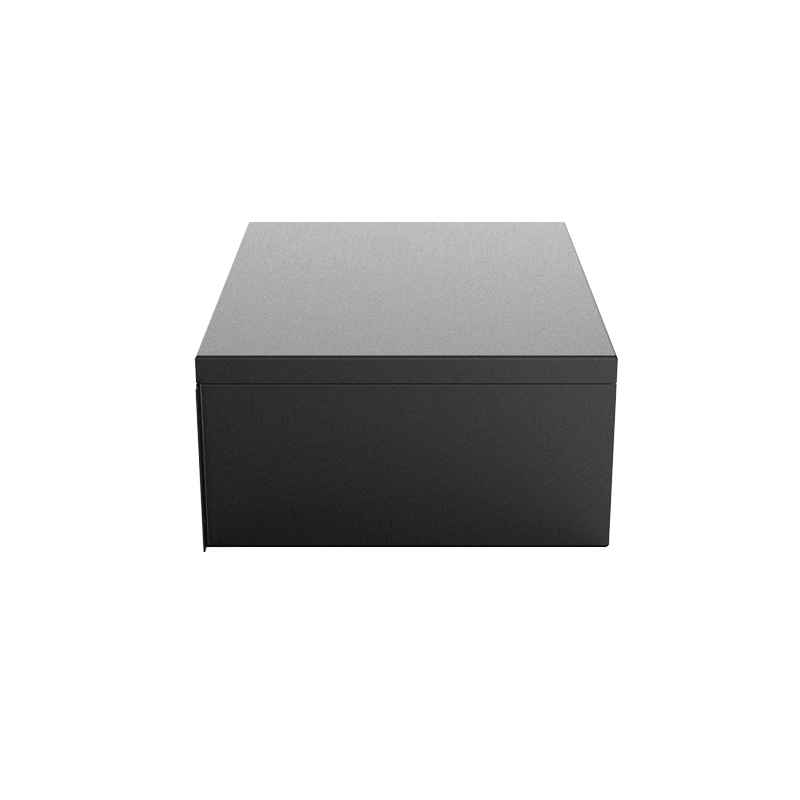

26650 12.8V 60Ah LiFePO4 Battery PLB Battery for Library Robot

26650 12.8V 60Ah LiFePO4 Battery PLB Battery for Library Robot
26650 12.8V 60Ah LiFePO4 Battery PLB Battery for Library Robot
26650 12.8V 60Ah LiFePO4 Battery PLB Battery for Library Robot
26650 12.8V 60Ah LiFePO4 Battery PLB Battery for Library Robot

Product Detail

Product number: 04EQ226-01

Cell model:26650/3.2V/3.5Ah

Battery specification: 26650/4S18P/12.8V/60Ah

Nominal voltage:12.8V

Nominal capacity:60Ah

Charging voltage: 14.6V

Charging current: ≤30A

Discharging current: 12A

Instant discharging current: 60A

End-off voltage: 10.8V

Internal resistance: ≤200mΩ

Battery weight: 7.6Kg

Product dimension: 290×220×110(Max)

Charging temperature:0~45℃

Discharging temperature: -20~50 ℃

Storage temperature: -20~40 ℃

Temperature protection: 65℃±5℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: medical device


Product features

Shockproof: fill in the inside cold rolling metal plate housing by shockproof structure design, which meets the requirements of good security and nice reliability.

Salt spray proofing: spray powder on the surface to avoid salt spray mold and be suitable to marine working environment.

Data communication management: adopt software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
