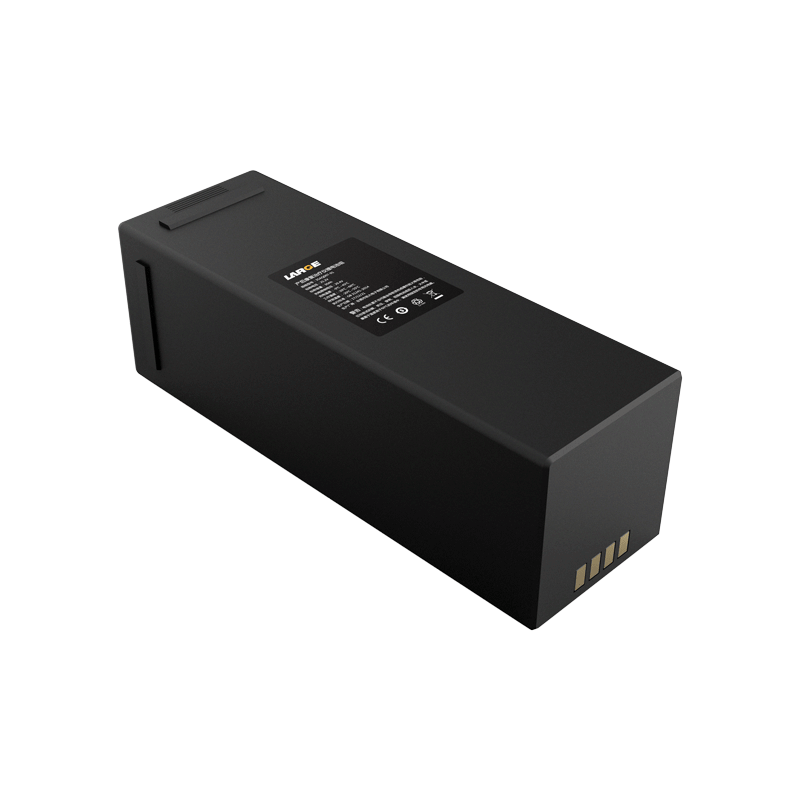

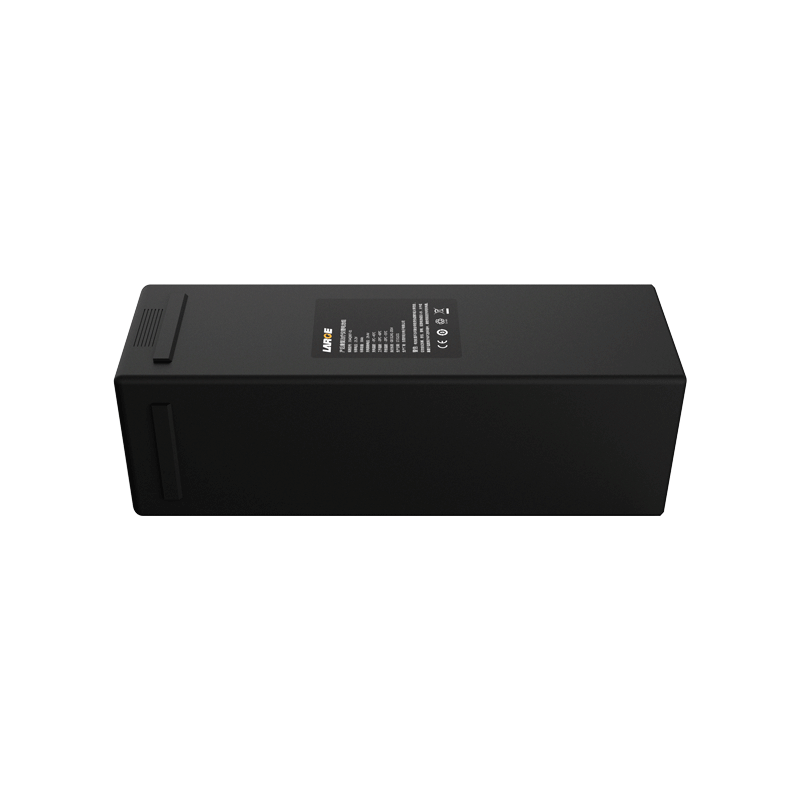

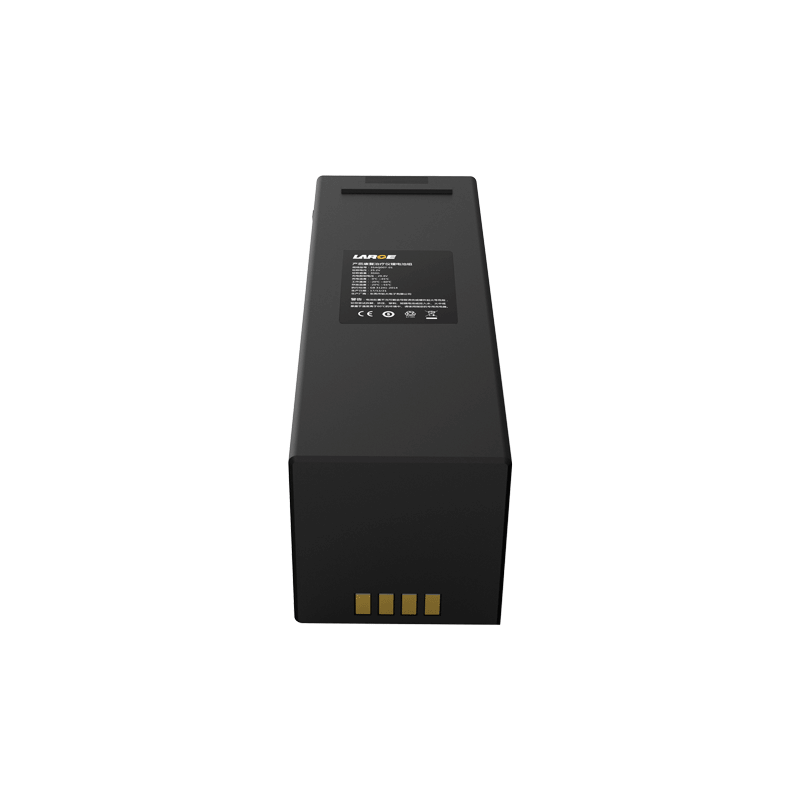

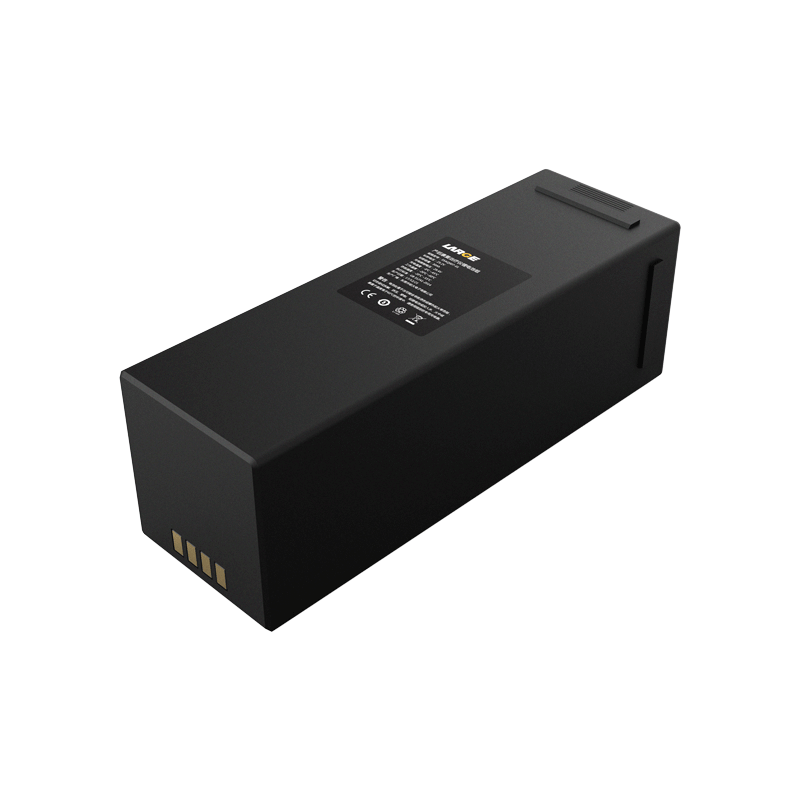

25.2V 3300mAh 18650 Lithium Ion Battery Panasonic Battery for Rehabilitation Treatment for Post-natal

Product number: 35AQ007-01

Cell model：18650/3.6V/3350mAh

Battery specification: 18650/7S1P/25.2V/3300mAh

Nominal voltage：25.2V

Nominal capacity：3300mAh

Charging voltage: 29.4V

Charging current: ≤1.5A

Discharging current: 1A

Instant discharging current: 3A

End-off voltage: 19.6V

Internal resistance: ≤200mΩ

Battery weight: 500g

Product dimension: 151×49×49mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～50℃

Storage temperature: -20～40℃

Battery case: PC/CNC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: medical device, medical device of postpartum recovery

Product features

1. Shock-resistant: fill in the shock-resistant structure inside with high-intensity PC flameproof enclosure to satisfy the requirements of good security and high reliability.

2. Large current connector: adopt edge connector, which is safe and reliable.

3. Communication interface: have RS485 communication protocol and can read the information of battery voltage, current, temperature, capacity, etc.

4. Data communication management: adopt software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

5. Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
