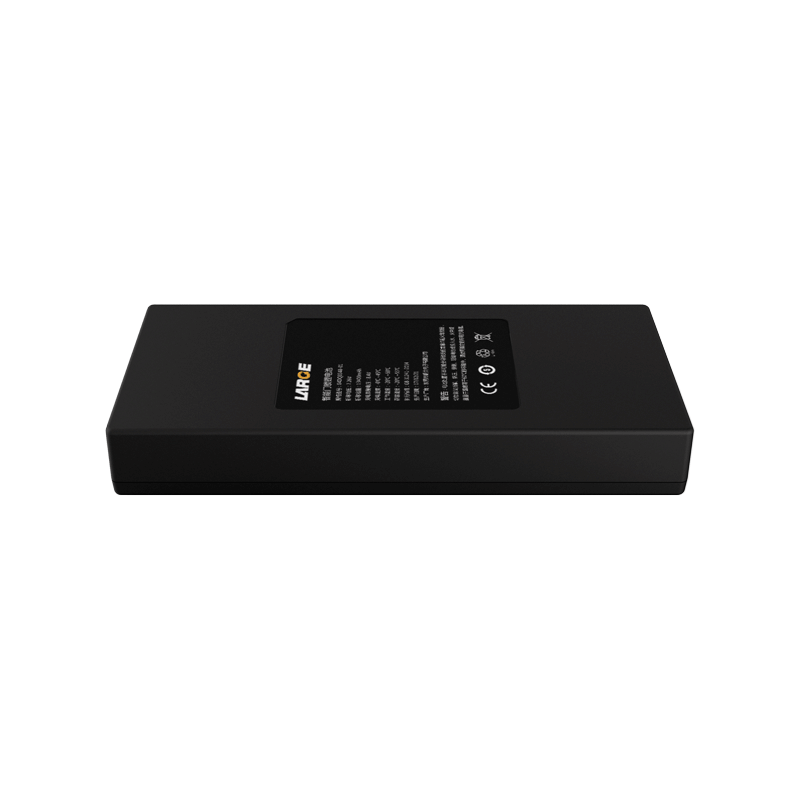

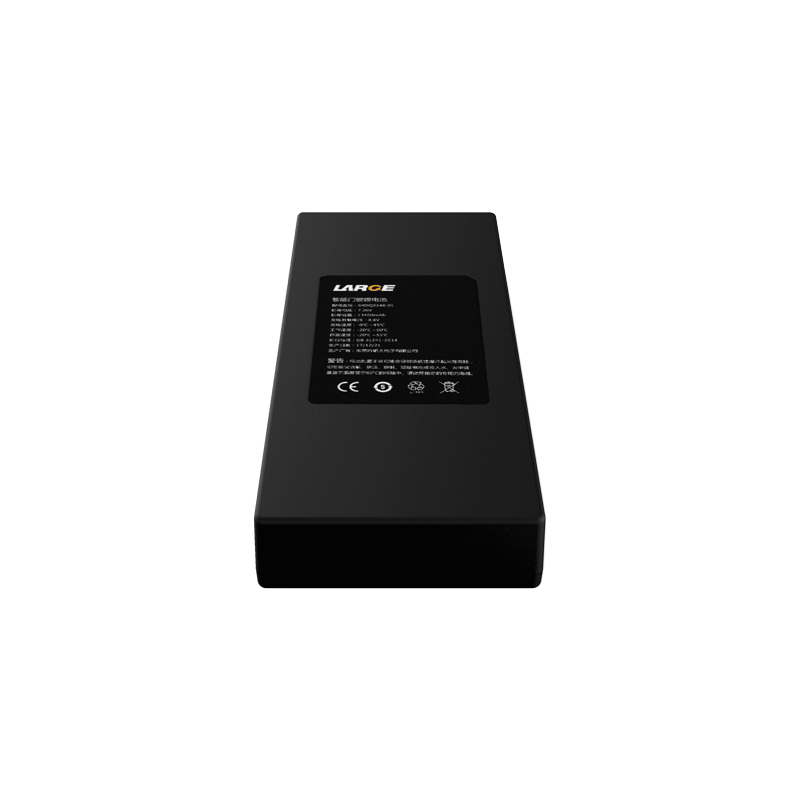

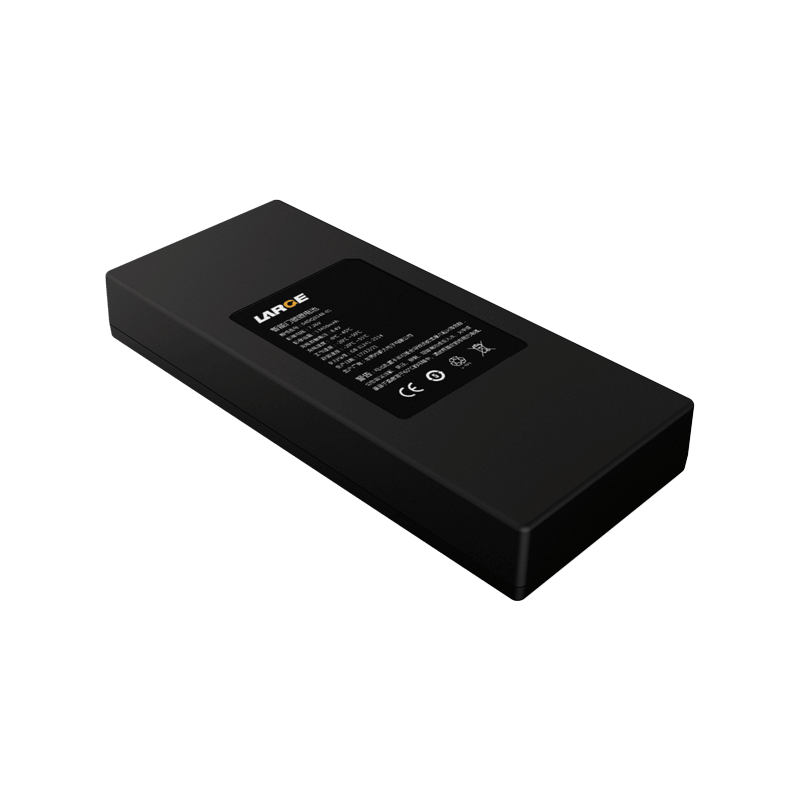

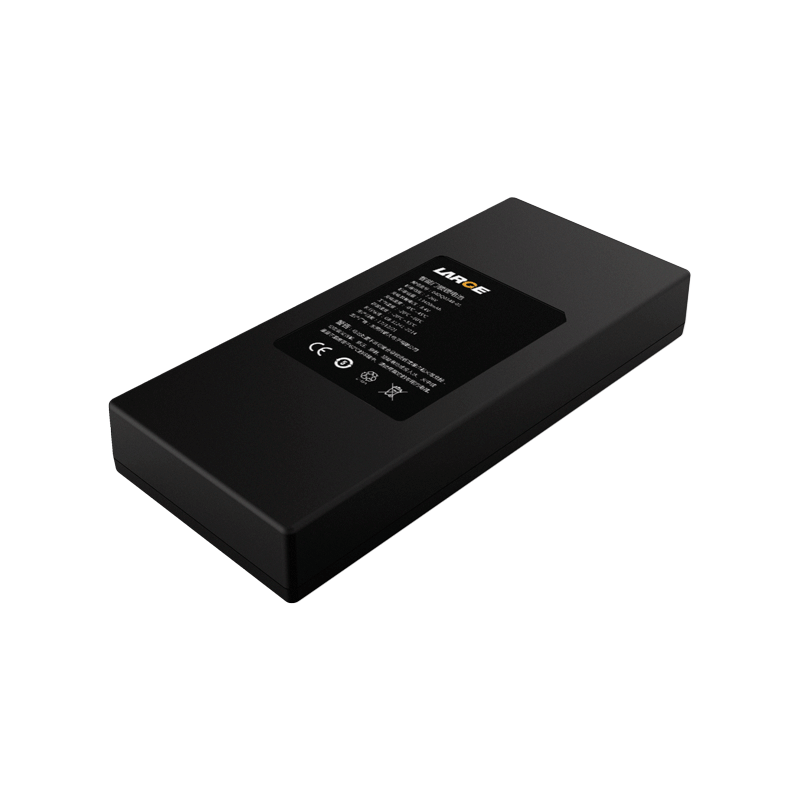

7.26V 13400mAh 18650 Lithium Ion Battery Samsung Battery for Intelligent Door Lock

Product number: 04DQ0348-01

Cell model：18650/3350mAh/3.63V

Battery specification: 18650/2S4P/13400mAh/7.26V (plastic housing)

Nominal voltage：7.26V

Nominal capacity：13400mAh

Charging voltage: 8.4V

Charging current: ≤5000mA

Discharging current: ≤6000mA

End-off voltage: 5.0V

Internal resistance: ≤200mΩ

Battery weight: about 430g

Product dimension: (164*71.6*23.1)±0.2mm

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35 ℃

Battery case: plastic housing

Lithium ion battery protection: overcharge protection, over-discharge protection and overcurrent protection, short circuit protection, etc.

Application field: intelligent door lock
