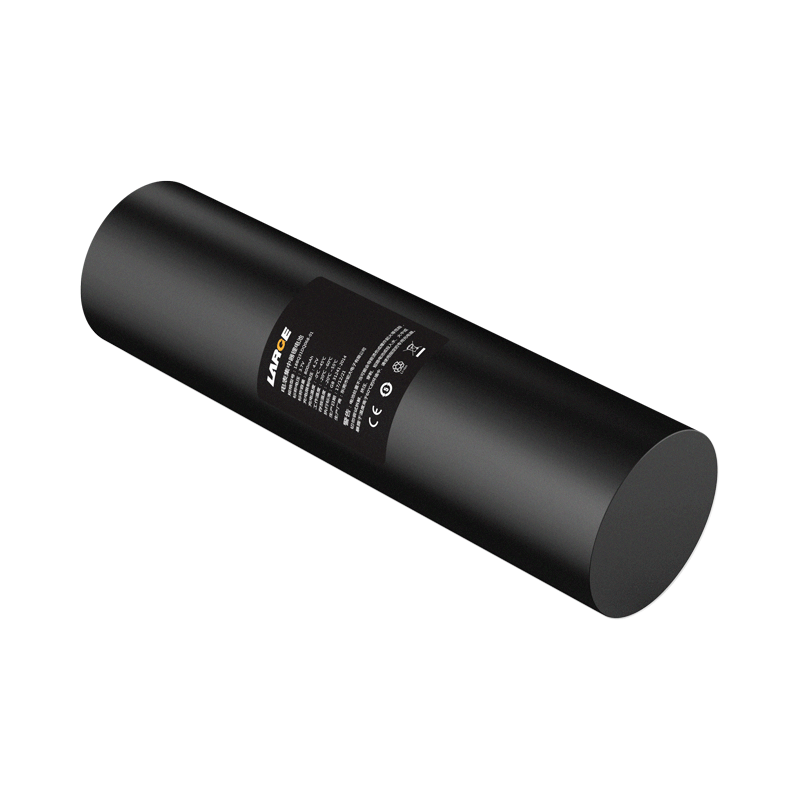

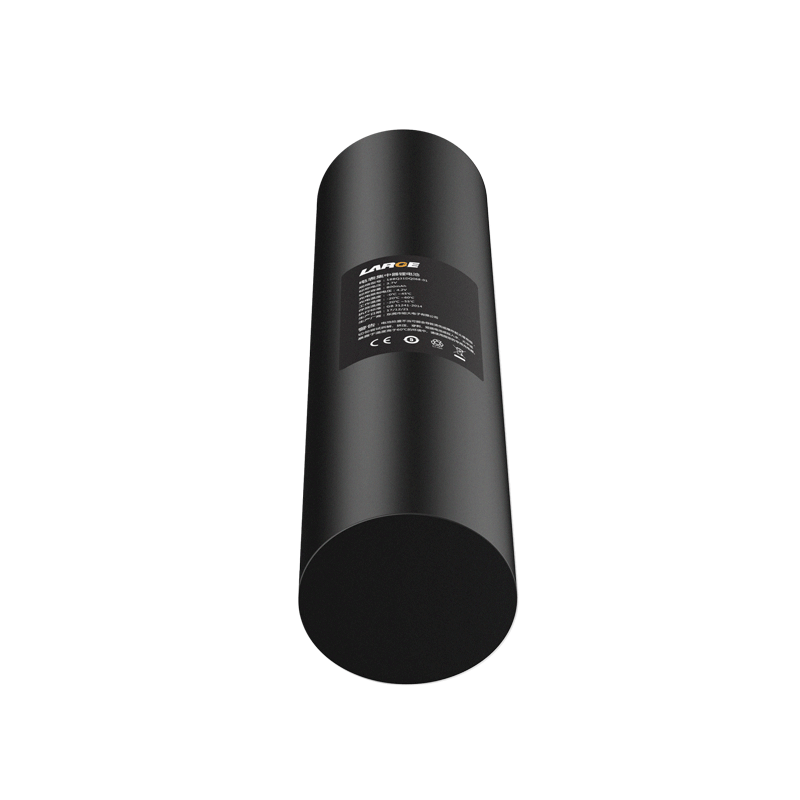

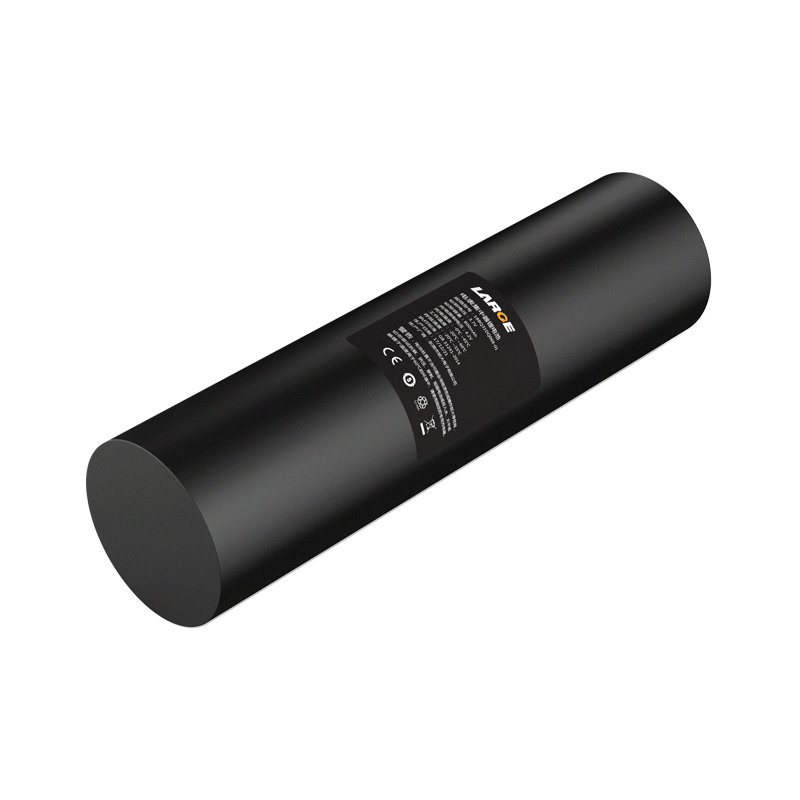

14500 3.7V 800mAh Lithium Ion Battery for Meter Concentrator

Product number: 18BQ31DQ068-01

Cell model：14500/3.7V/800mAh

Battery specification: 14500-1S1P/3.7V/800mAh

Nominal voltage：3.7V

Nominal capacity：800mAh

Charging voltage: 4.2V

Charging current: ≤500mA

Discharging current: 500mA

Instant discharging current: 1.0A

End-off voltage: 3.0V

Internal resistance: ≤180mΩ

Battery weight: 50kg

Product dimension: 50.5*17.2*15mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35 ℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application: meter concentrator, testing instrument, etc.
