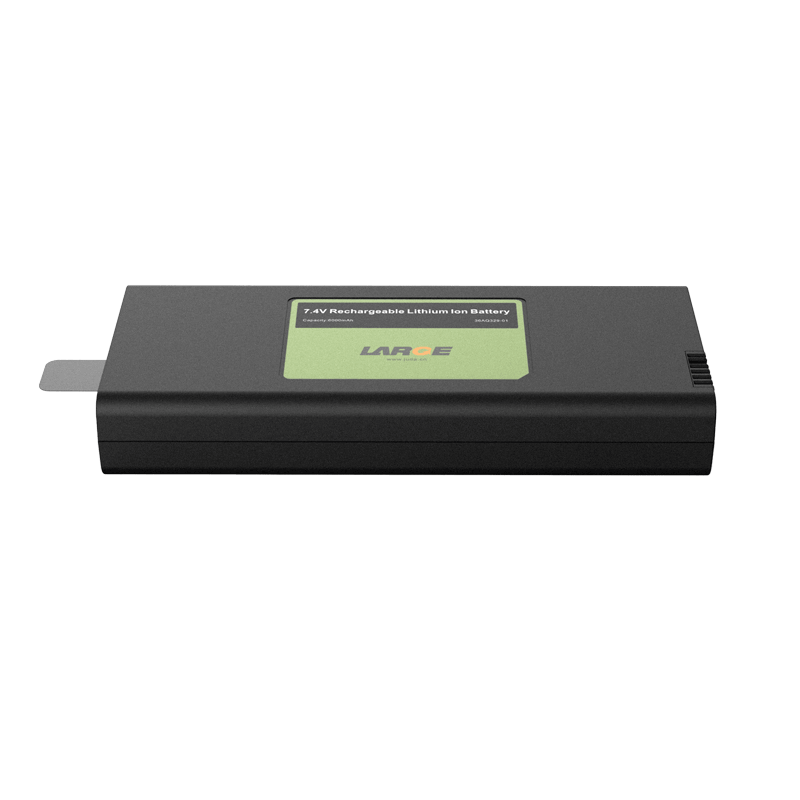

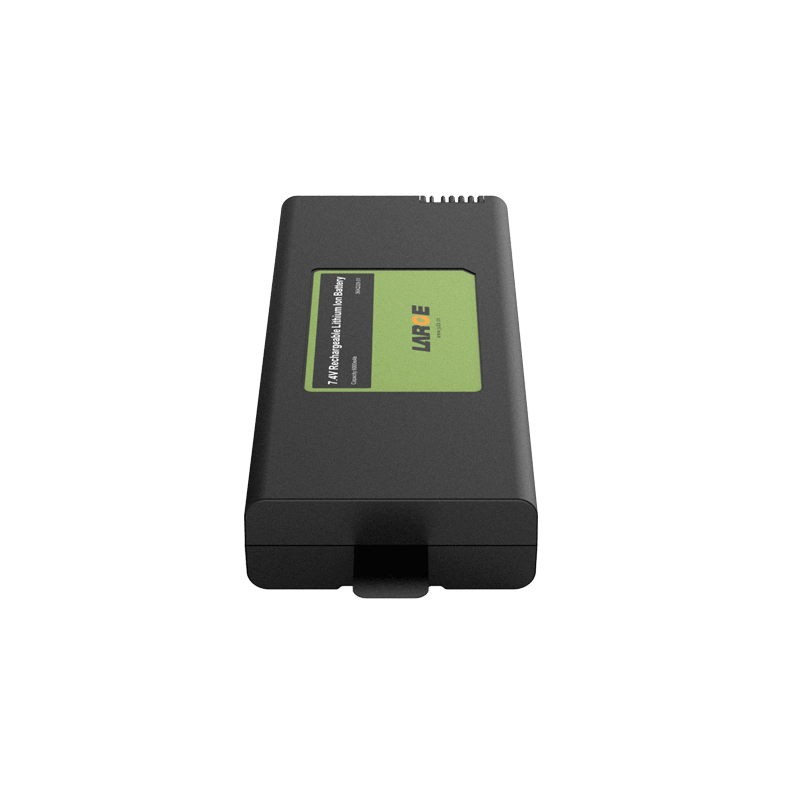

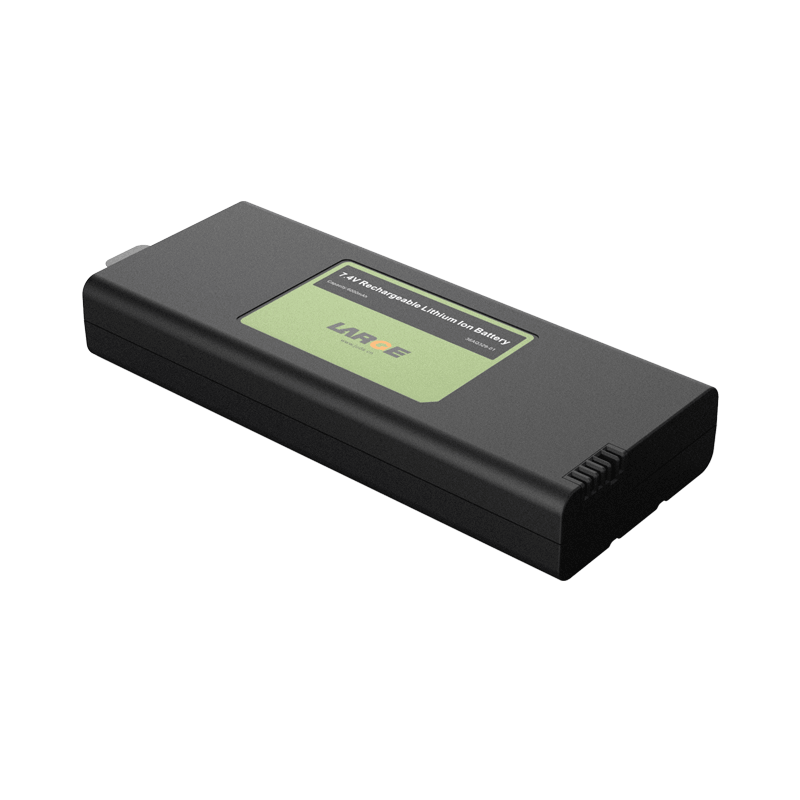

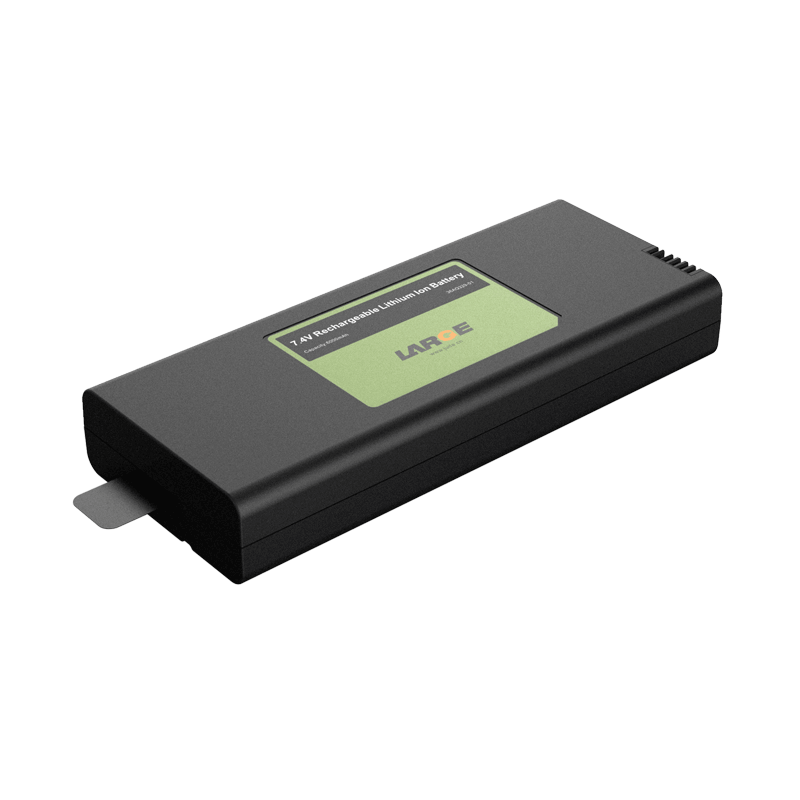

18650 7.4V 6000mAh Low Temperature Battery for Navigation Terminal

Product number: 36AQ329-01

Cell model：18650-2200mAh-3.7V

Battery specification: 18650-2S3P-6000mAh-7.4V

Product dimension: 144*59.8*22.5mm（Max）

Nominal voltage：7.4V

Nominal capacity：6000mAh

Charging voltage: 8.4V

Charging current: ≤3A

Discharging current: 1.2A

Instant discharging current: 3A

End-off voltage: 5.0V

Internal resistance: ≤180mΩ

Battery weight: 350g

Charging temperature：0～45℃

Discharging temperature: -40～60 ℃

Storage temperature: -20～35℃

Battery case: ABS+PC case

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, over temperature protection, overcurrent protection, ESD protection, etc.

Application field: special apparatus, navigation equipment, low temperature discharge equipment

Product features

1. ABS+PC case increase the reliability and immobility of battery.

2. Connector plug outlet: adopt gold plating shrapnel output mode to increase conductive reliability.

3. Battery communication management: Use TI-SMBus software management chip, SMBus communication accurate data transmit and precise temperature control to maximize the elimination of security risks.

4.Discharge at low temperature -40℃.

5. The battery pack has good safety performance, nice discharge performance and long cycle life.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
