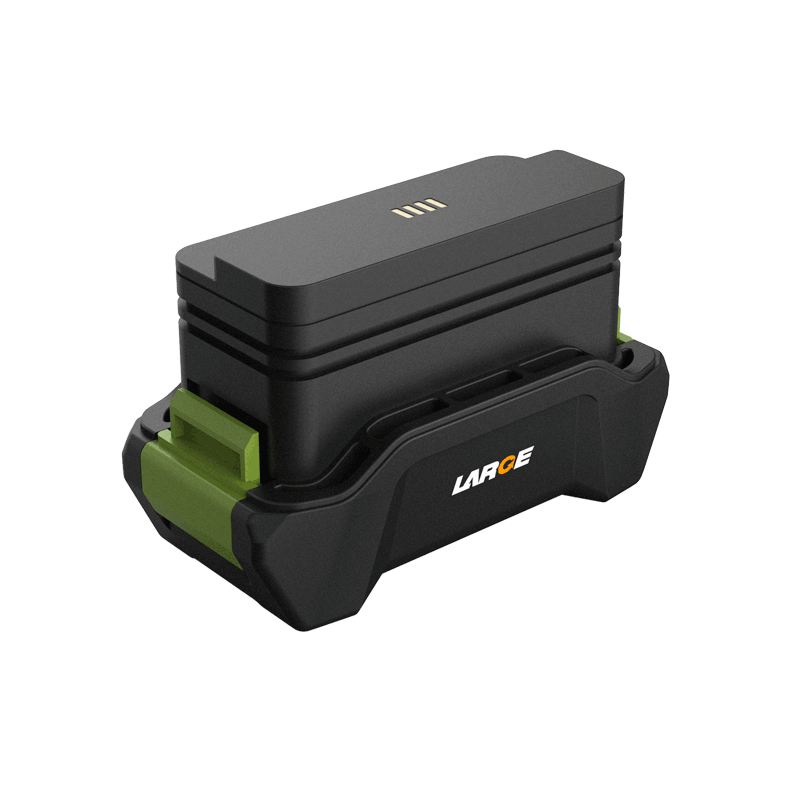

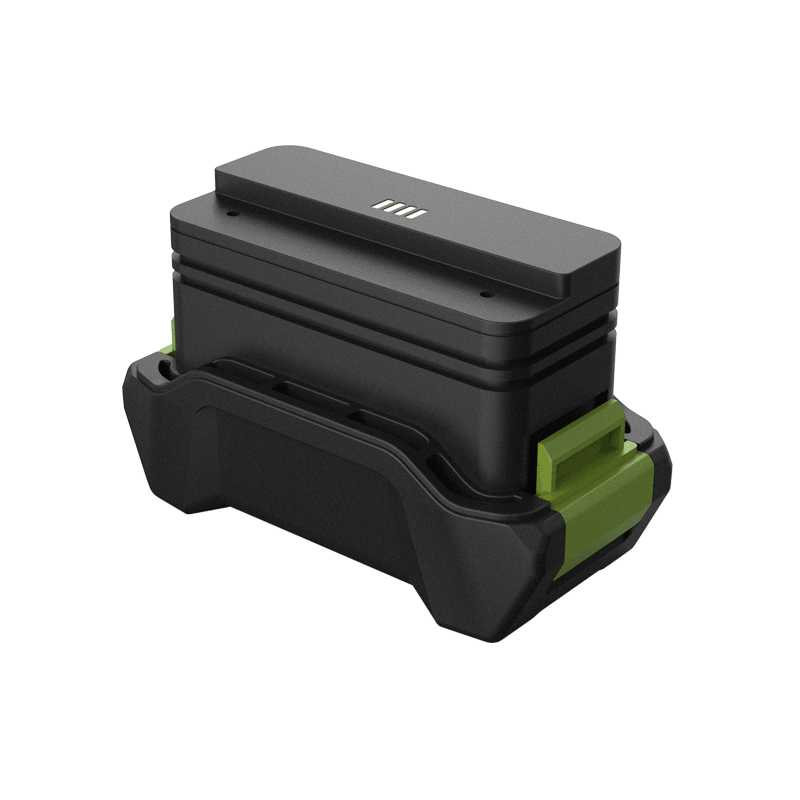

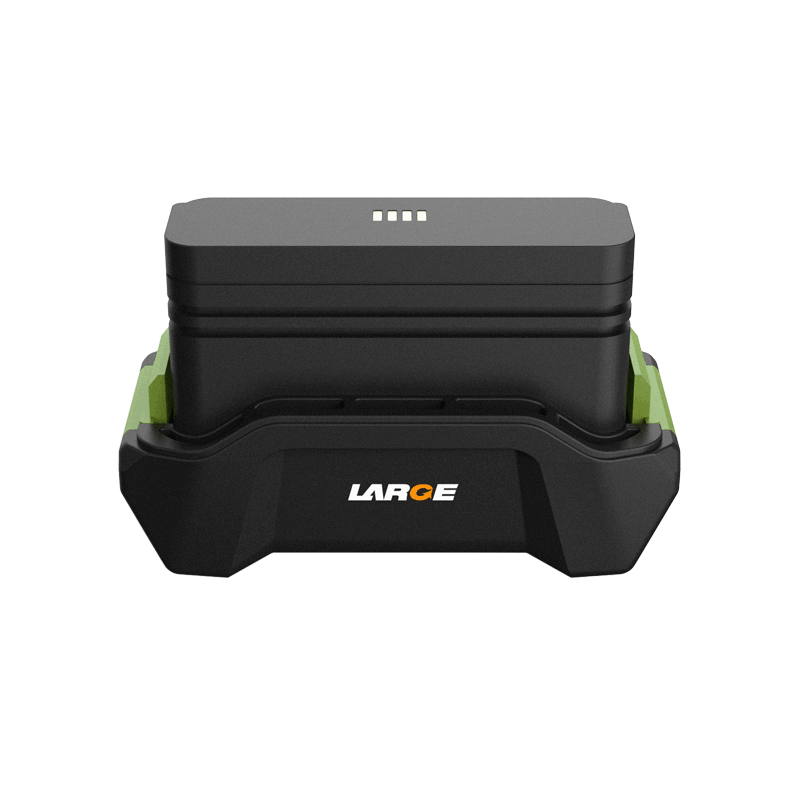

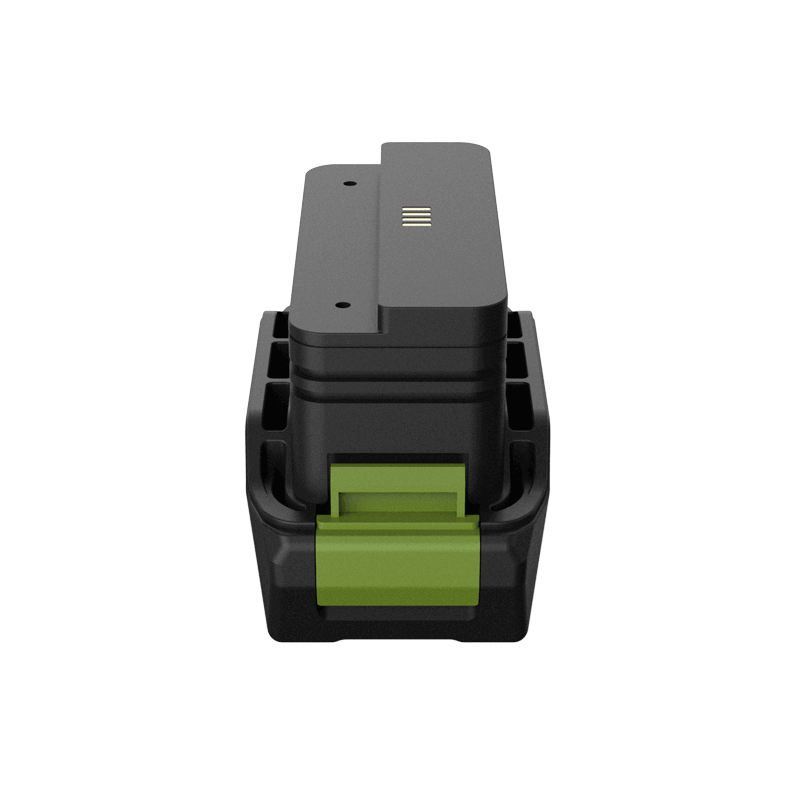

3.6V 3800mAh Lithium Ion Battery Explosion-proof Battery for Man-pack Fire Fighting Helmet

Product number: 35AQ658-01

Cell model：LA105634EX/1900mAh/3.6V

Battery specification: LA105634EX-2P/3800mAh/3.6V

Nominal voltage：3.6V

Nominal capacity：3800mAh

Charging voltage: 4.2V

Charging current: 760mA（0~+20℃）

Discharging current: 1900mA（-10~+55℃）

End-off voltage: 3.0V

Internal resistance: ≤180mΩ

Battery weight: 100g

Product dimension: 63.9*28.9*49.5mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -10～45℃ less than one month

Battery case: ABS+PC case

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: man-pack handheld equipment
