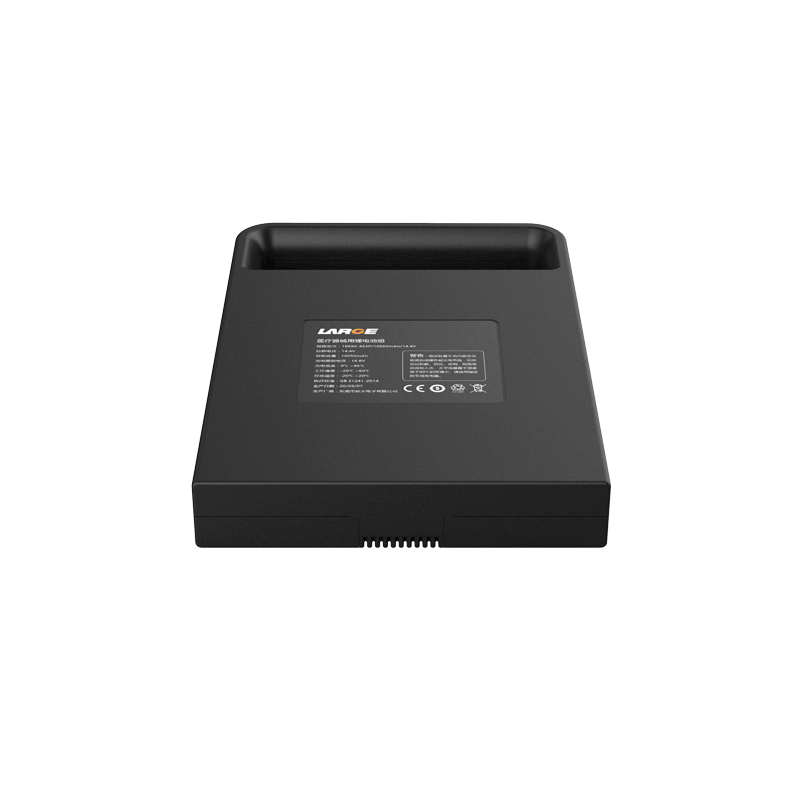

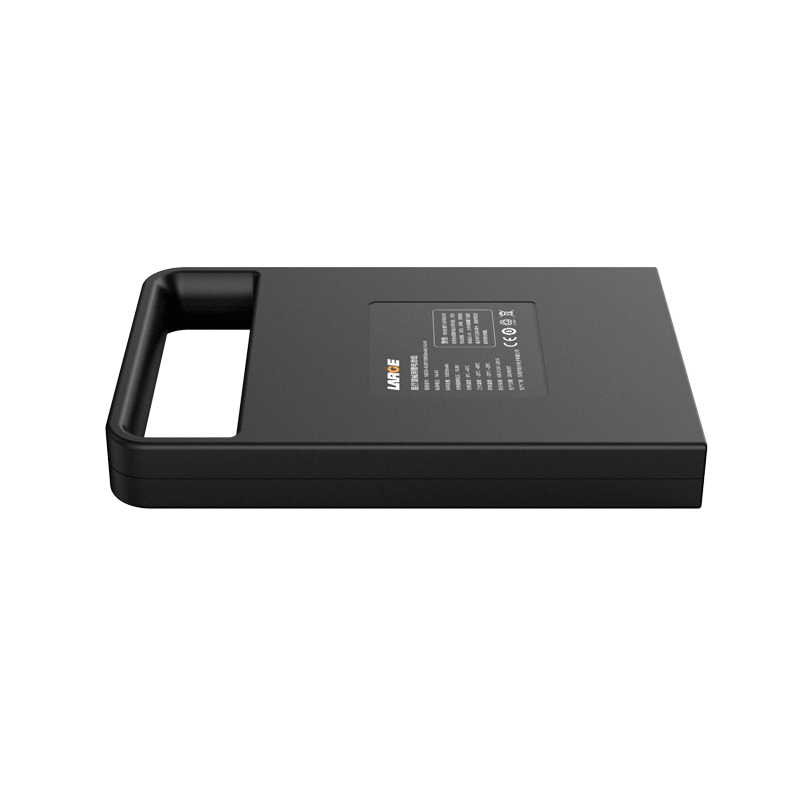

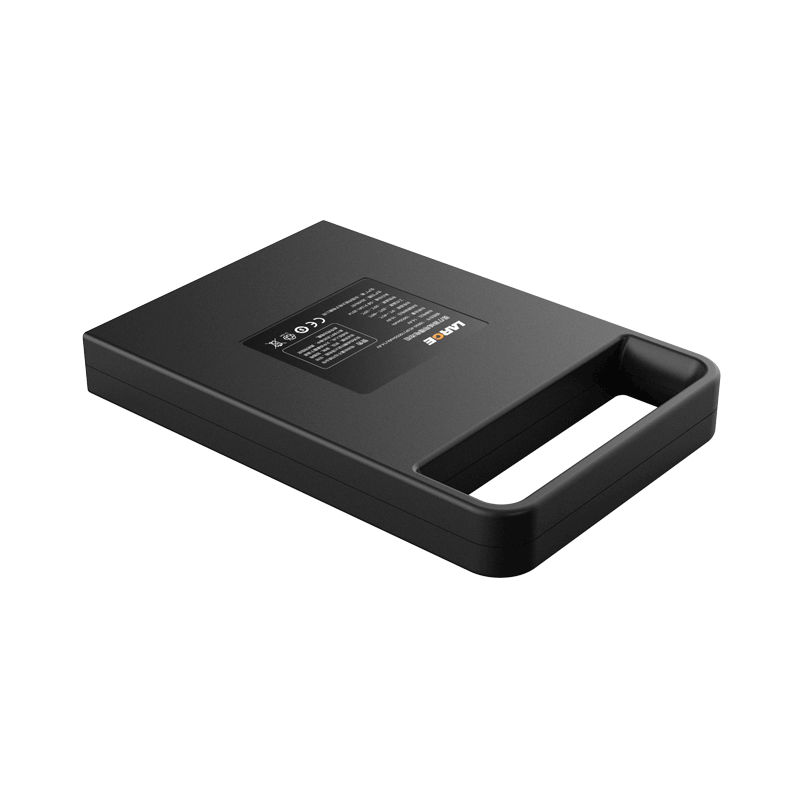

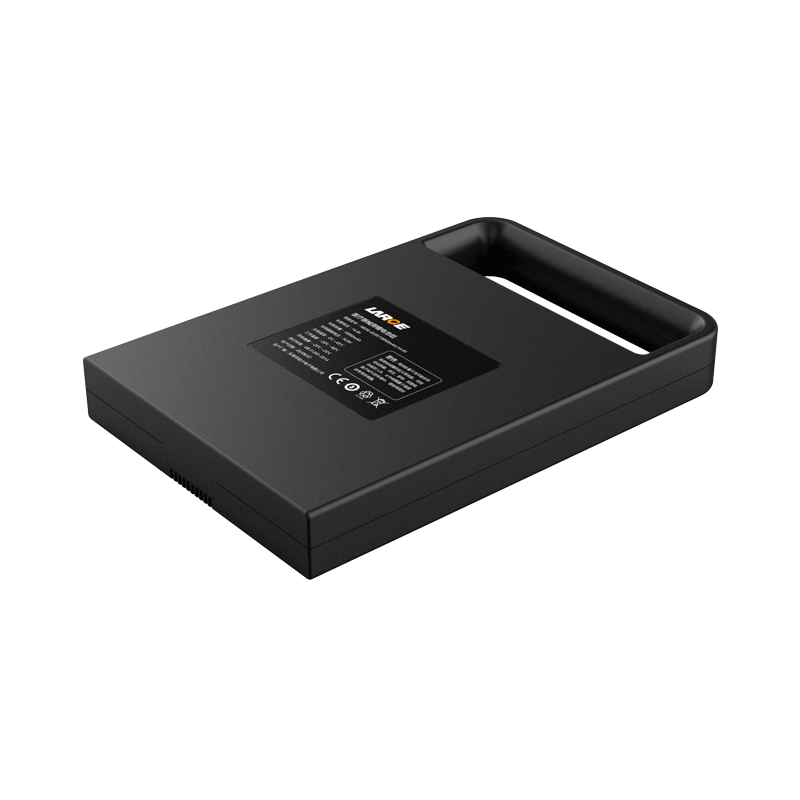

18650 14.4V 10050mAh Samsung Battery for Medical Equipment with SMBUS Communication Protocol

Product number: 36AQ414-01
Cell model：18650/3.6V/3350mAh(Samsung)
Battery specification: 18650-4S3P/10050mAh/14.4V
Nominal voltage：14.4V
Nominal capacity：10050mAh
Charging voltage: 16.8V
Charging current: ≤4A
Discharging current: 2A
Instant discharging current: 13A,3~4S
End-off voltage: 11.2V
Internal resistance: ≤120mΩ
Battery weight: 700g
Product dimension: 192.6*130*25mm
Charging temperature：0～45℃
Discharging temperature: -20～60 ℃
Storage temperature: -20℃～+20℃(≤12 months)
Battery case: ABS+PC
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection + SMBUS communication protocol
Application field: medical equipment, industrial instrumentation
