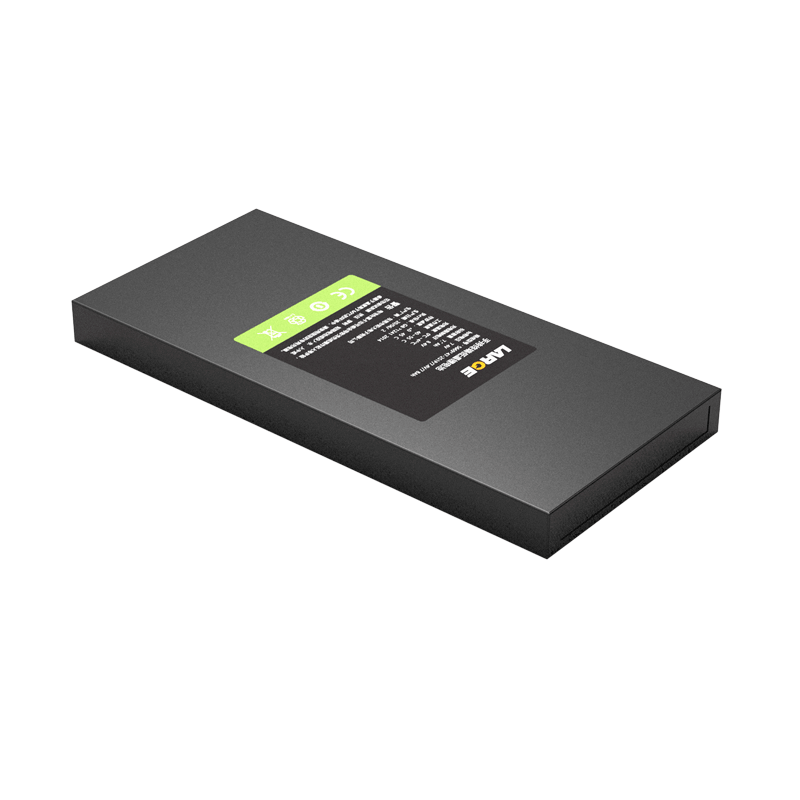

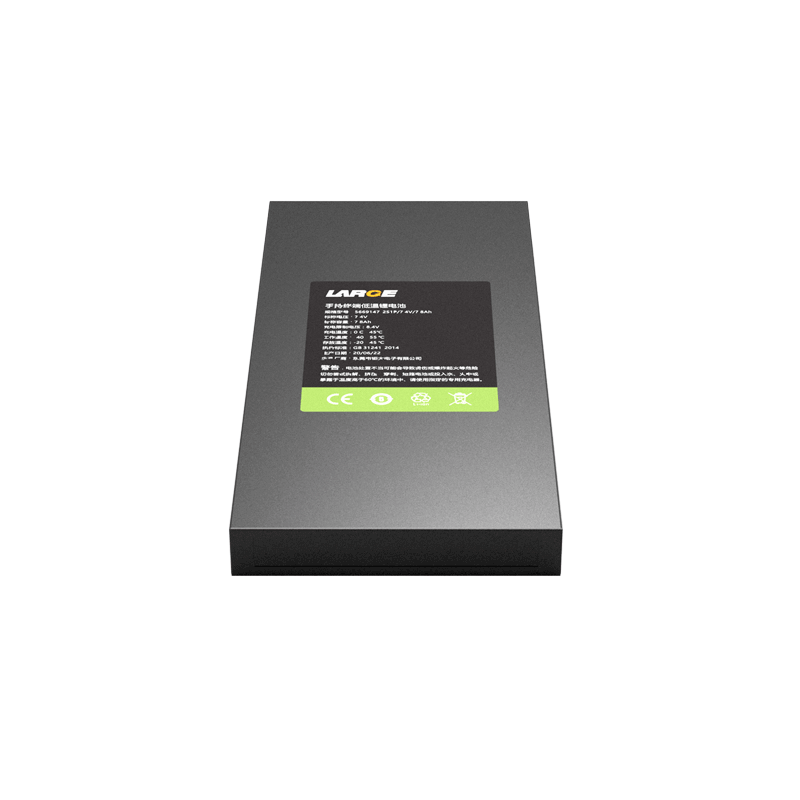

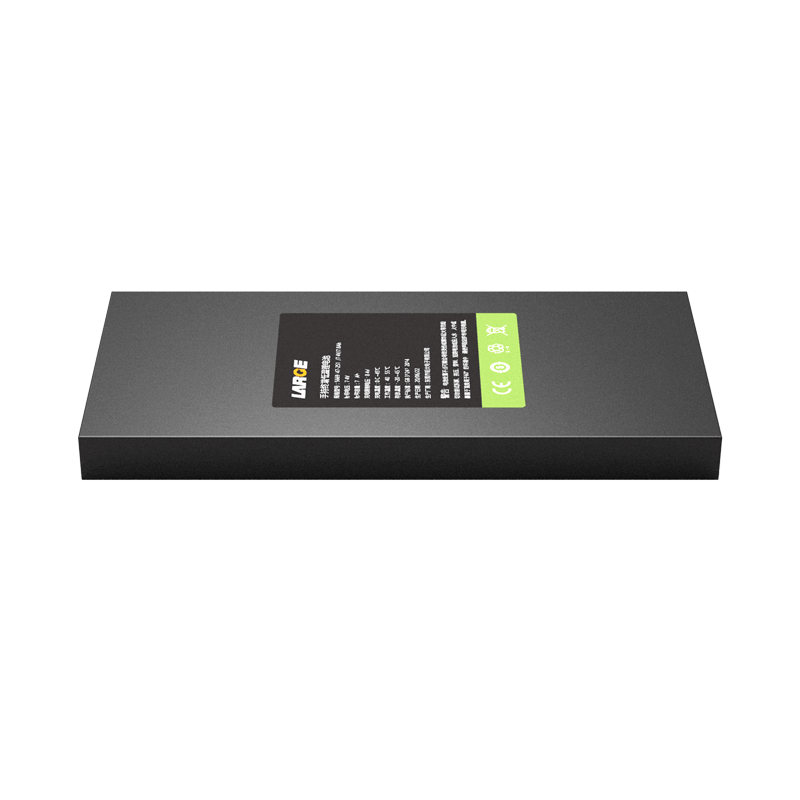

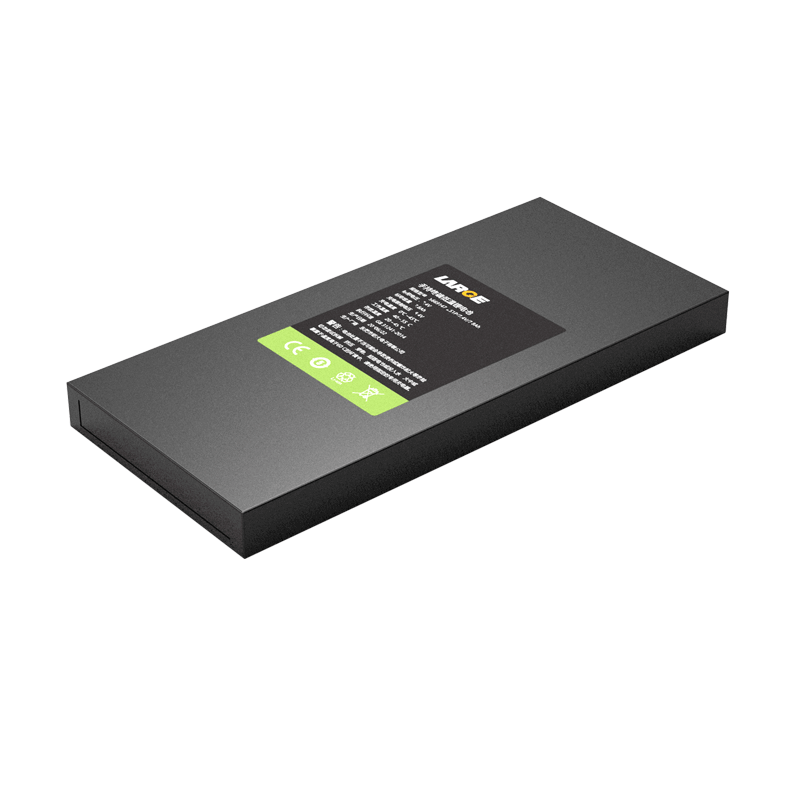

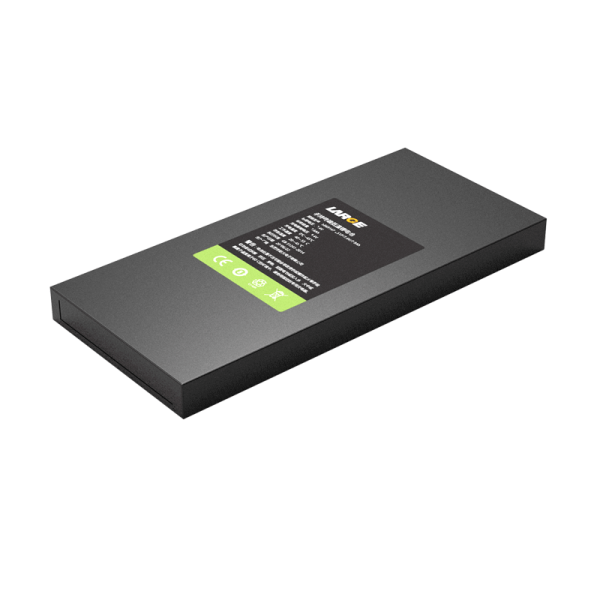

7.4V 7800mAh Low Temperature Battery for Handheld Terminal

Product number: 36DZ007-06

Cell model：5669147/3.7V/7.8Ah

Battery specification: 2S1P/7.4V/7.8Ah

Nominal voltage：7.4V

Nominal capacity：7.8Ah

Charging voltage: 8.4V

Charging current: ≤3.9A

Discharging current: 3.9A

Instant discharging current: 4-10A

End-off voltage: 5V

Internal resistance: ≤200mΩ

Battery weight: 300g

Product dimension: 12.5*70*152mm（Max）

Charging temperature：0～45℃

Discharging temperature: -40～55℃

Storage temperature: -20～45℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: handheld terminal

Product features

1. Wide range discharge: -40~55℃

2. Small self-discharge

3. The battery pack has good security and long cycle life.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
