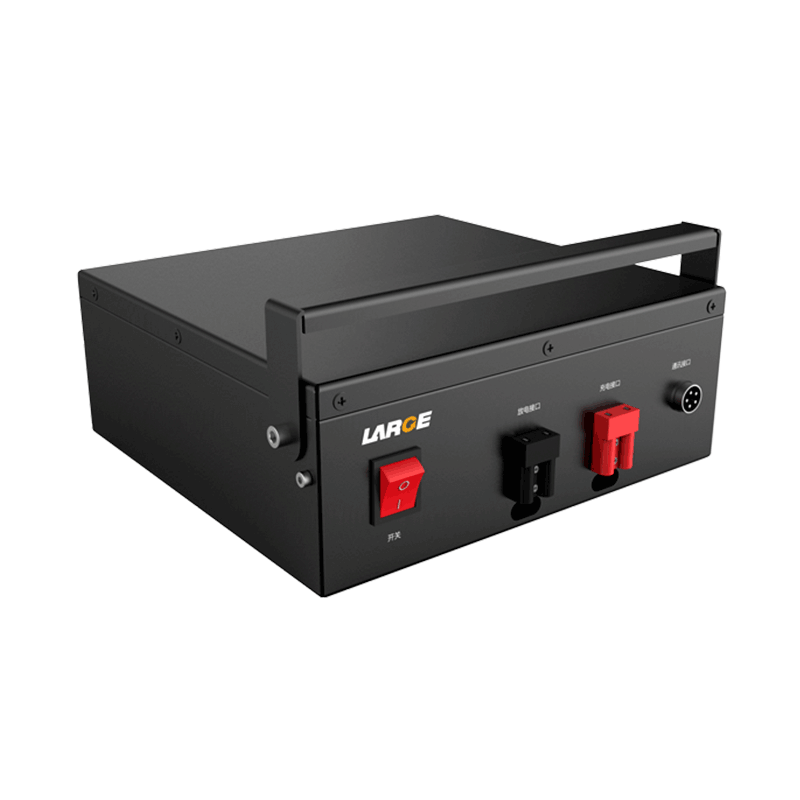

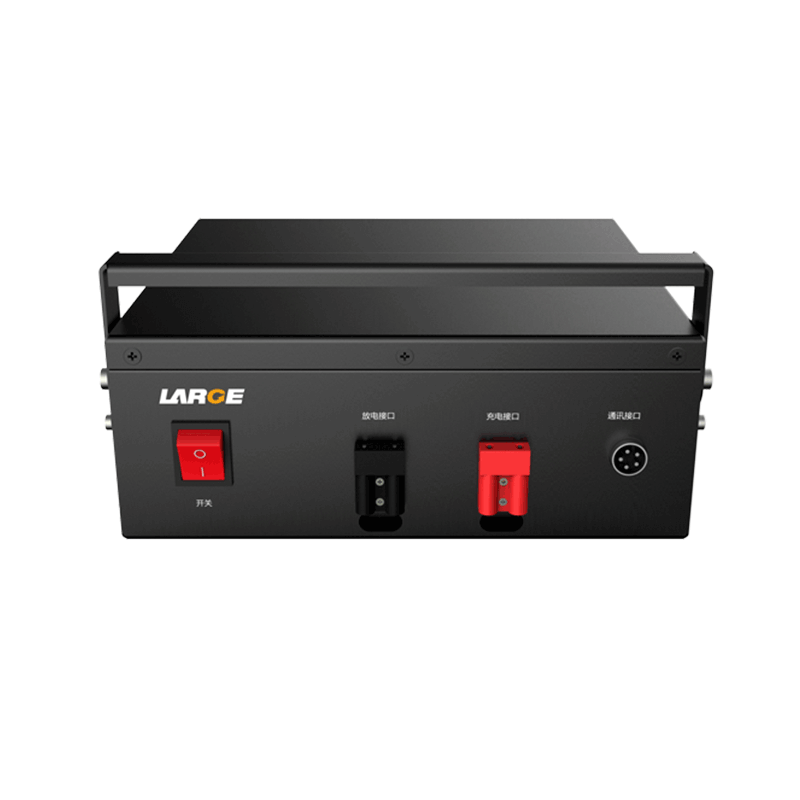

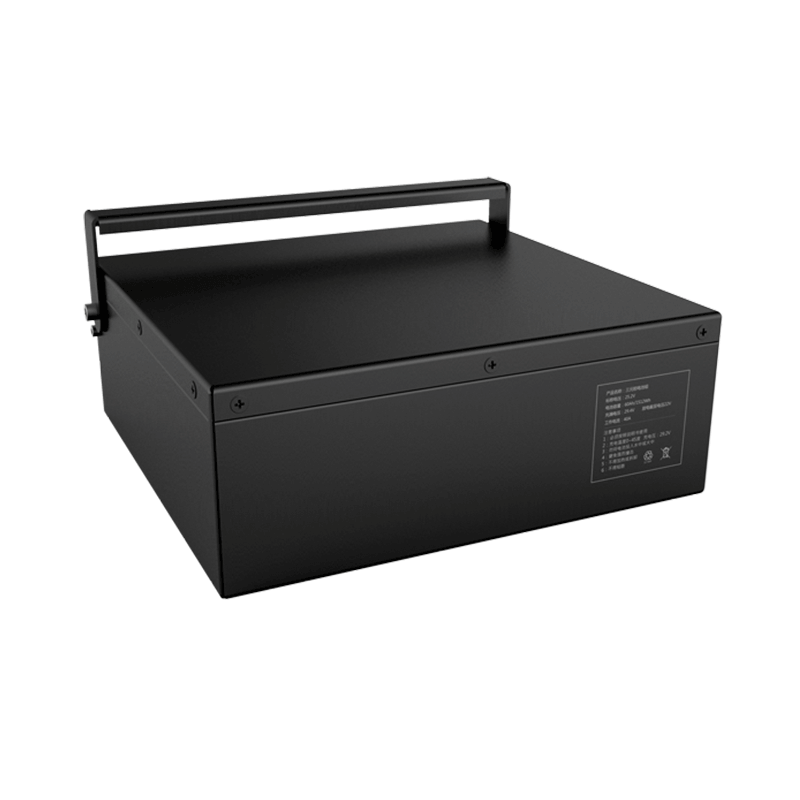

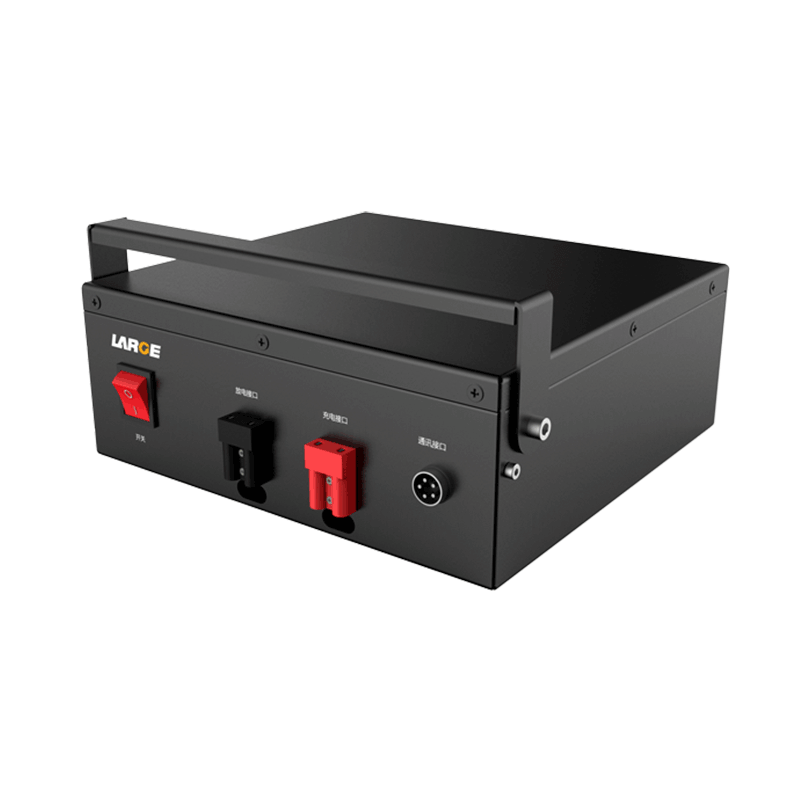

18650 25.2V 60Ah Lithium Power Battery LG Battery for Service Robot with RS485 Communication Port

Product number: 04EQ029-06

Cell model：18650/3.6V/3.35Ah

Battery specification: 18650/7S18P/25.2V/60Ah

Nominal voltage：25.2V

Nominal capacity：60Ah

Charging voltage: 29.4V

Charging current: ≤15A

Discharging current: 40A

Instant discharging current: 100A

End-off voltage: 19.6V

Internal resistance: ≤200m?

Battery weight: 7.5kg

Product dimension: 265×250×100（Max）

Charging temperature：0～45℃

Discharging temperature: -20～50 ℃

Storage temperature: -20～40 ℃

Temperature protection: 65℃±5℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection and temperature protection

Application field: robot, AGV, RGV.

Product features

1. Shock-resistant: fill in the shock-resistant structure inside the cold rolling metal plate housing to satisfy the requirements of good security and high reliability.

2. Large current connector: apply Anderson large current connector, which is safe and reliable.

3. Communication interface: have RS485 communication protocol and can read the information of battery voltage, current, temperature, capacity, etc.

4. Data communication management: adopt software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

5. Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
