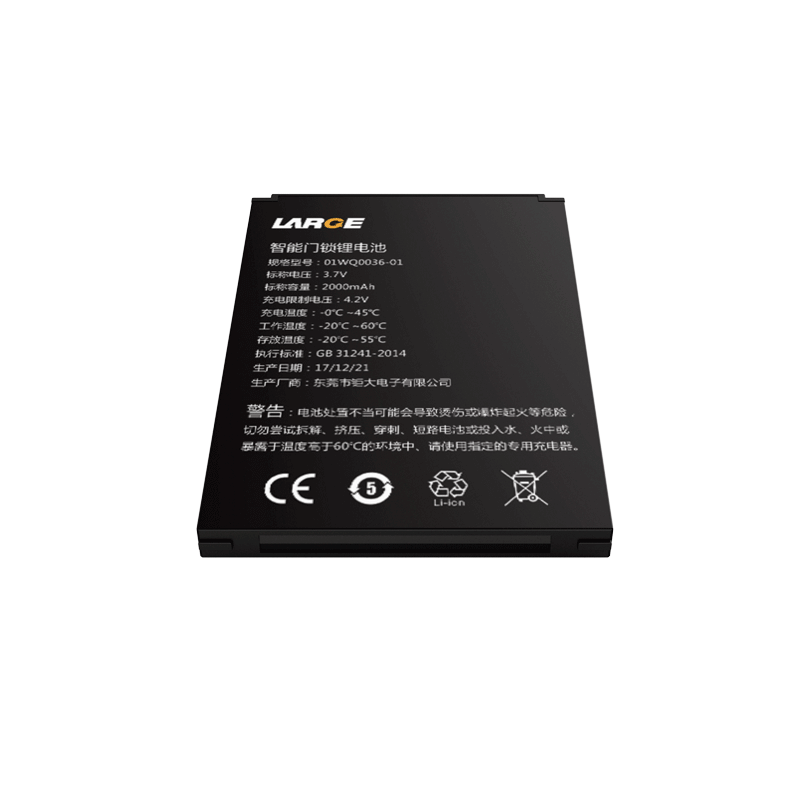

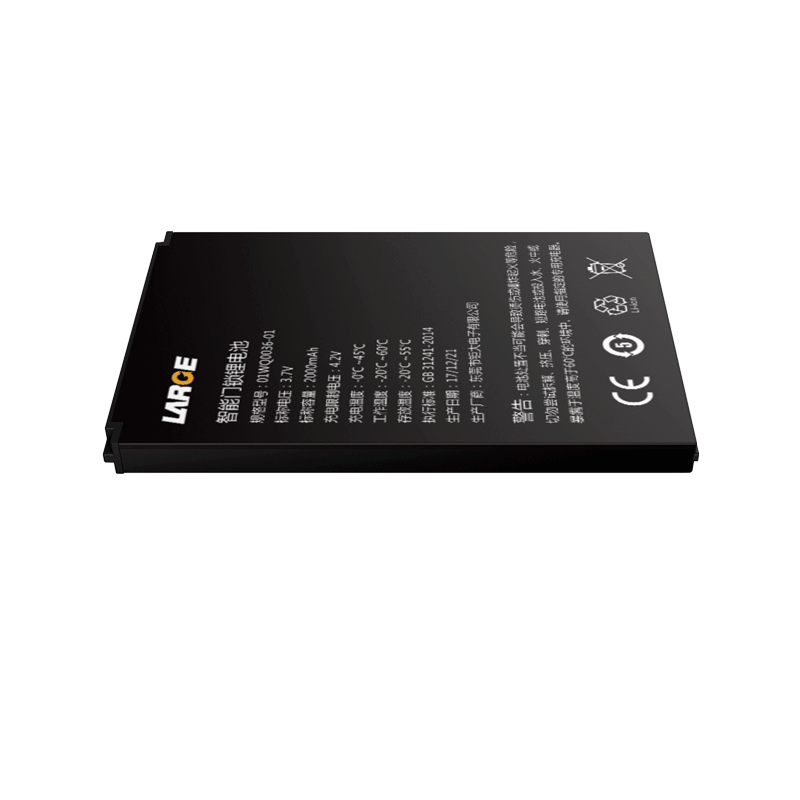

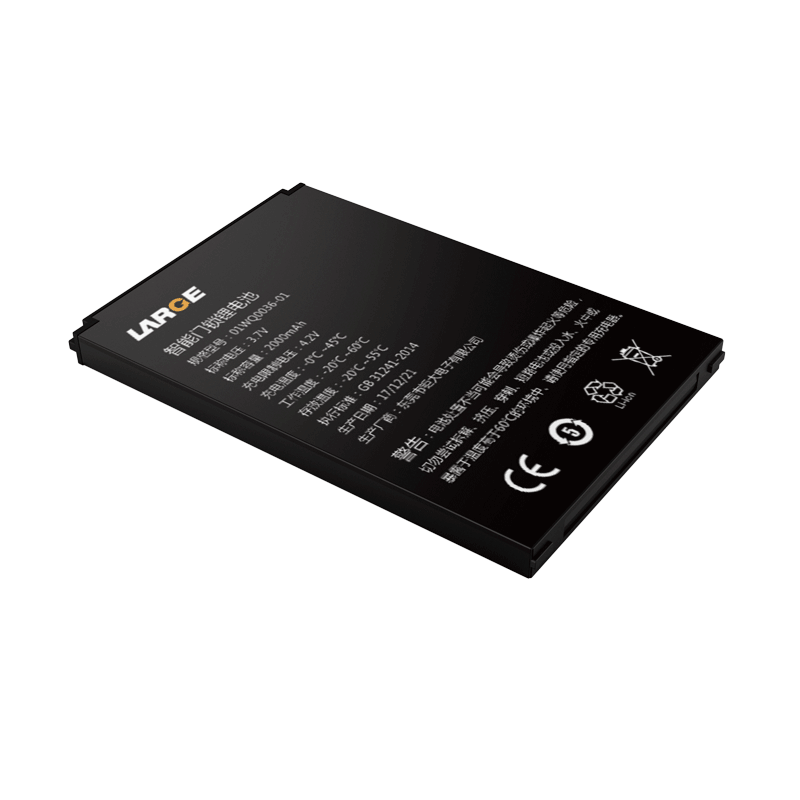

3.7V 2000mAh Lithium Polymer Battery for Intelligent Door Lock

Product number: 01WQ0036-01

Cell model：435174/3.7V/2000mAh

Battery specification: 435174-1S1P/3.7V/2000mAh

Nominal voltage：3.7V

Nominal capacity：2000mAh

Charging voltage: 4.2V

Charging current: ≤1A

Discharging current: 2A

Instant discharging current: 2.5A

End-off voltage: 3V

Internal resistance: ≤150mΩ

Battery weight: 0.11Kg

Product dimension: 80.7*53.6*5.55mm（Max）

Charging temperature：0～45℃

Discharging temperature: -30～60 ℃

Storage temperature: -20～35 ℃

Battery case: plastic housing + steel disc

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: outdoor signal
