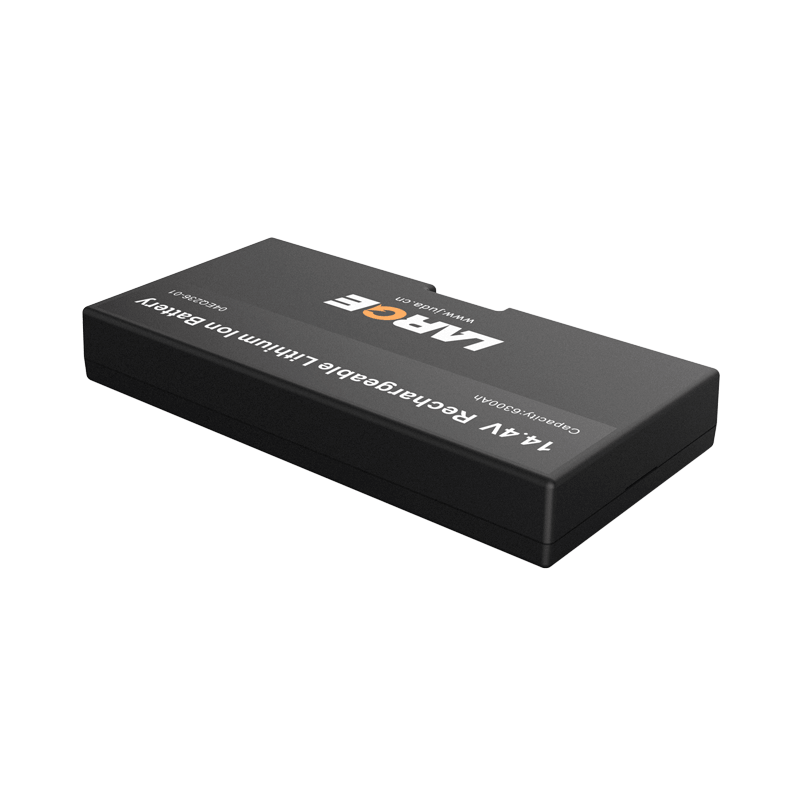

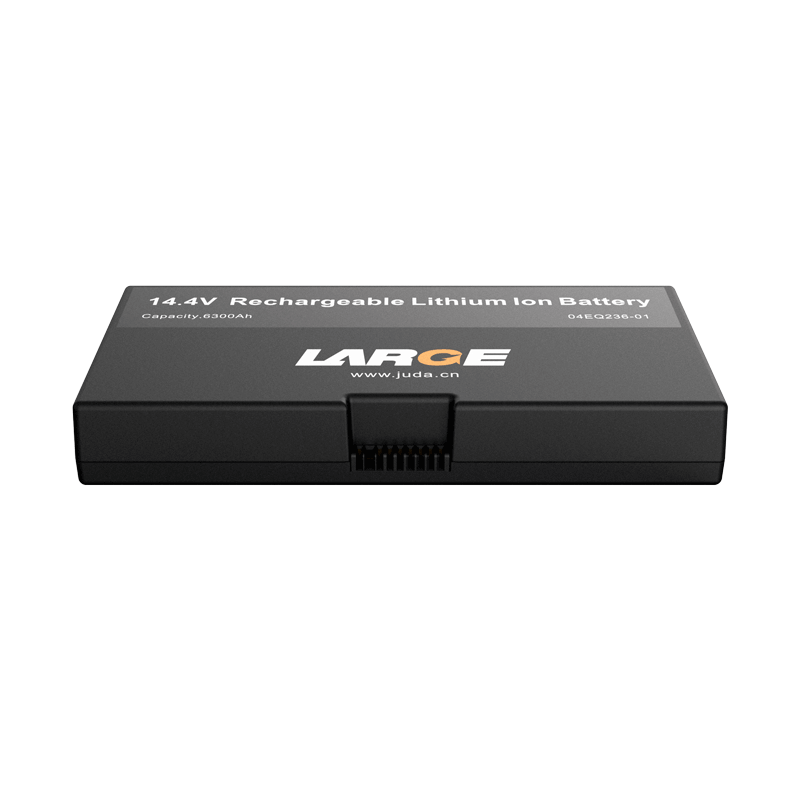

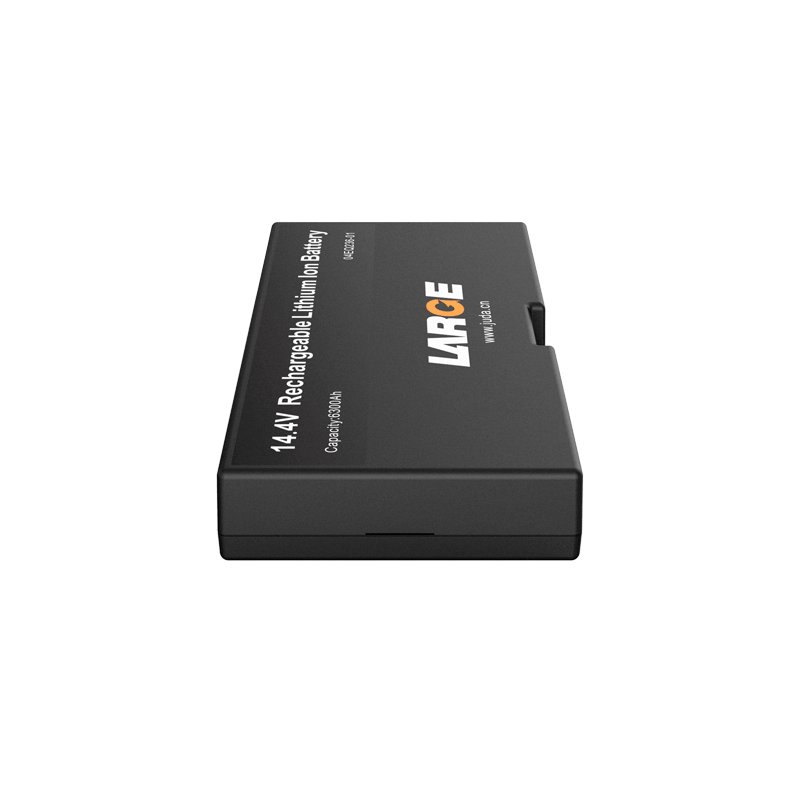

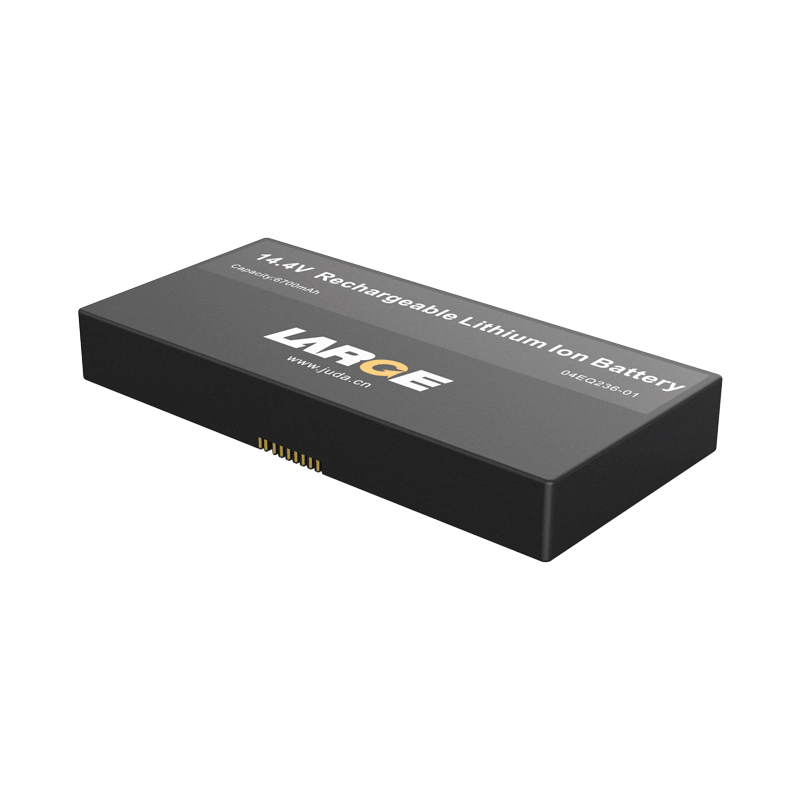

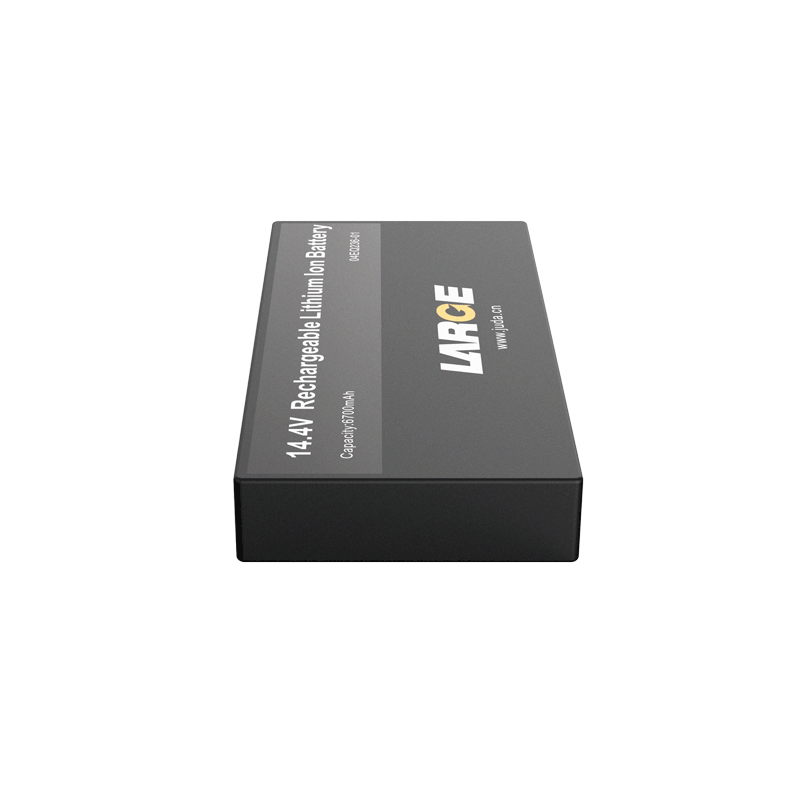

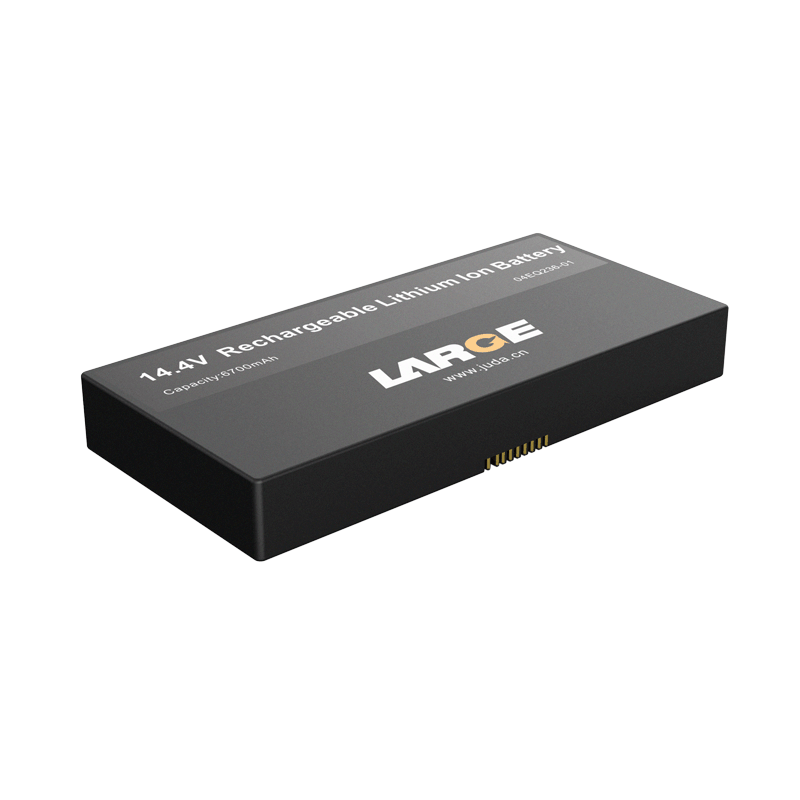

18650 14.4V 6.3Ah Ternary Battery Samsung Battery for Medical Device with SMBUS Communication

18650 14.4V 6.3Ah Ternary Battery Samsung Battery for Medical Device with SMBUS Communication
18650 14.4V 6.3Ah Ternary Battery Samsung Battery for Medical Device with SMBUS Communication
18650 14.4V 6.3Ah Ternary Battery Samsung Battery for Medical Device with SMBUS Communication
18650 14.4V 6.3Ah Ternary Battery Samsung Battery for Medical Device with SMBUS Communication

Product Detail

Product number: 04EQ236-01

Cell model:INR18650-35E/3.6V/3.4Ah

Battery specification: 18650/4S2P/14.4V/6.3Ah

Nominal voltage:14.4V

Nominal capacity:6.3Ah

Charging voltage: 16.8V

Charging current: ≤3A

Discharging current: 1.5A

Instant discharging current: 3.5A,3~4S

End-off voltage: 10V

Internal resistance: ≤150mΩ

Battery weight: 420g

Product dimension: 160.0×80.0×23.0mm

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20℃~+23℃(≤12 months)

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection and SMBUS communication.

Application field: backup battery of medical device


Product features

1. Low self-discharge.

2. The battery pack has good security and long cycle life.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

4. It has ultra-thin design of battery appearance and anti-reverse connection of battery.

5. It has communication which can detect battery information accurately.

*
*
*
*
*
