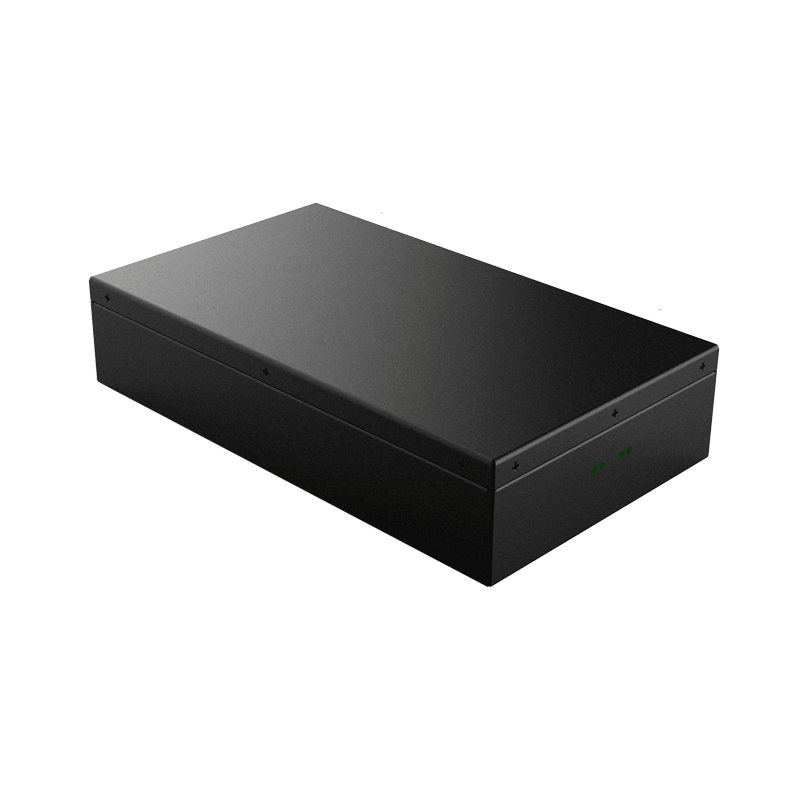

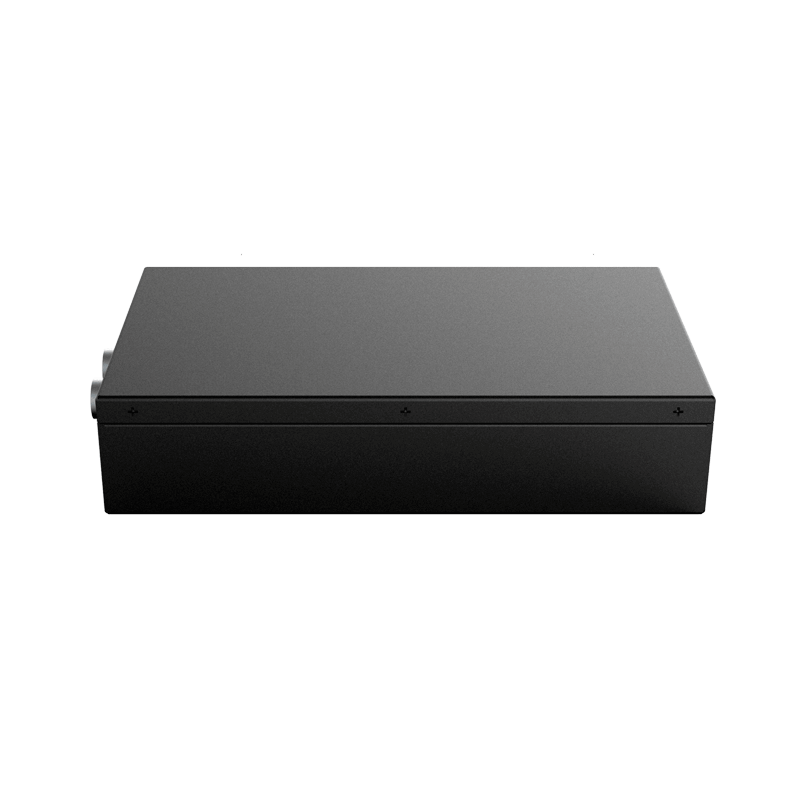

18650 25.2V 13.6Ah Lithium Ion Battery Pack for Environmental Test Equipment

Product number: 41DZ007-01

Cell model：18650-35E/3400mAh/3.6V

Battery specification: 18650-7S4P/13.6Ah/25.2V

Nominal voltage：25.2V

Nominal capacity：13.6Ah

Charging voltage: 29.2V

Charging current: ≤10A

Discharging current: 13A

Instant discharging current: 15A

End-off voltage: 18V

Internal resistance: ≤200mΩ

Battery weight: 3000g

Product dimension: 170*145*55mm（L*W*H）

Charging temperature：0～45℃

Discharging temperature: -20～55℃

Storage temperature: -20℃～45℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, 232 and 485 communication, etc.

Application field: environmental test equipment

Product features

Shock-resistant: fill in the shock-resistant structure inside the cold rolling metal plate housing to satisfy the requirements of good security and high reliability.

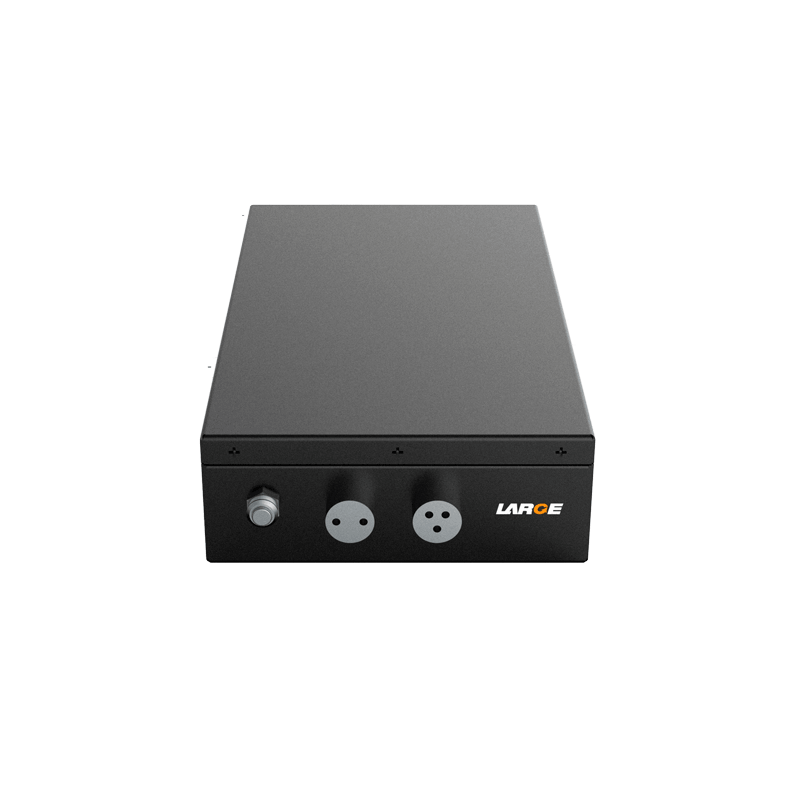

High current connector: high current aviation connector has interface with lemo waterproof plug, which is safe and reliable.

Communication interface: RS485 communication protocol is adopted to read battery voltage, current, temperature, capacity and other information.

Data communication management: adopt software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

The battery pack is safe with temperature probe. When the temperature probe of battery finds out over temperature status, the protection system is on automatically.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
