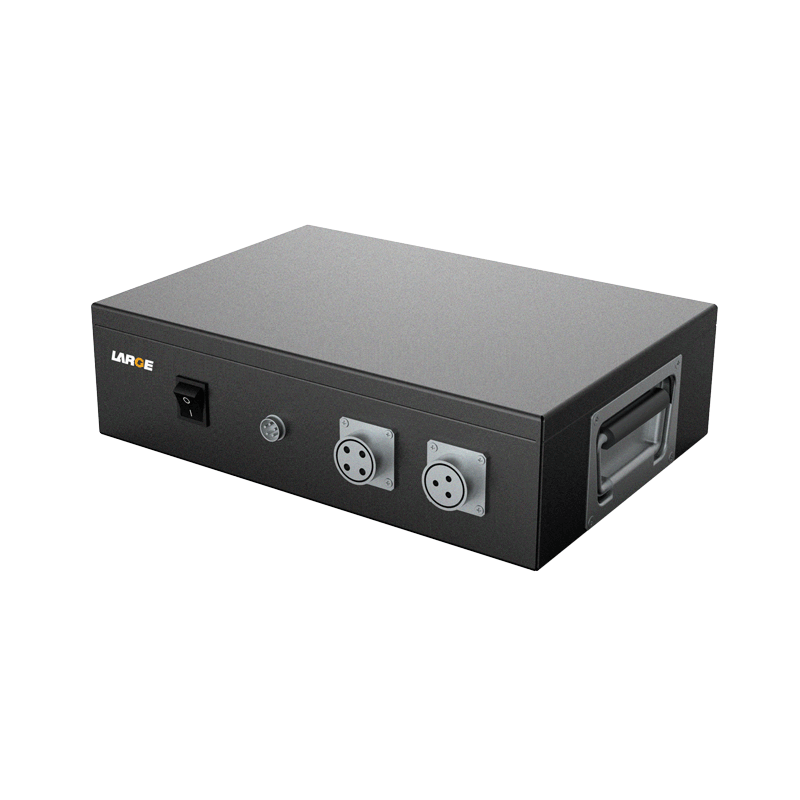

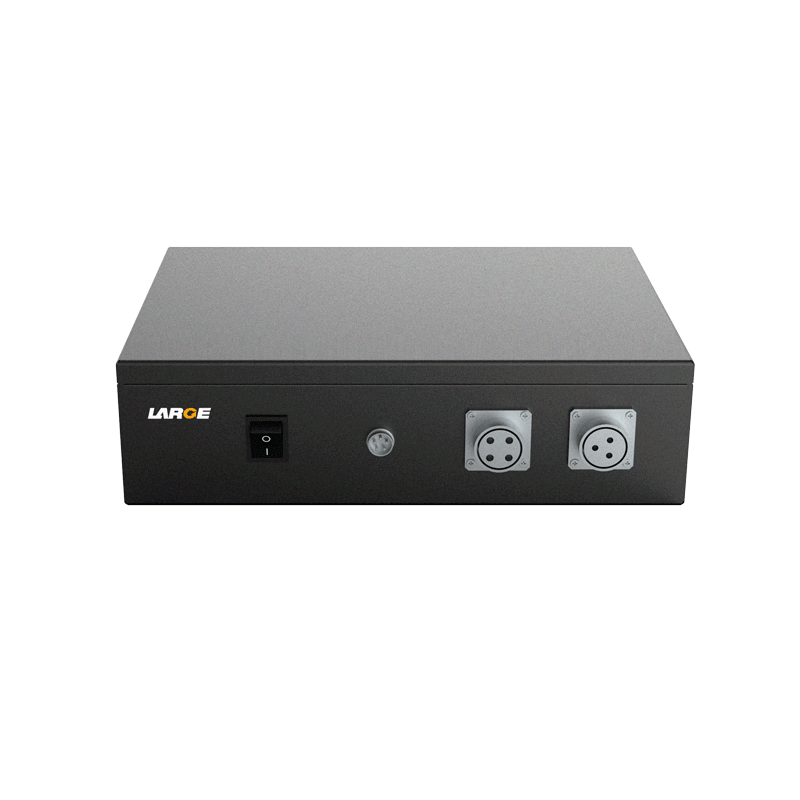

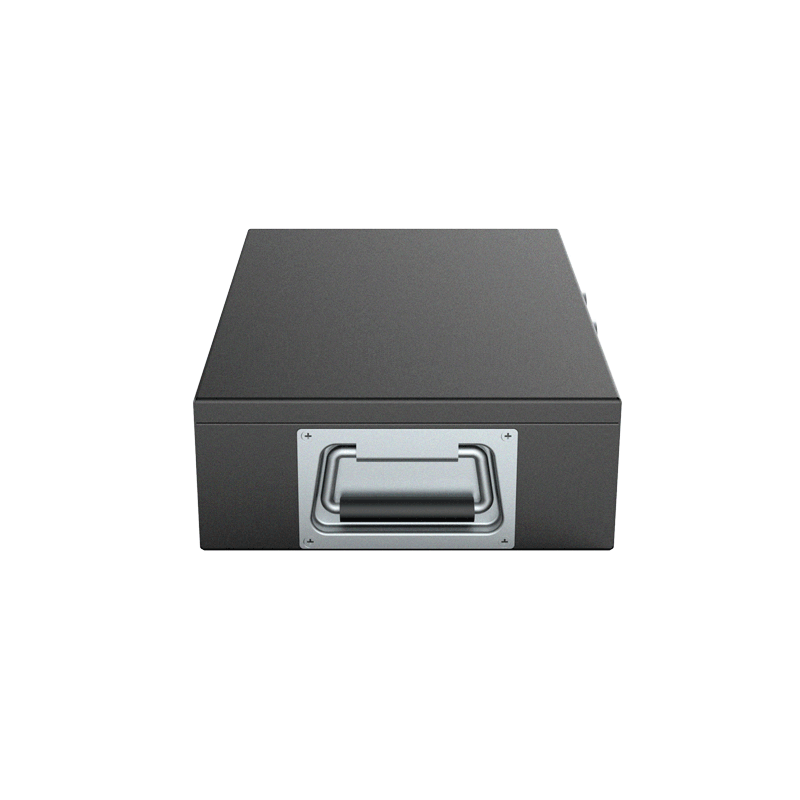

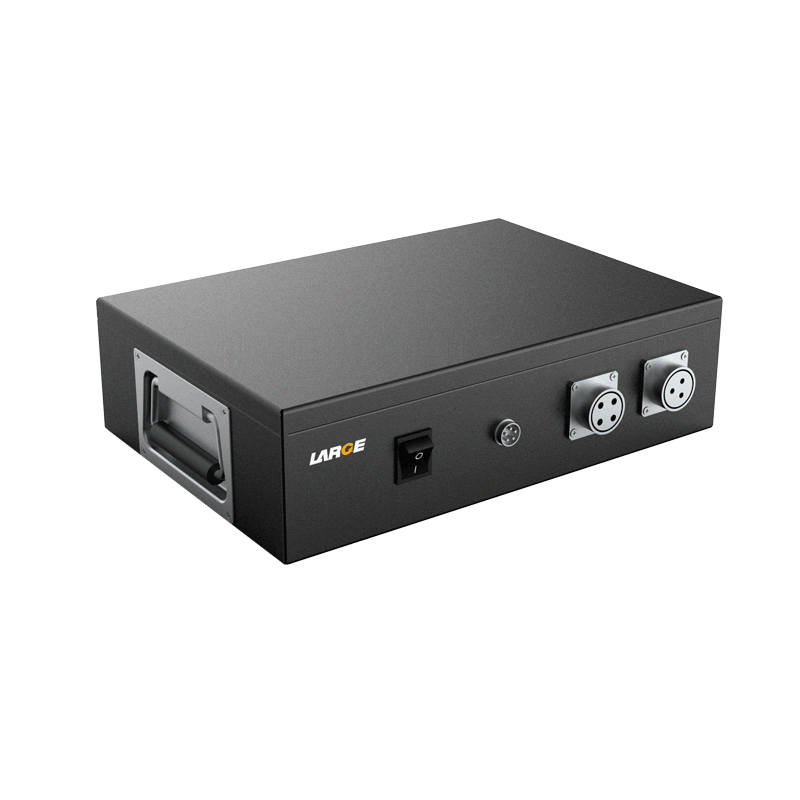

26650 25.6V 49Ah LiFePO4 Power Battery for Telegraph Transmitter

Product number: 04EQ195-01

Cell model：26650/3.5V/3.5Ah

Battery specification: 26650/8S14P/25.6V/49Ah

Nominal voltage：25.6V

Nominal capacity：49Ah

Charging voltage: 29.2V

Charging current: ≤10A

Discharging current: 10A

Instant discharging current: 30A

End-off voltage: 20V

Internal resistance: ≤200mΩ

Battery weight: 15Kg

Product dimension: 360×250×100mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～40 ℃

Temperature protection: yes

Battery case: metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, equilibrium, etc.

Application field: vending machine, telegraph transmitter

Product features

Dustproof and shockproof: make outer housing by cold rolled sheet, and fill in the inside by shockproof structure, which meets the requirements of dustproof and shockproof.

Waterproof connector: adopt waterproof connector, which is safe and reliable.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

Ultra-low temperature working: it can discharge at -20℃.
