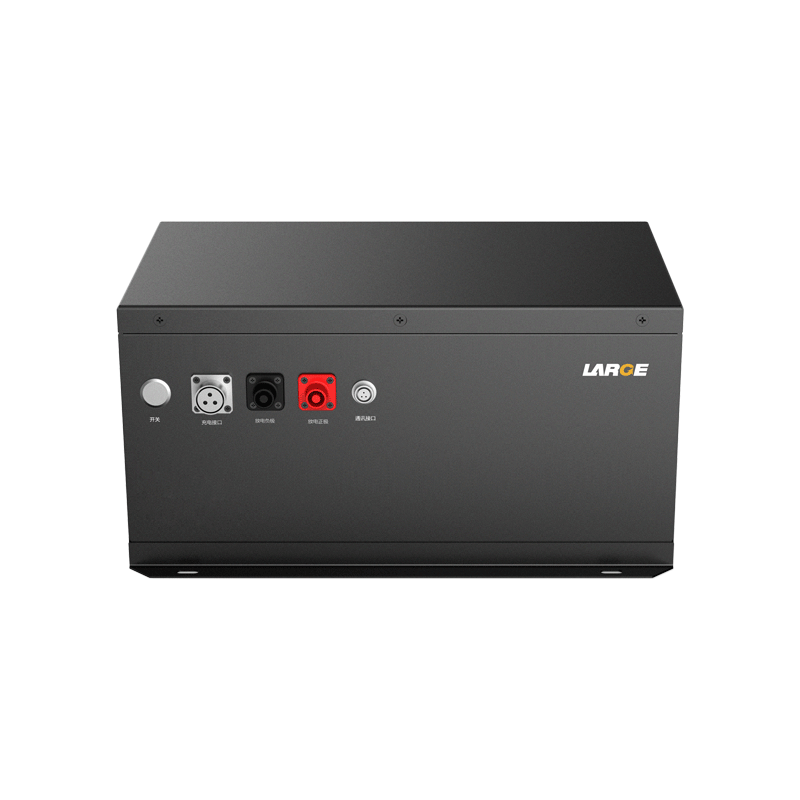

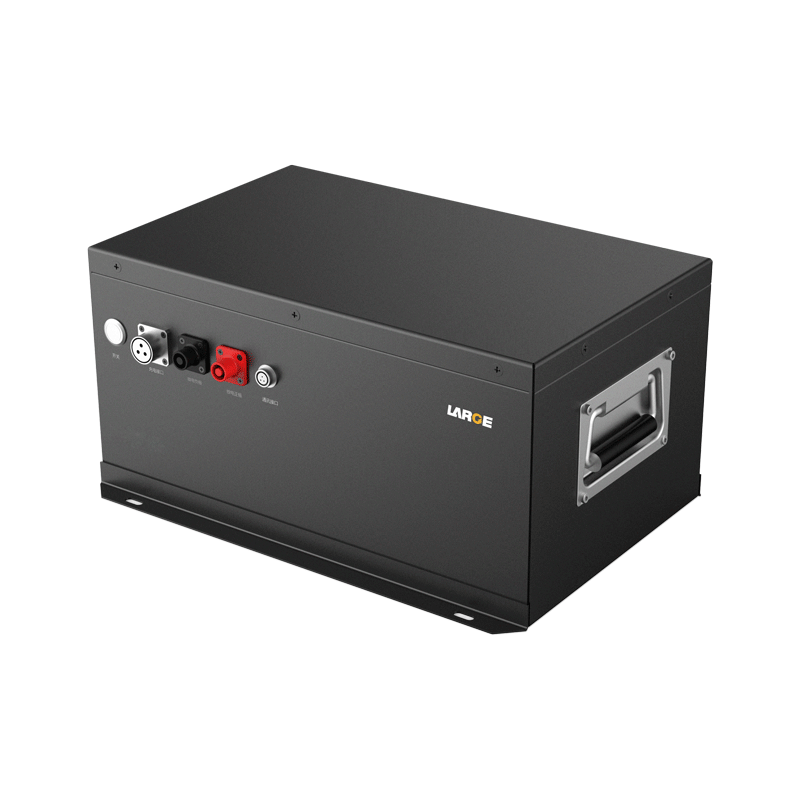

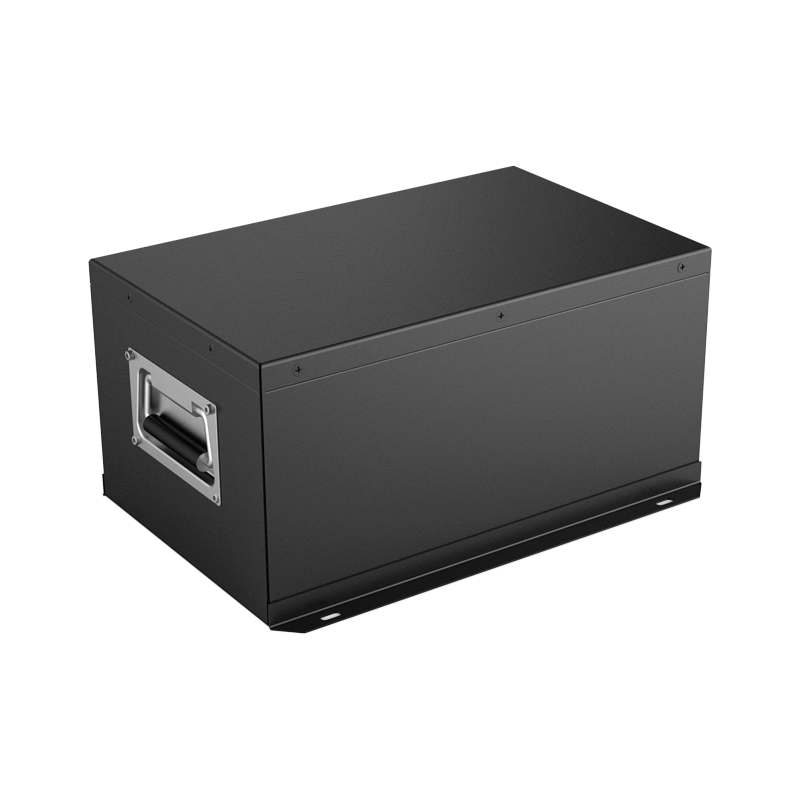

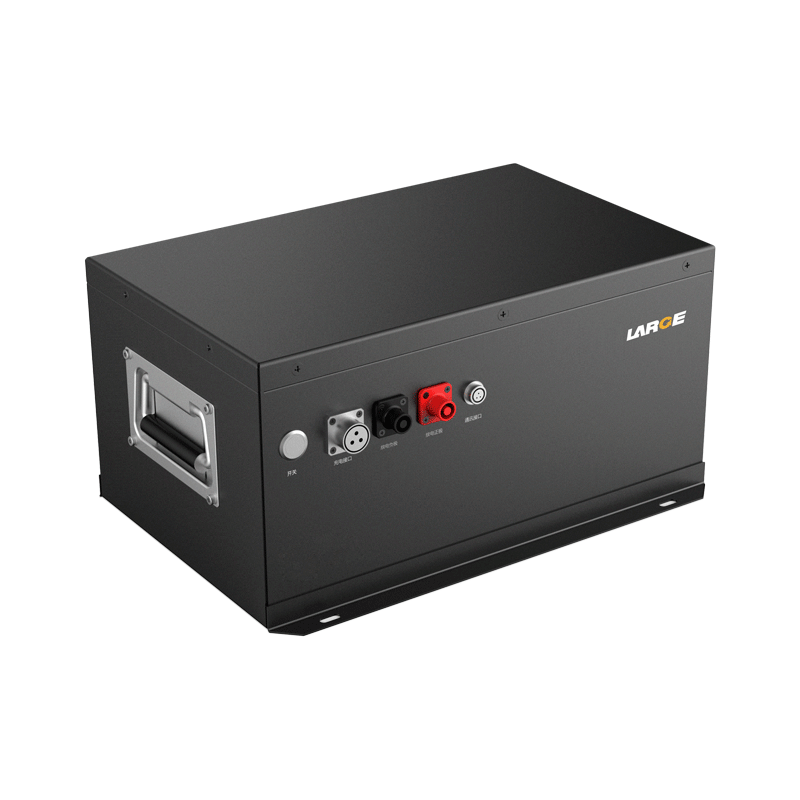

48V 50Ah Lithium Ion Battery for Robot

Product number: 37DZ052-01

Cell model：2770180/3.2V/25Ah

Battery specification: 2770180/15S2P/48V/50Ah

Nominal voltage：48V

Nominal capacity：50Ah

Charging voltage: 54V

Charging current: ≤10A

Discharging current: 50A

Instant discharging current: 100A

End-off voltage: 45V

Internal resistance: ≤200mΩ

Battery weight: 25Kg

Product dimension: 400×250×200（Max）

Charging temperature：0～45℃

Discharging temperature: -20～55 ℃

Storage temperature: -20～40 ℃

Temperature protection: 65℃±5℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: robot

Product features

Shock-resistant: fill in the shock-resistant structure inside the cold rolling metal plate housing to satisfy the requirements of good security and high reliability.

Salt spray: spray powder on the surface to resist salt spray mold, which is suitable for marine working environment.

Data communication management: adopt software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
