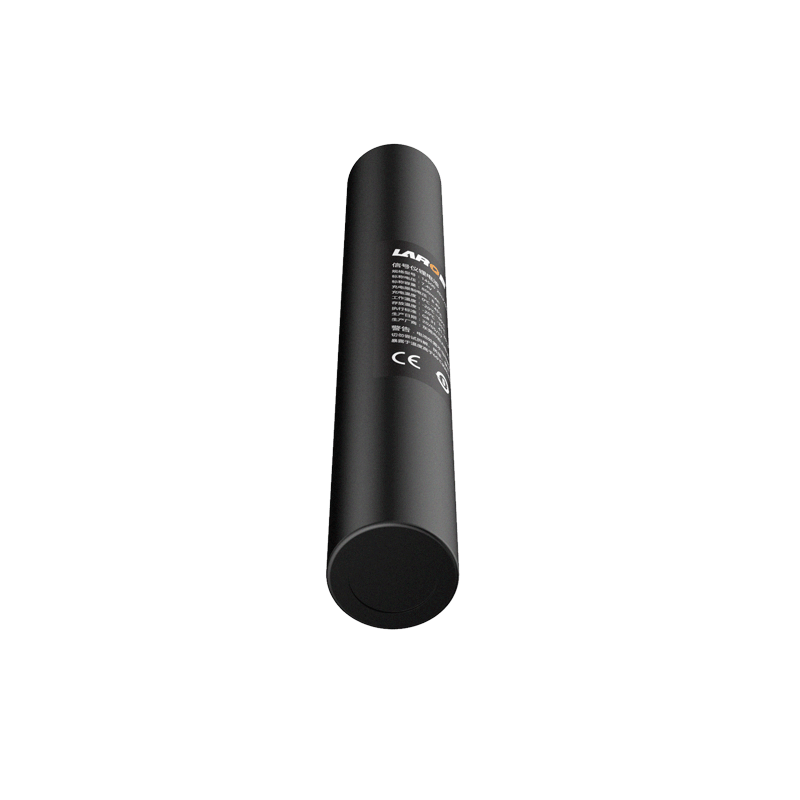

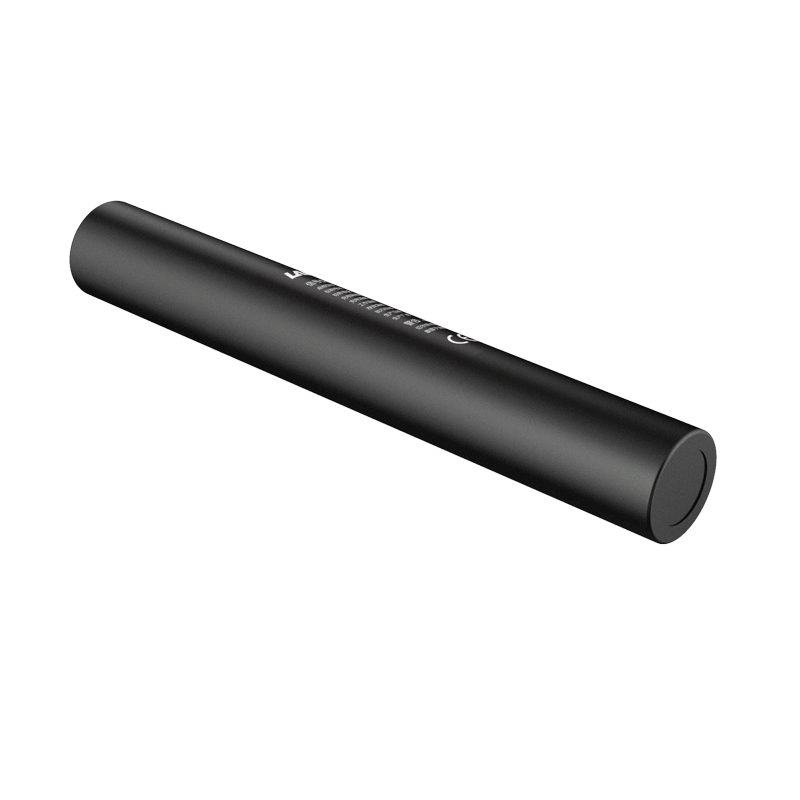

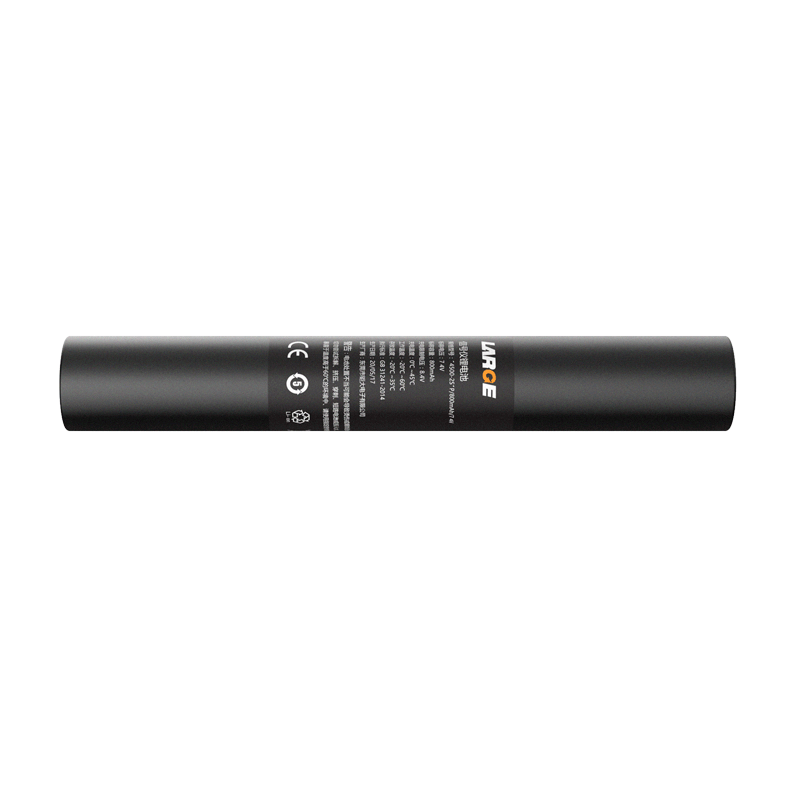

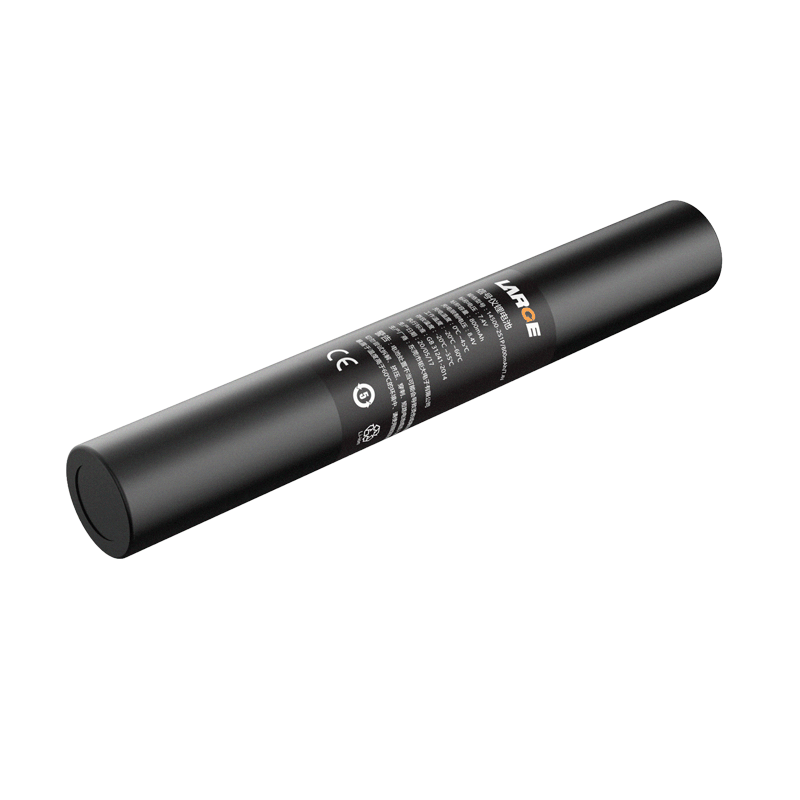

14500 7.4V 800mAh Lithium Ion Battery for Signal Instruments

Product number: 34AQ069-02

Cell model：14500/800mAh/3.7V

Battery specification: 14500/2S1P/800mAh/7.4V

Nominal voltage：7.4V

Nominal capacity：800mAh

Charging voltage: 8.4V

Charging current: ≤0.8A

Discharging current: 0.16A

Instant discharging current: 1.6A

End-off voltage: 6.0V

Internal resistance: ≤230mΩ

Battery weight: 40g

Product dimension: 106*15.5*15.5mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35℃

Battery case: simple package

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection, etc.

Application field: signal instrument data collection terminal, handheld tester, portable handheld equipment

Product features

1. Small size, light weight, easy to assemble

2. Conductor output mode has better conductivity reliability.

3. Battery protection chip: imported Seiko protection chip with high stability, high precision monitoring, precise control, which tries to eliminate the safety risks.

4. The battery pack has good safety performance, nice discharge performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
