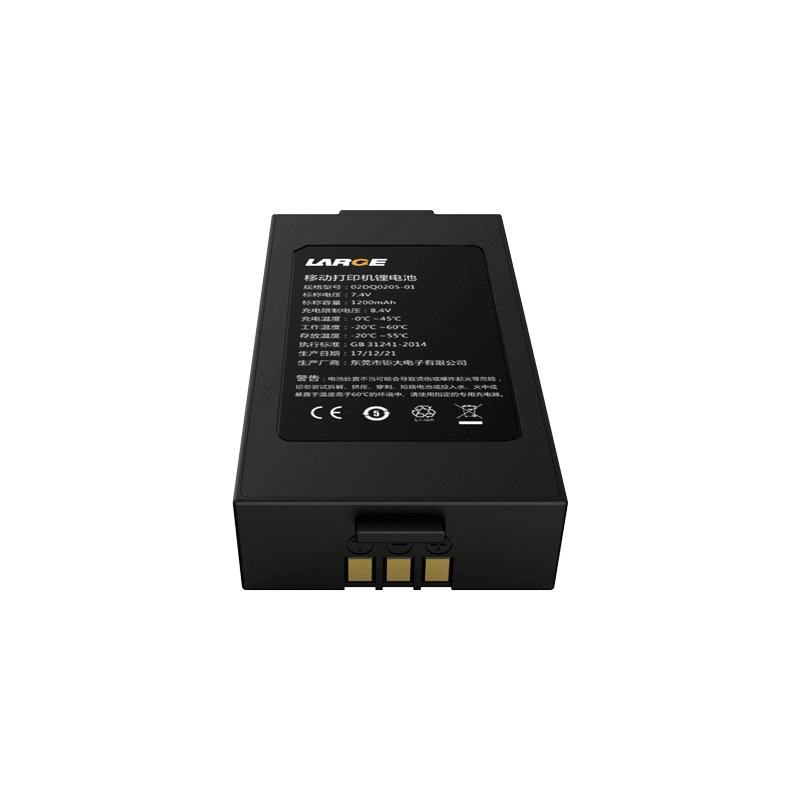

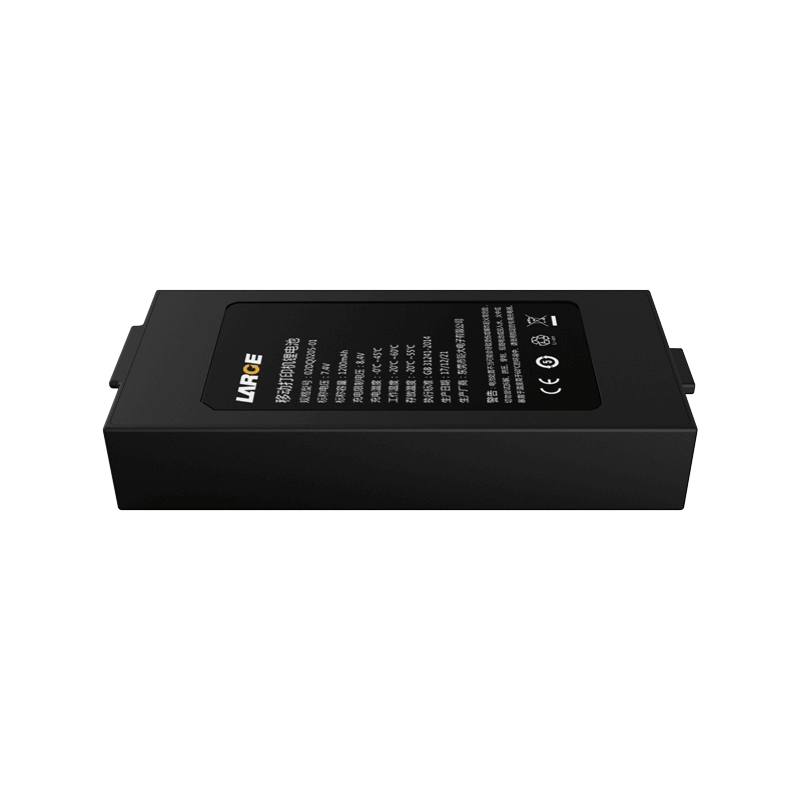

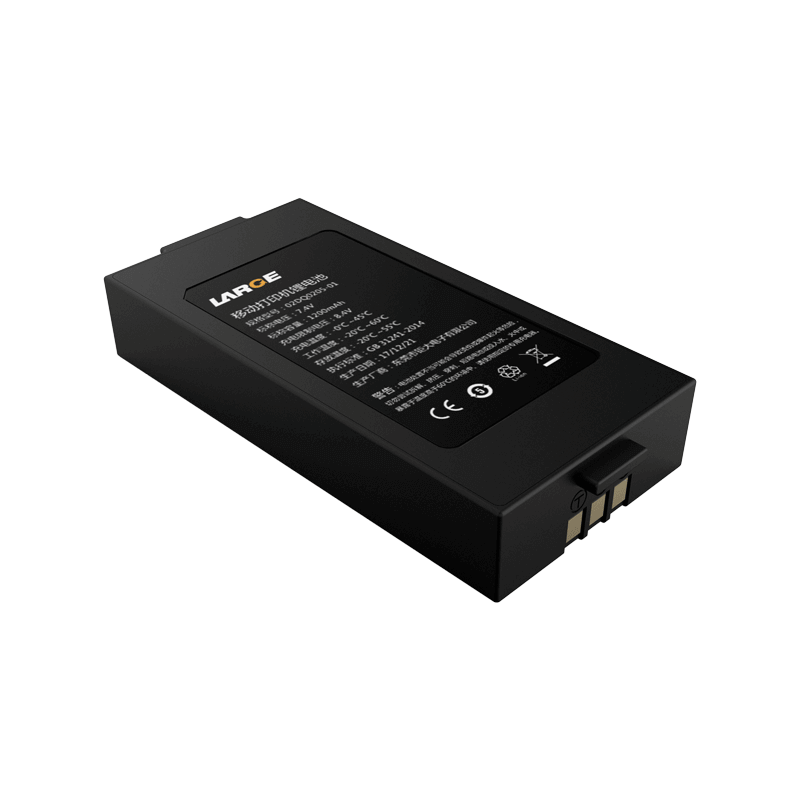

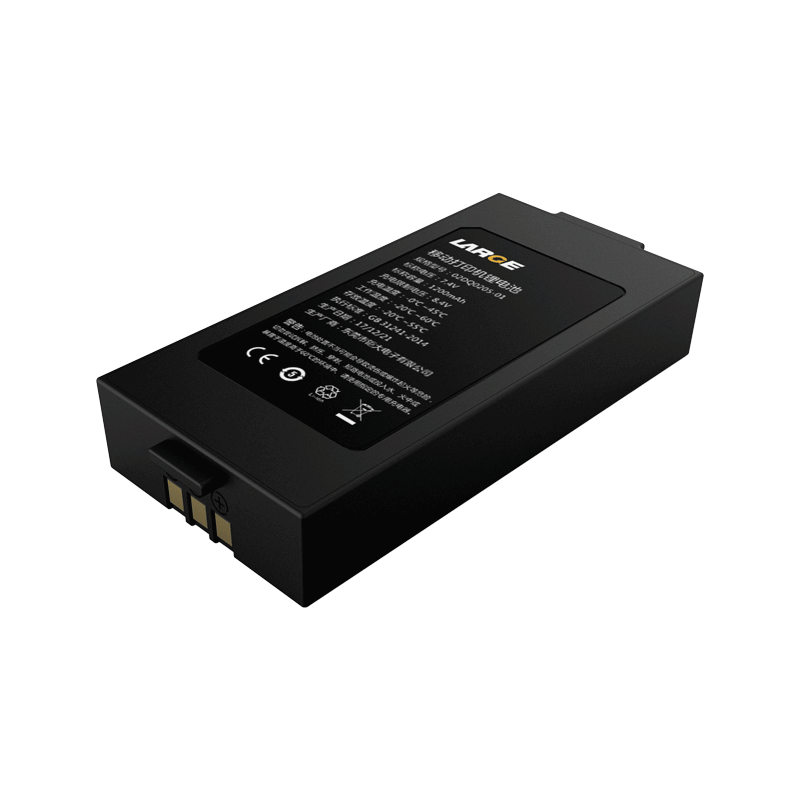

7.4V 1200mAh Lithium Ion Battery for Mobile Printers

Product number: 02DQ0205-01

Cell model：523265/3.7V/1200mAh

Battery specification: 523265-2S1P/7.4V/1200mAh

Nominal voltage：7.4V

Nominal capacity：1200mAh

Charging voltage: 8.4V

Charging current: ≤1.2A

Discharging current: 0.6A

Instant discharging current: 3A

End-off voltage: 6.0V

Internal resistance: ≤130mΩ

Battery weight: 55g

Product dimension: 13*36*76mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～35 ℃

Battery case: engineering plastic ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: mobile printing of POS machine
