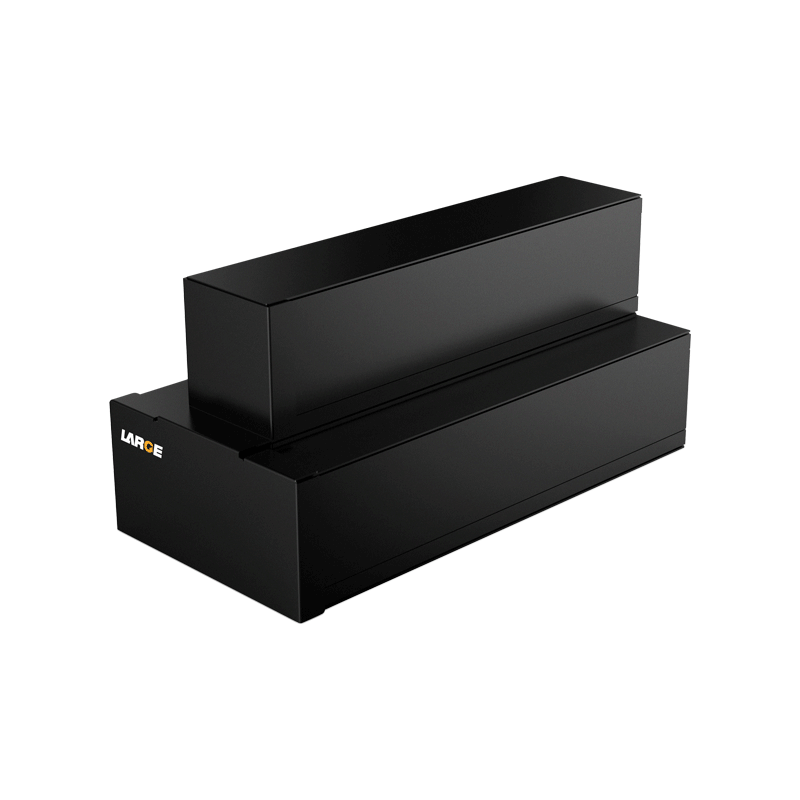

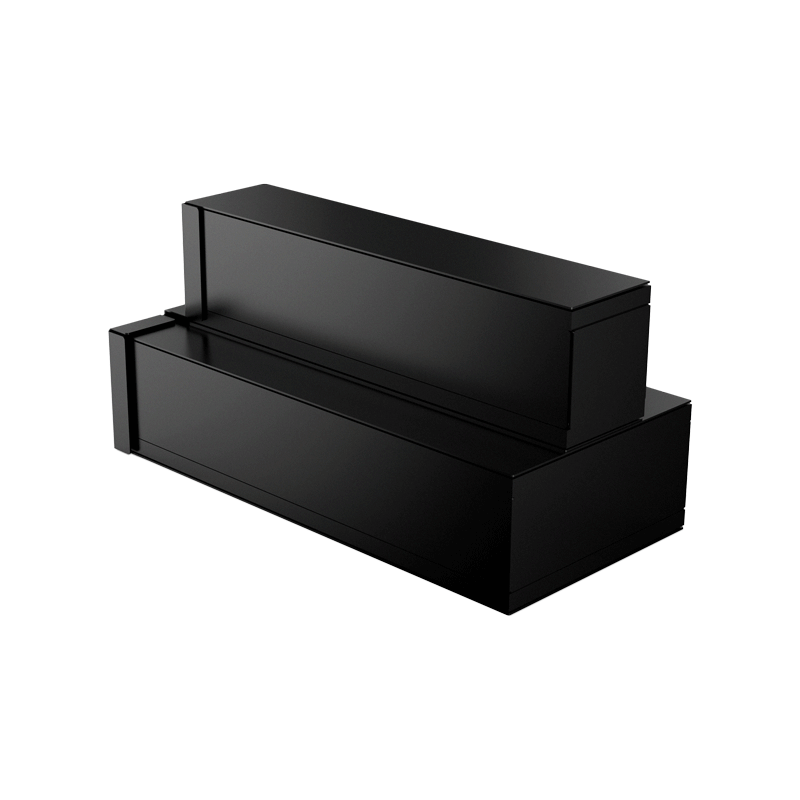

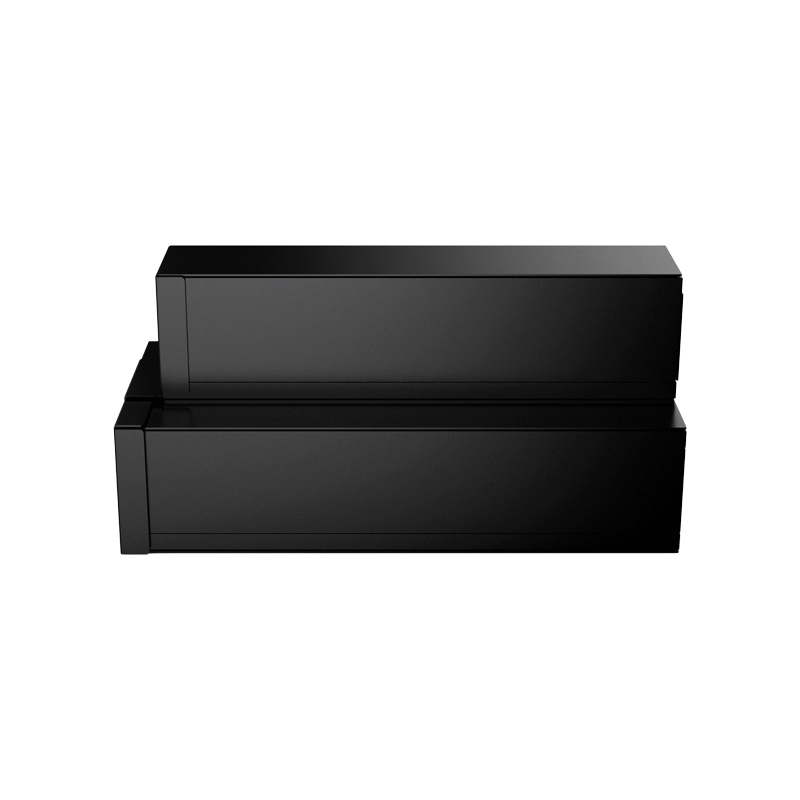

18650 25.2V 54Ah Lithium ion Battery Pack

Product number:06DQ030-03

Cell model：18650/3.6V/2750mAh

Battery specification: 18650-7S19P/25.2V/54Ah

Nominal voltage：25.2V

Nominal capacity：54Ah

Charging voltage: 29.4V

Charging current: ≤10A

Discharging current: 8-20A

Instant discharging current: 20A

End-off voltage: 19.6V

Internal resistance: ≤200mΩ

Battery weight: 7.0Kg

Product dimension: 323*144*141mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～35℃

Battery case: plastic housing

Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection and overcurrent protection
