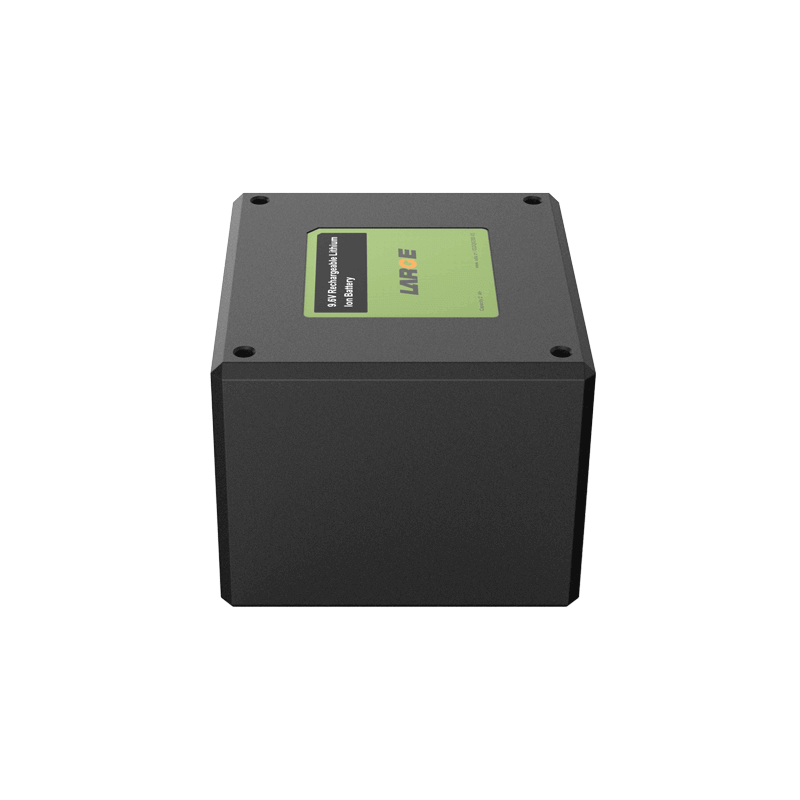

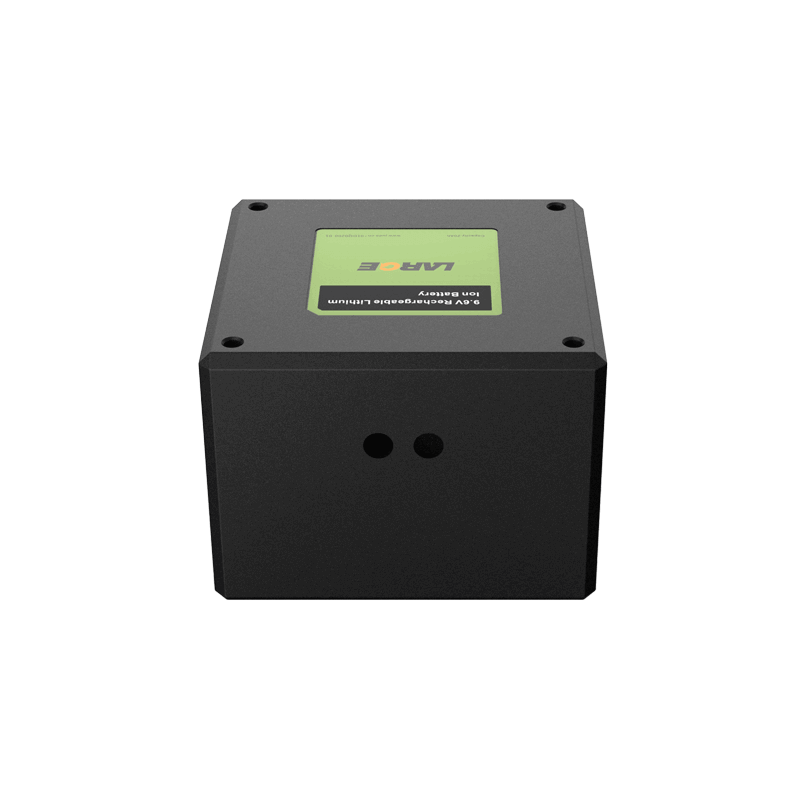

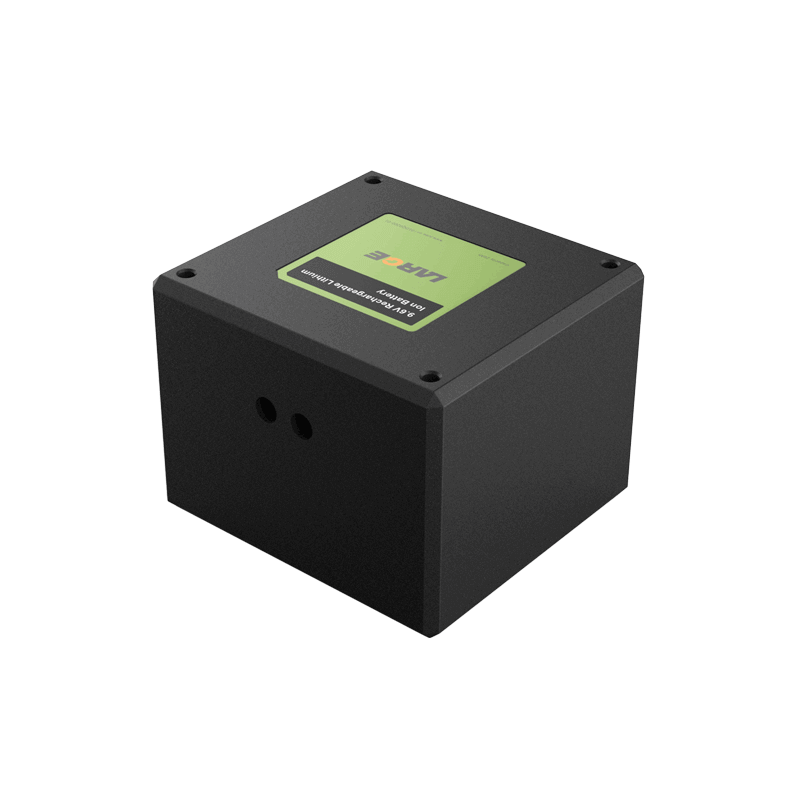

9.6V 20.0Ah Low Temperature Battery LiFePO4 Battery for Landing Area Floodlight System

Product number: 01DQ0200-01

Cell model：2714898-3.2V-20Ah

Battery specification: 2714898-3S1P-20.0Ah-25.6V

Nominal voltage：9.6V

Nominal capacity：20.0Ah

Charging voltage: 10.95V

Charging current: ≤3.0A

Discharging current: 10A

Instant discharging current: 20A

End-off voltage: 6.0V

Internal resistance: ≤150mΩ

Battery weight: 2.5kg

Product dimension: 160*150*120mm(±1mm)

Charging temperature：-20～45℃

Discharging temperature: -40～55℃

Storage temperature: -20～45℃

Battery case: special purpose

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: outdoor lighting systems such as airport

Product features

Current: It can continuously discharge up to 20A.

It can charge at -20 degree low-temperature, and continuously discharge high current under low temperature.

Cell characteristics: low temperature ratio lithium iron phosphate battery pack

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
