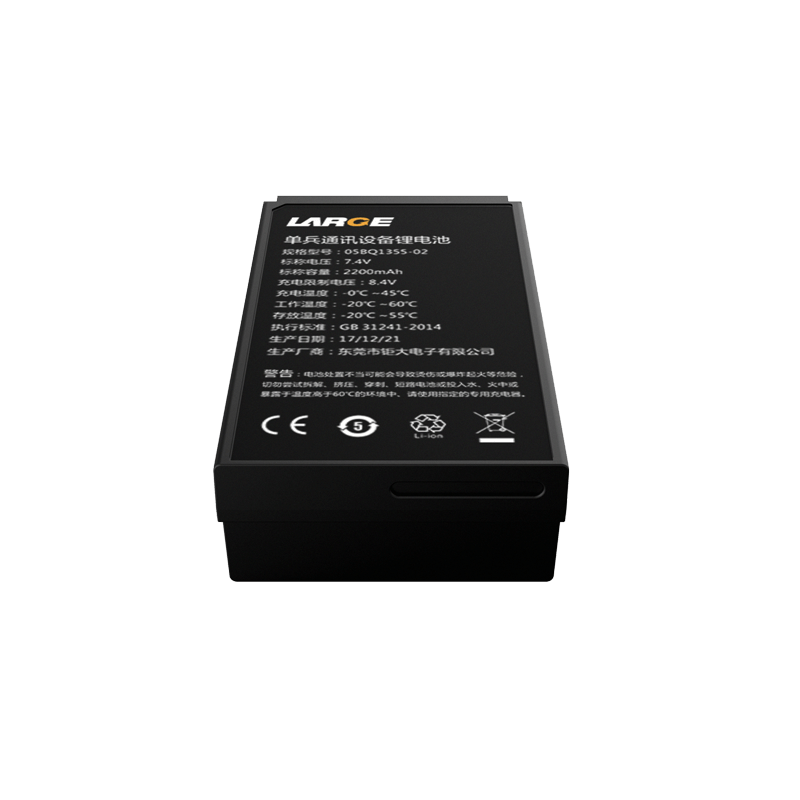

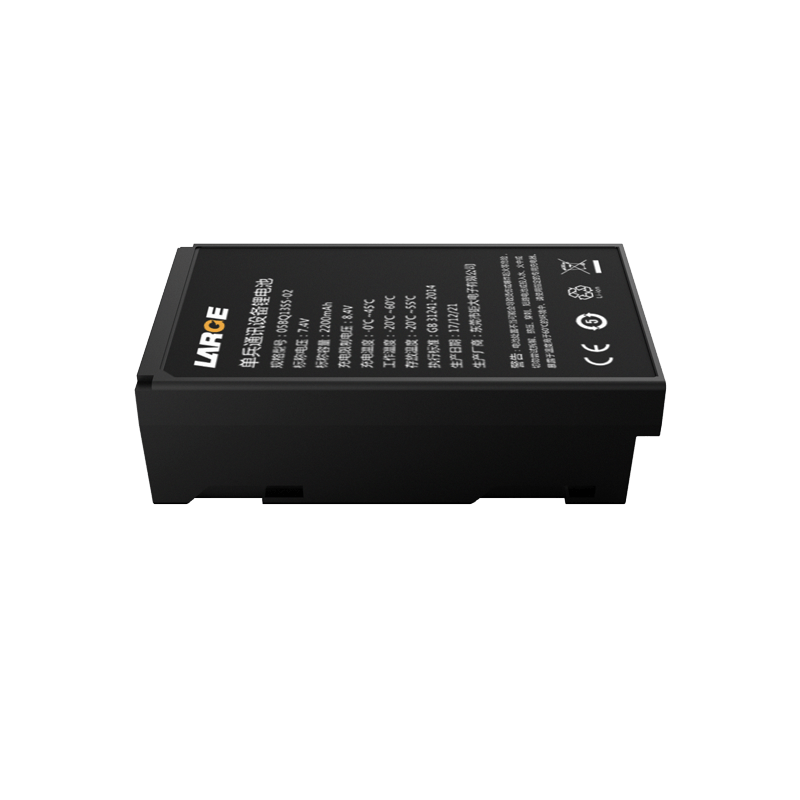

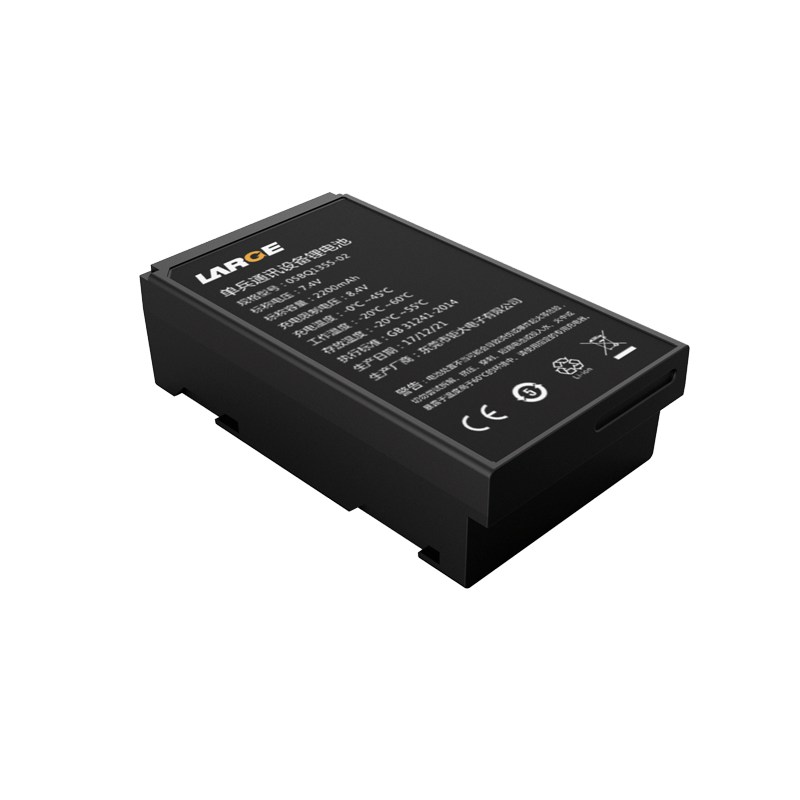

7.4V 2200mAh 18650 Lithium Ion Battery SANYO Battery for Manpack Communication Device

Product number: 05BQ1355-02

Cell model：18650/3.7V/2200mAh

Battery specification: 18650-2S1P/7.4V/2200mAh

Nominal voltage：7.4V

Nominal capacity：2200mAh

Charging voltage: 8.4V

Charging current: ≤2.2A

Discharging current: 0.44A

Instant discharging current: 2.2A

End-off voltage: 6.0V

Internal resistance: ≤250mΩ

Battery weight: 110g

Product dimension: 22*42*73mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～35 ℃

Battery case: engineering plastic ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: interphone, portable communication equipment
