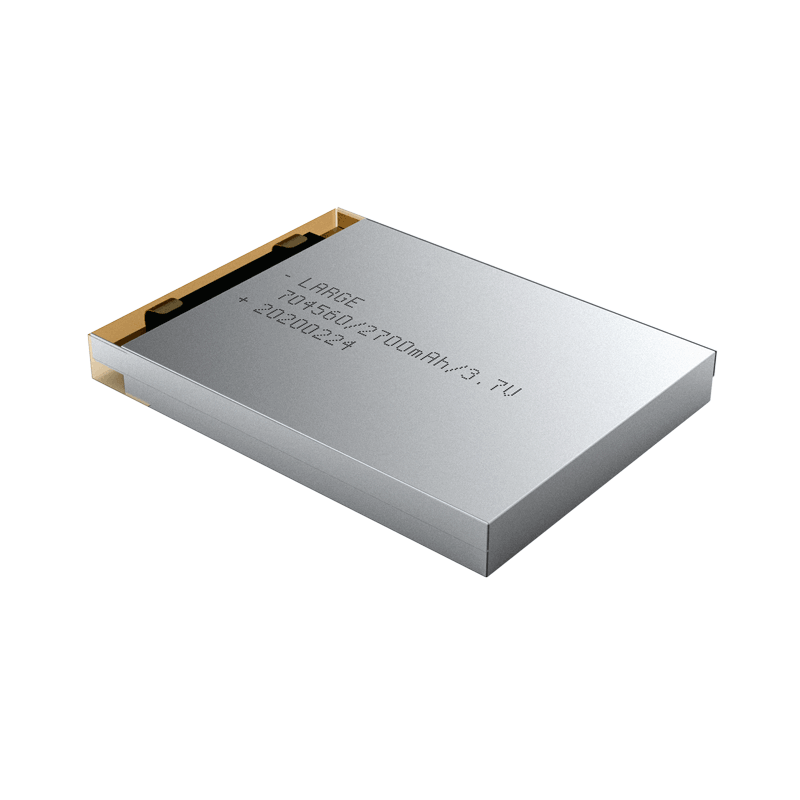

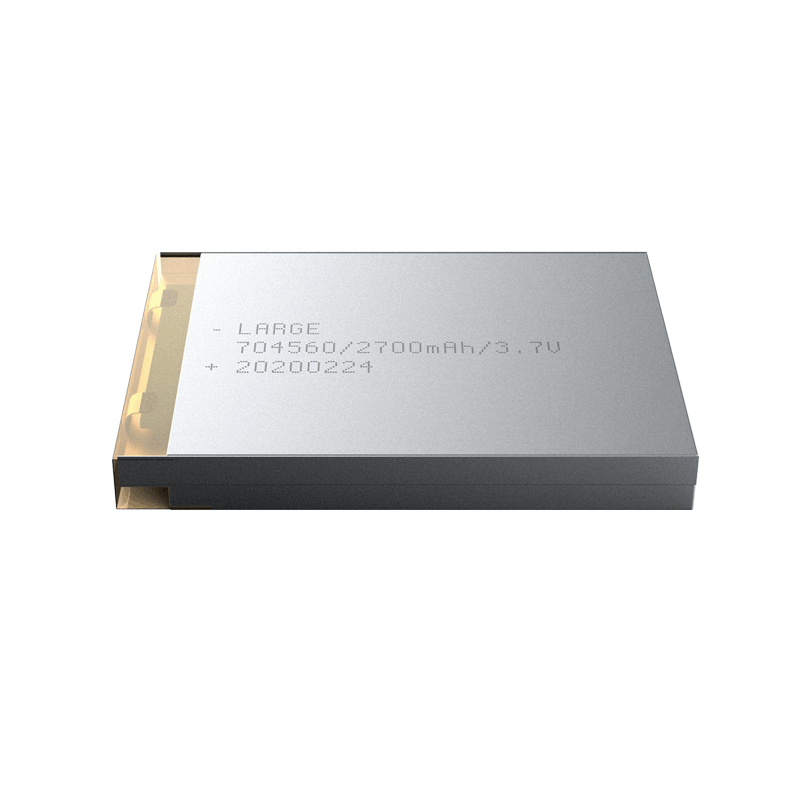

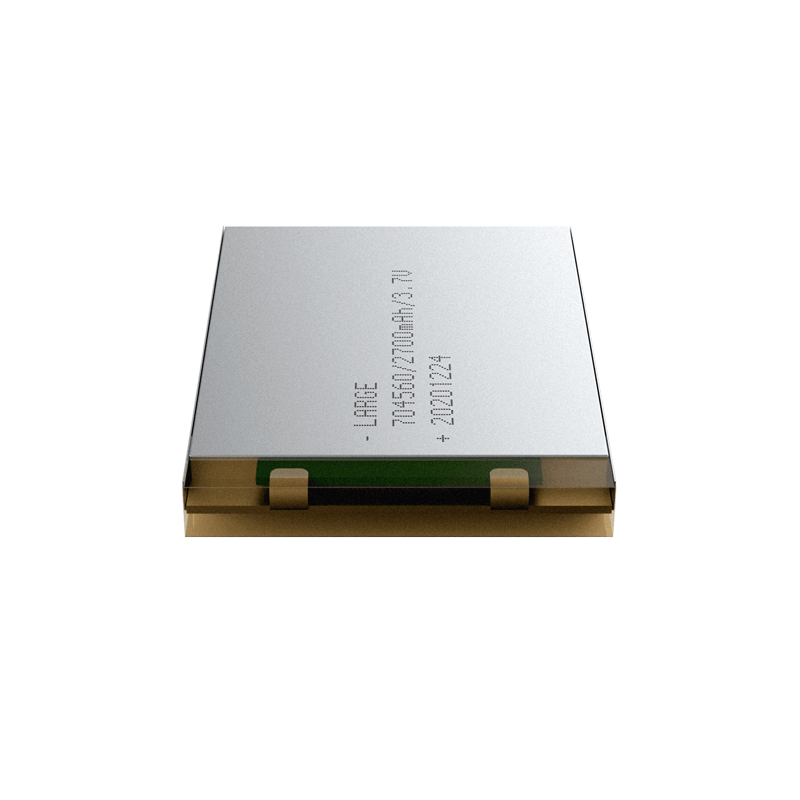

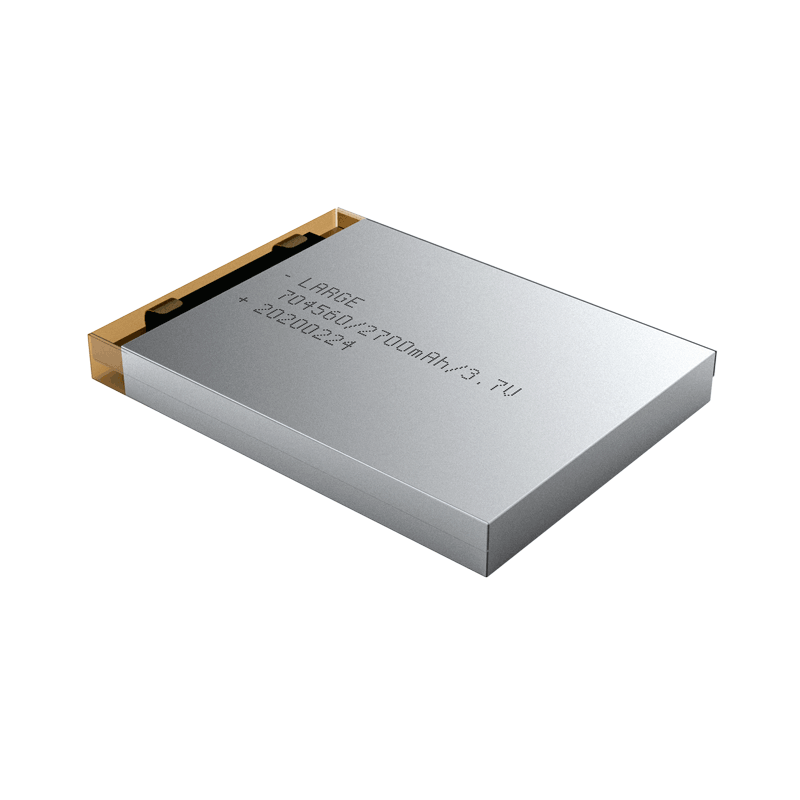

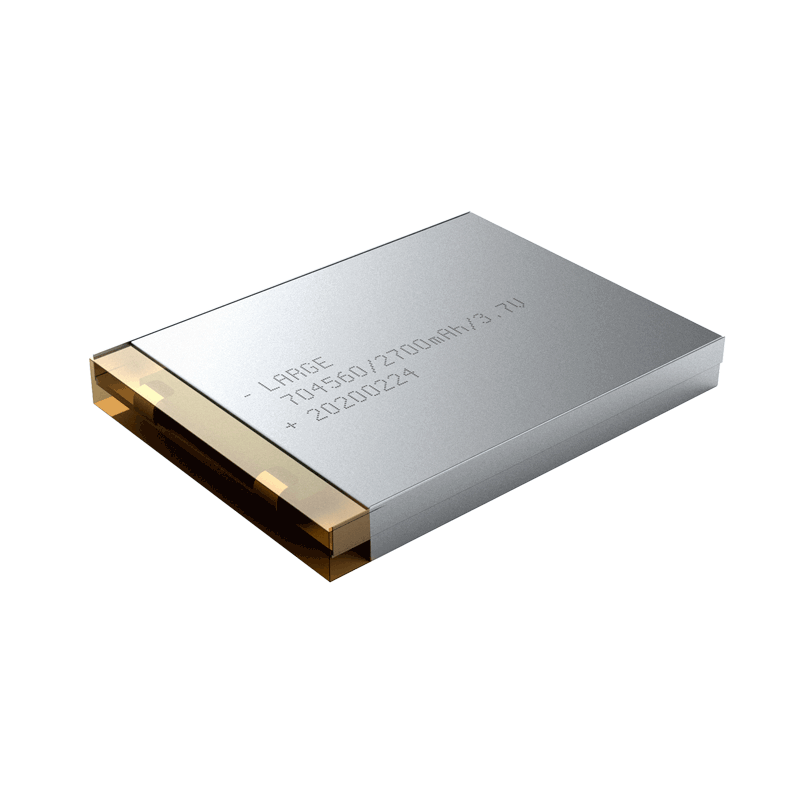

2700mAh 3.7V Lithium Ion Battery for Data Collection Terminal

Product number: 36AQ233-01

Cell model：704560/2700mAh/3.7V

Battery specification: 704560/1S1P/2700mAh/3.7V

Nominal voltage：3.7V

Nominal capacity：2700mAh

Charging voltage: 4.2V

Charging current: ≤2.7A

Discharging current: 0.54A

Instantaneous discharge current: 2.7A

End-off voltage: 3.0V

Internal resistance: ≤130mΩ

Battery weight: 50g

Product dimension: 61*45.5*7.5mm（Max）

Charging temperature：0～45℃

Discharging temperature: -10～60 ℃

Storage temperature: -10～35℃

Battery package: simple package

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: data collection terminal, handheld tester, portable handheld device

Product features

It has small size and light weight, which makes it easy to assemble.

Wire output mode increases conductive reliability.

Battery protective chip: adopt imported protective chip, which has good stability, high precision monitoring and accurate control, so as to eliminate the security risks.

The battery pack has good security, nice discharge performance and long cycle life.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
