22 Years' Battery Customization

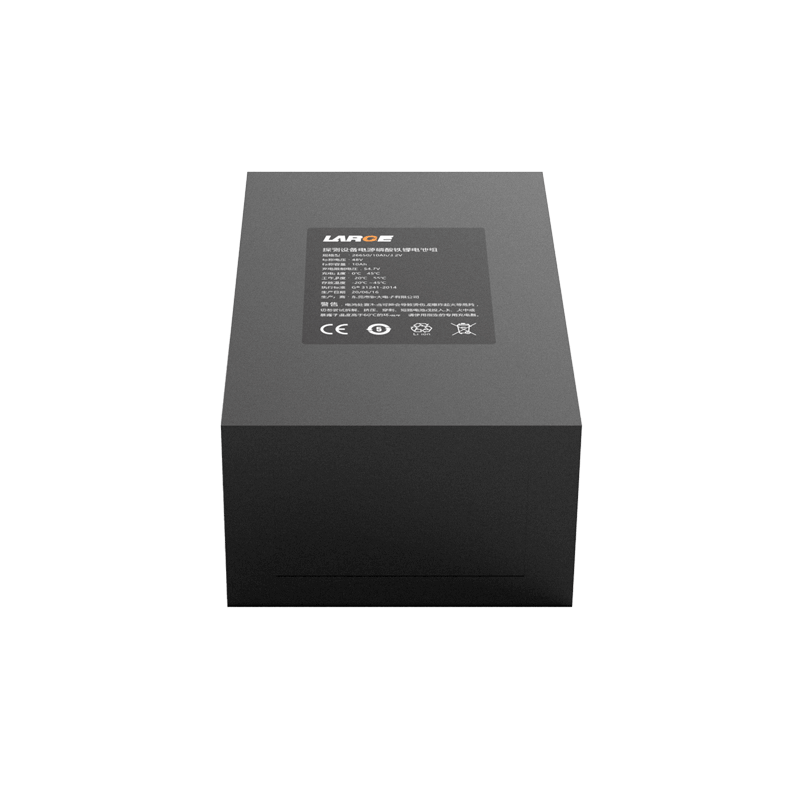

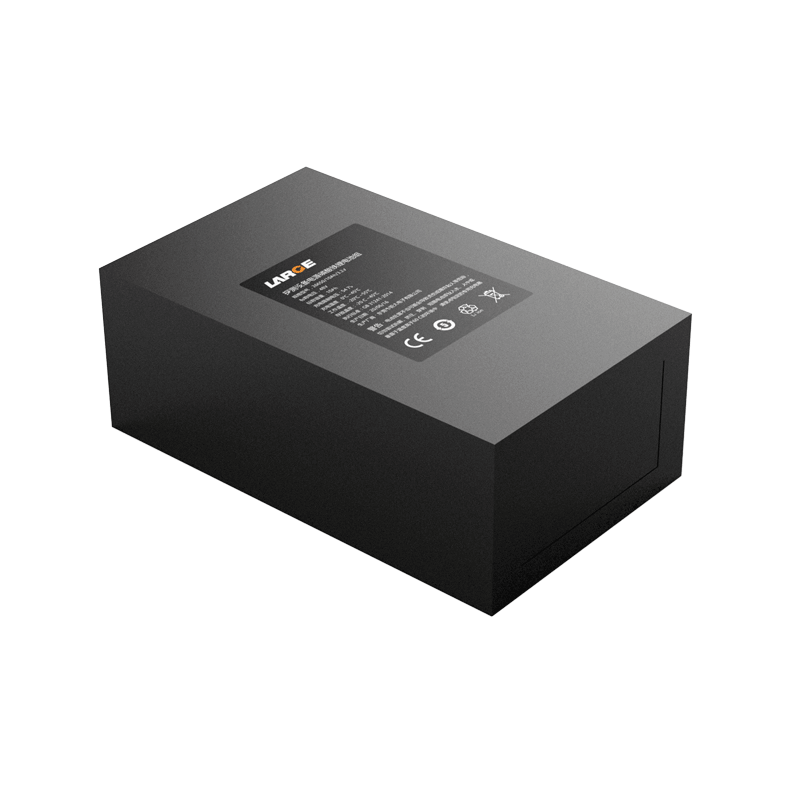

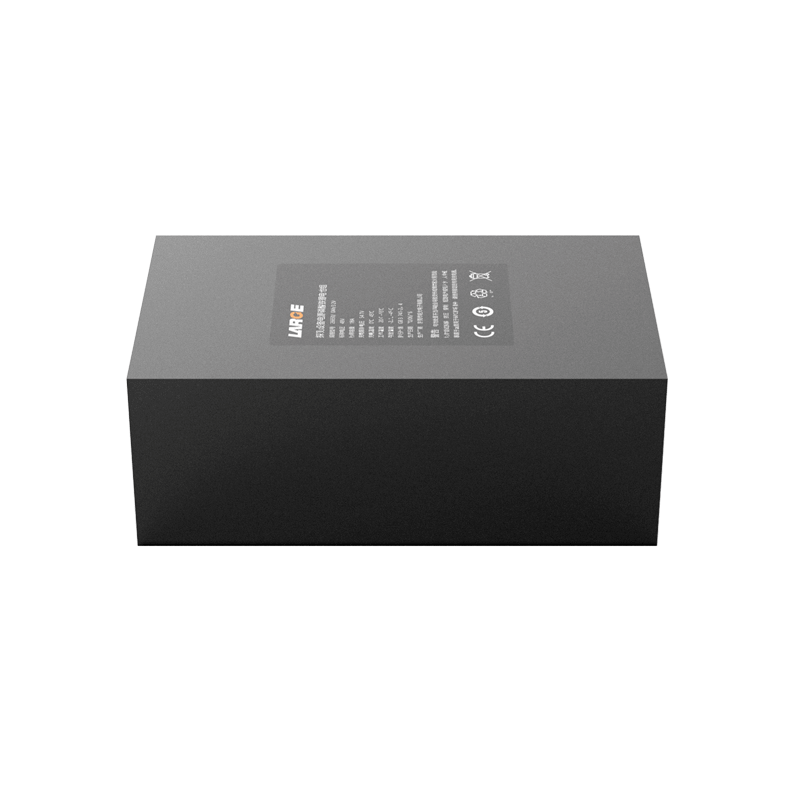

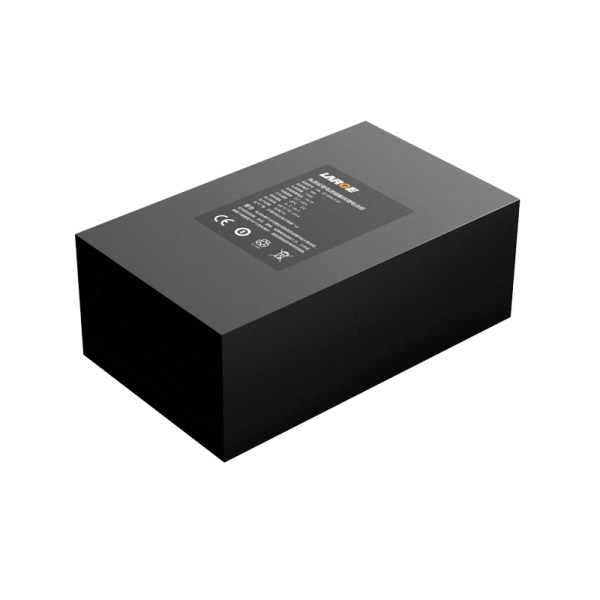

48V 10Ah 26650 Lifepo4 Battery for Detection Equipment

48V 10Ah 26650 Lifepo4 Battery for Detection Equipment
48V 10Ah 26650 Lifepo4 Battery for Detection Equipment
48V 10Ah 26650 Lifepo4 Battery for Detection Equipment
48V 10Ah 26650 Lifepo4 Battery for Detection Equipment

Product Detail

Product number: 42DZ002-01

Cell model:26650/10Ah/3.2V

Battery specification: 48V10Ah

Nominal voltage:48V

Nominal capacity:10Ah

Charging voltage: 54.7V

Charging current: ≤10A

Discharging current: 10A

Instant discharging current: 20A

End-off voltage: 30V

Internal resistance: ≤200mΩ

Battery weight: 5000g

Product dimension: 245×145×90mm(max)

Charging temperature:0~45℃

Discharging temperature: -20~55 ℃

Storage temperature: -20~45℃

Battery case: portable epoxy plate + PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection, equilibrium, 232 and 485 communication, etc.

Application field: detector power supply


Product features

1. Current: Lasts for a maximum of 20A discharge.

2. Data communication management: use imported software management chip, have 232 and 485 communication functions, accurate data transmission, accurate temperature control, so as to eliminate the security risks.

3. Battery characteristics: the battery has a long life for 2000 cycles, and can discharge at low temperature to -20 ℃.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
