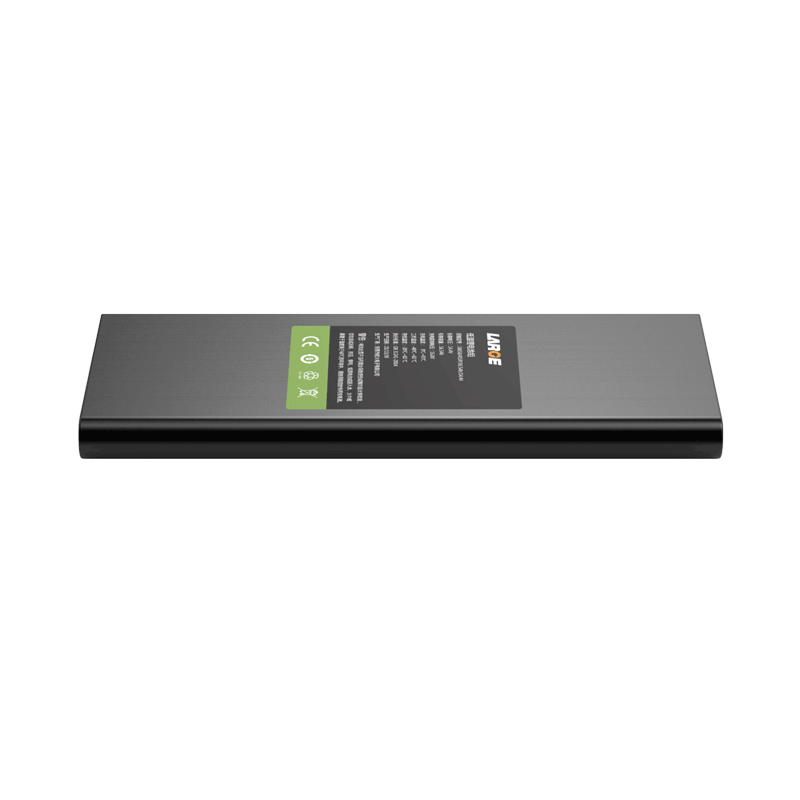

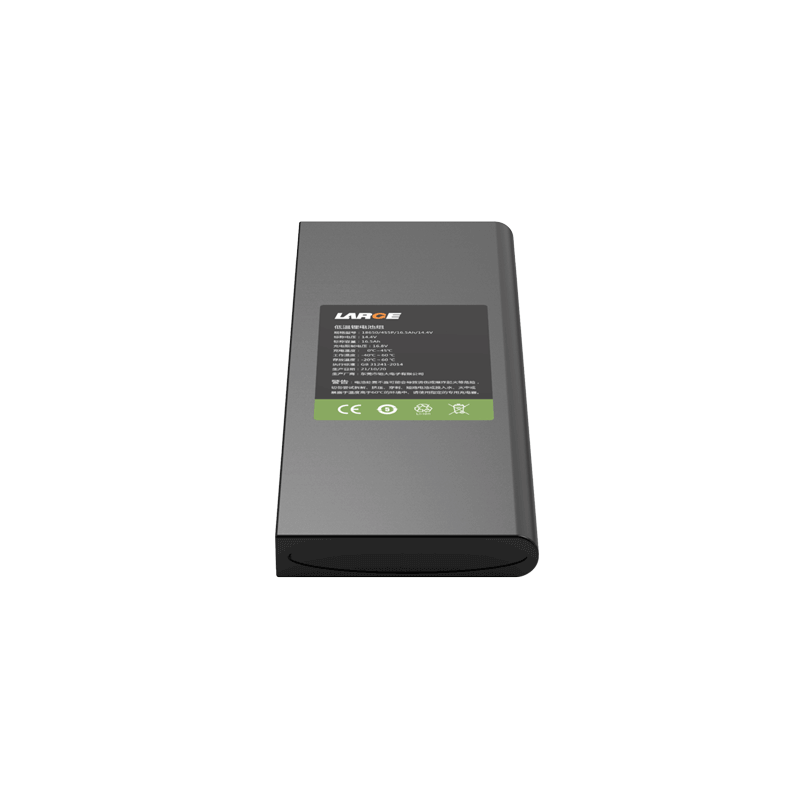

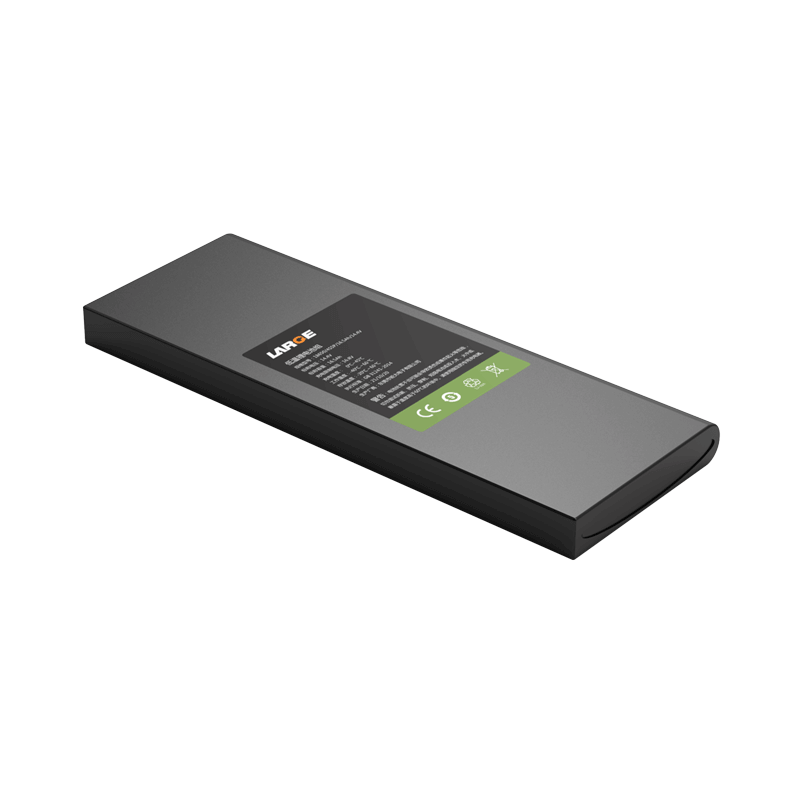

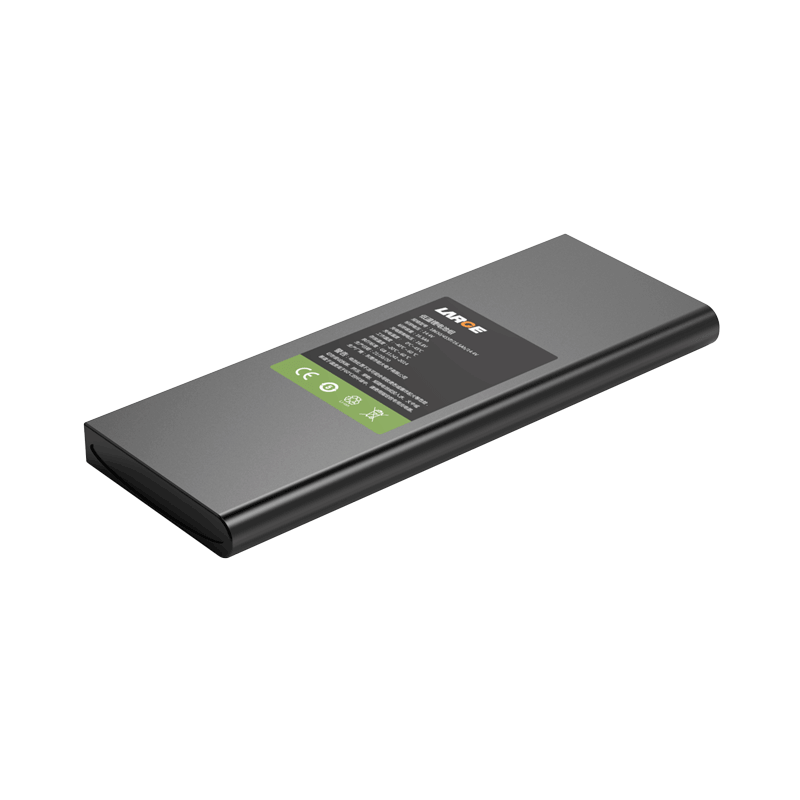

18650 14.4V 16.5Ah for JY Rugged Laptop with SMBUS Communication

Product number: 36AQ500-01

Cell model: 18650/3350mah /3.6V

Specification: 18650/4S5P/ 16.5AH /14.4V

Product size: 265*99*19(mm)

Nominal voltage: 14.4V

Nominal capacity: 16.5Ah

Charging voltage: 16.8V

Charging current: ≤8.15A

Discharge current: ≤8.15A

Discharge cut-off voltage: 10V

Product internal resistance: ≤180mΩ

Battery weight: About 1100G

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60 ℃

Storage temperature: -20~+60℃ (less than 1 month) -20~ 45 ℃(less than 3 months); -20~+30℃ (less than 12 months)

Battery package: PVC

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: JY rugged laptop

Product Features

1.PVC process

2.SMBUS communication protocol

3.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.

4.Battery protection management: Adopt imported well-known protection chips with good stability, high precision monitoring and accurate control, to eliminate safety risks to the maximum.

5.The battery pack has good safety, nice discharge performance and long cycle life.

6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
