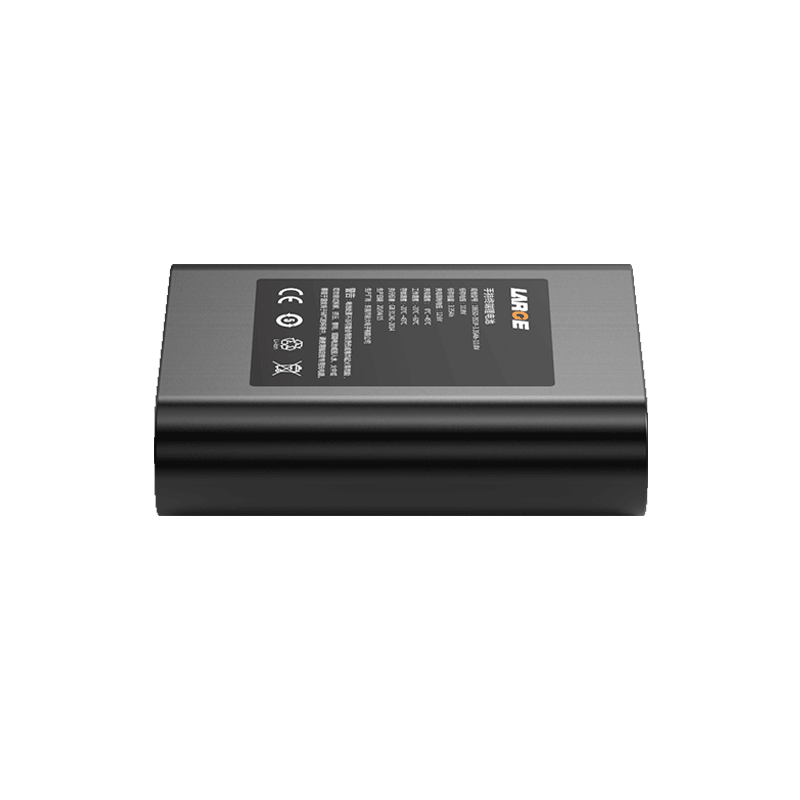

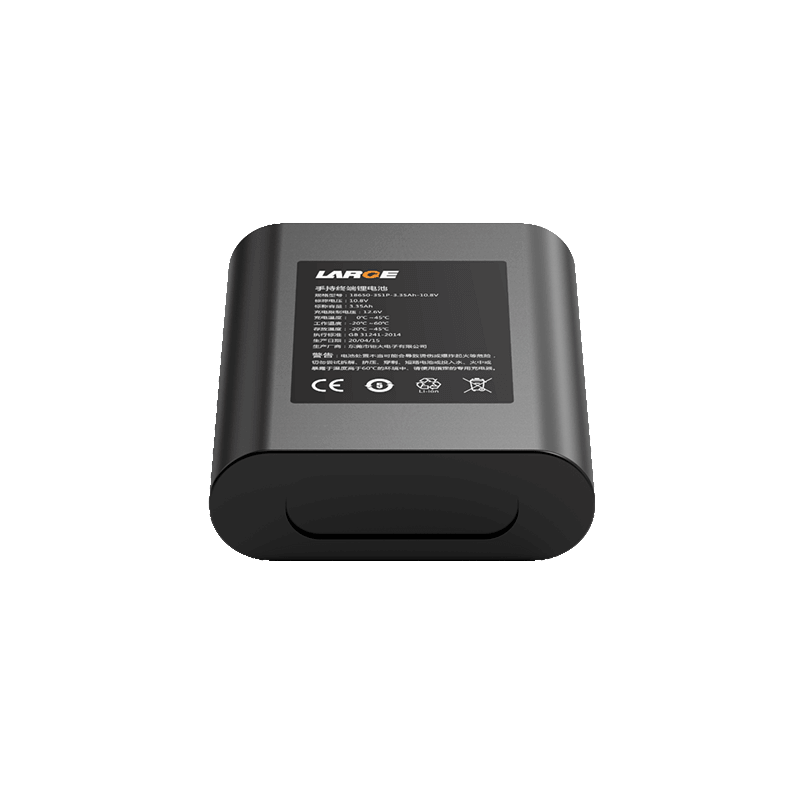

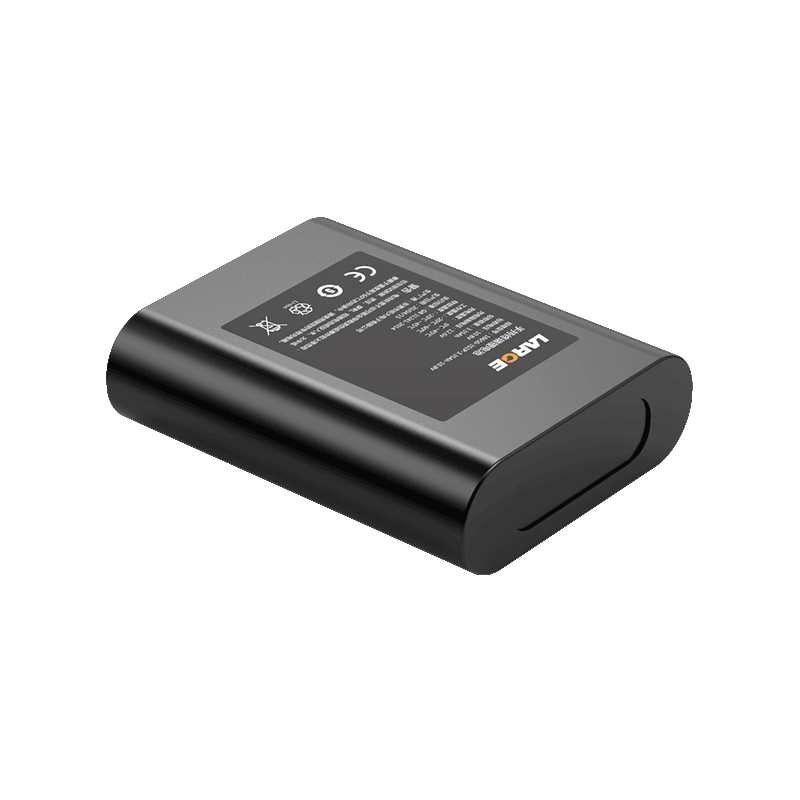

18650 3350mAh 3.6V BAK Lithium Battery for Handheld Terminal

Product number: 36AQ500-04

Cell model: 18650-3350MAH-3.6V

Battery specifications: 18650-3S1P-3.35AH-10.8V

Product size: 71mm *57mm *19.5mm

Nominal voltage: 10.8V

Nominal capacity: 3.35A

Rated capacity: 3.20A

Charging voltage: 12.6V

Charging current: 2A

Discharge current: 3A

Discharge cut-off voltage: 7.5V

Product internal resistance: ≤180mΩ

Battery weight: ≤200g

Charging temperature: 0~+45℃

Discharge temperature: -20~+65℃

Storage temperature: -20~+45 ° C (less than 1 month); -20 ~ 35 ℃(less than 3 months); -10~+25℃ (less than 12 months)

Battery package: PVC process;

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: Handheld terminal lithium battery

Product Features

1.PVC process is simple, reliable and easy to install.

2.SMBUS communication protocol

3.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.

4.Battery protection management: Adopt imported brand protection chips with high stability, high precision monitoring and accurate control, to eliminate potential safety hazards to the maximum.

5.The battery pack is safe, has good discharge performance and long cycle life.

6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
