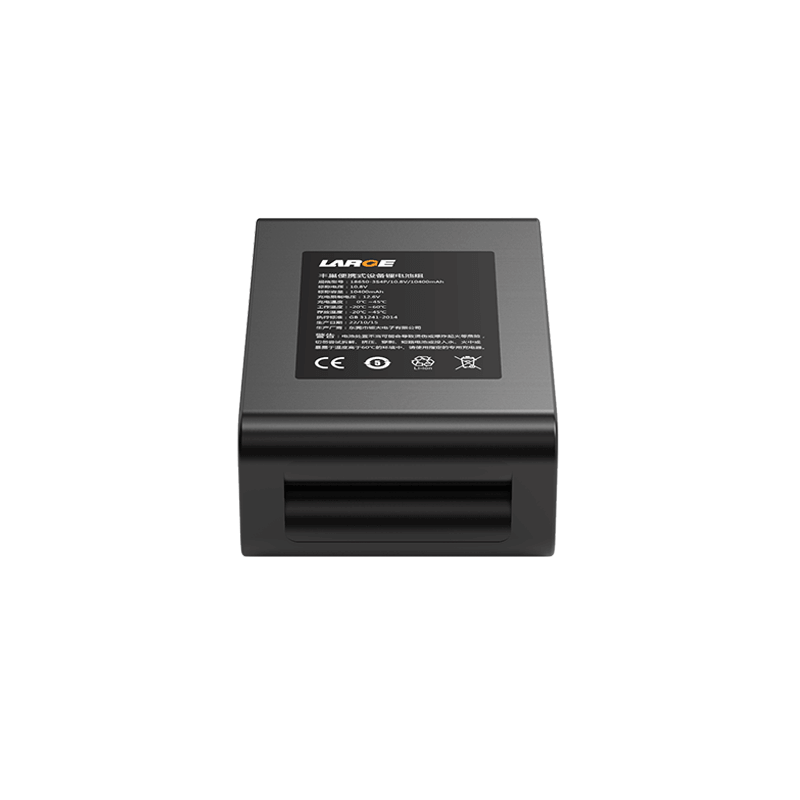

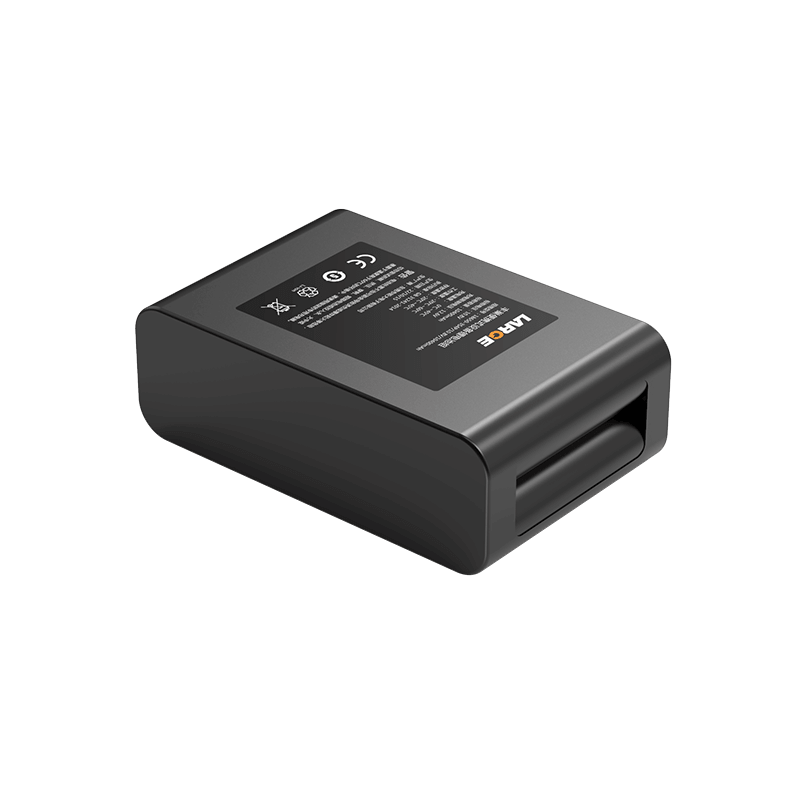

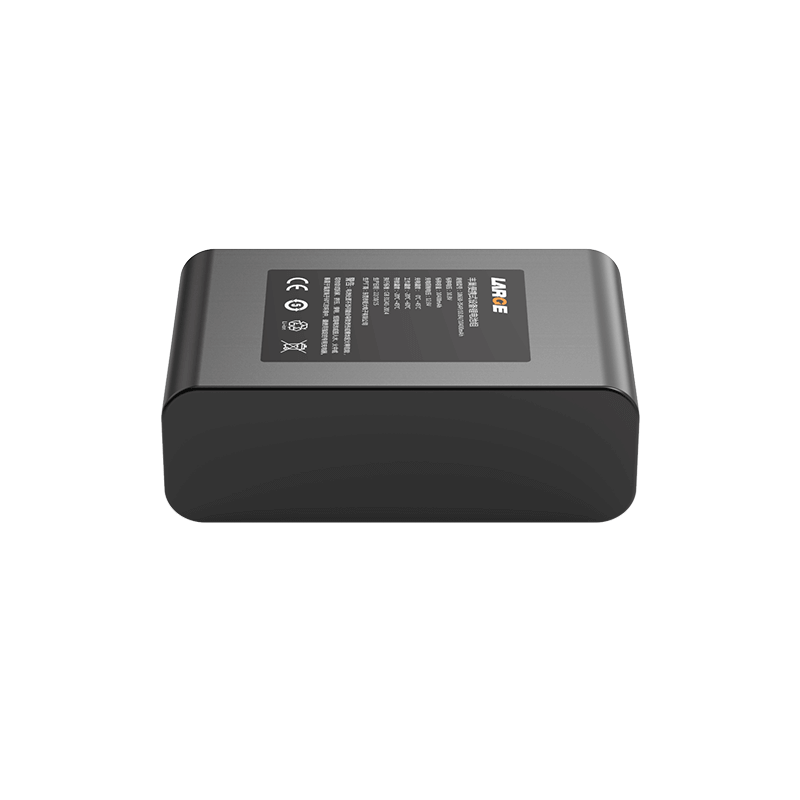

18650 10.8V 10400mAh Lithium-ion Battery Pack for Fengchao Portable Device

Project number: 33DZ046-01

Battery model: 18650/3.6V/2600mAh

Battery specification: 18650-3S4P/10.8V/10400mAh

Nominal voltage: 10.8V

Nominal capacity: 10400mAh

Charging voltage: 12.6V

Charging current: ≤2A

Discharge current: ≤2A

Instantaneous discharge current: 6.5-12.5A

Discharge cut-off voltage: 9V

Finished internal resistance: ≤150mΩ

Battery weight: 600g

Product size: 37.5*70.2*111mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 45℃

Battery package: PVC package

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: Portable equipment
