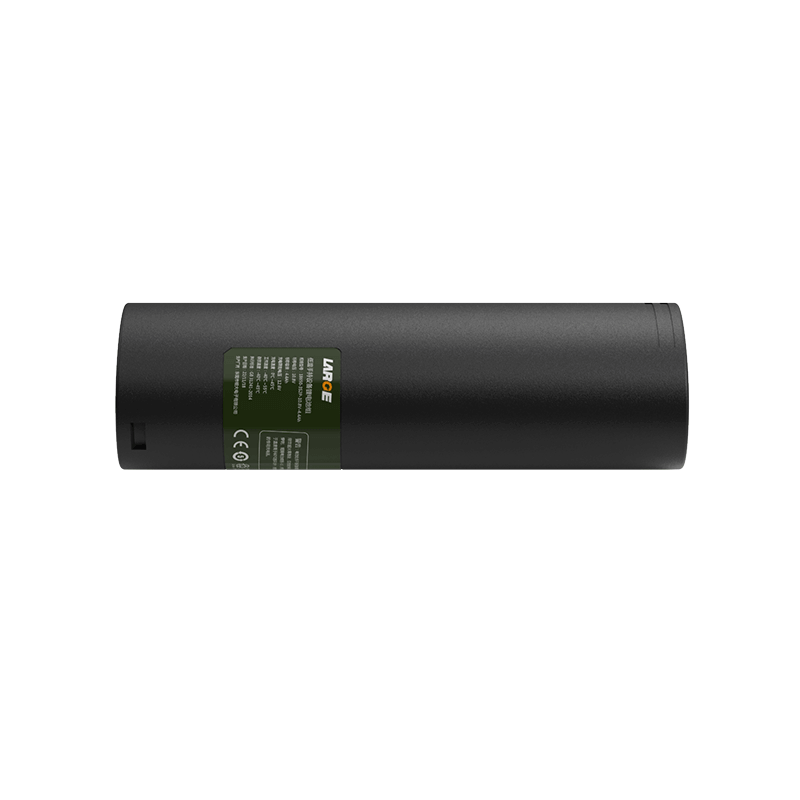

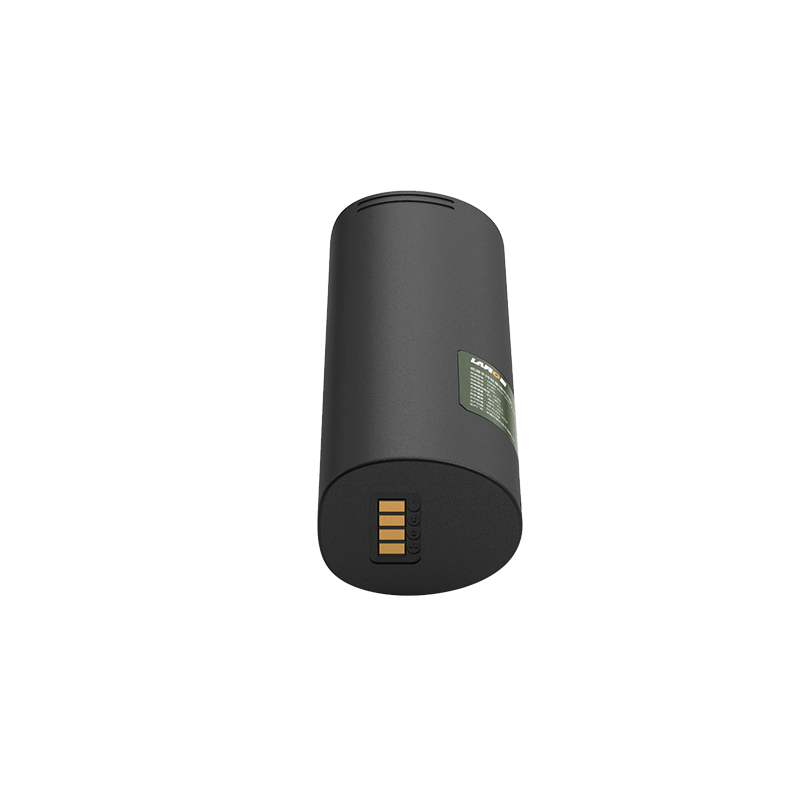

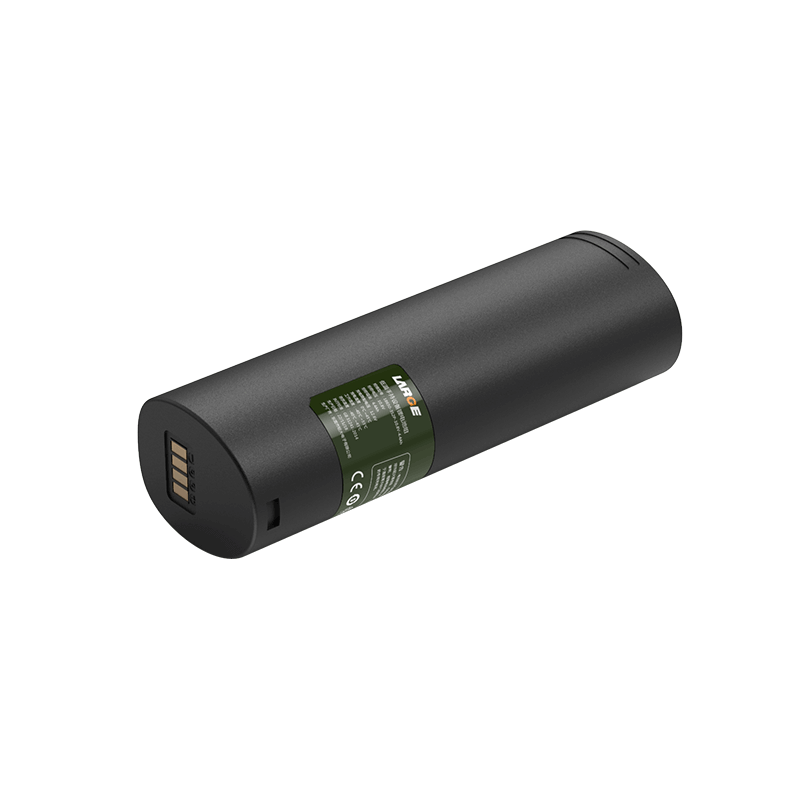

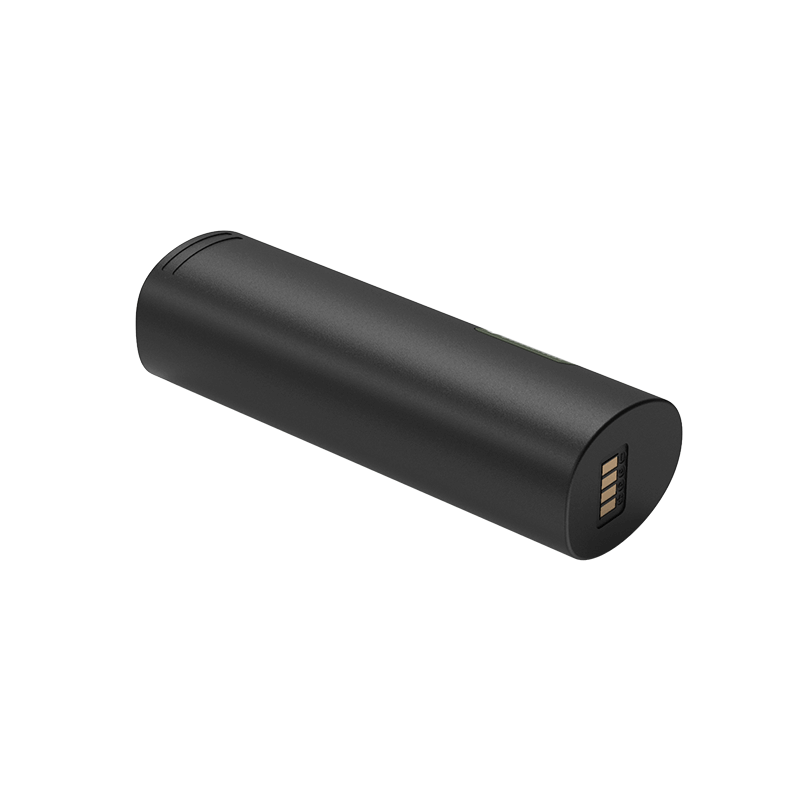

Handheld Device Low Temperature 18650 10.8V 4400mAh Lithium-ion Battery Pack

Product number: 36AQ602-02

Battery model: 18650LS-3.7V-2200mAh

Battery specification: 18650-3S2P-10.8V-4.4Ah

Product size: 146±0.5*49.5±0.3*39.53±0.3(mm)

Nominal voltage: 10.8V

Nominal capacity: 4.4Ah

Charging voltage: 12.6V

Charging current: 2.15A

Discharge current: 4.3A

Discharge cut-off voltage: 7.5V

Finished internal resistance: ≤180mΩ

Battery weight: 375g

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 55℃

Storage temperature: -40~+45℃ (less than 1 month) -20 ~ 35 ℃(less than 3 months); -20~+25℃ (less than 12 months)

Battery package: plastic case

Communication protocol: SMBUS

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.

Application: Handheld devices
