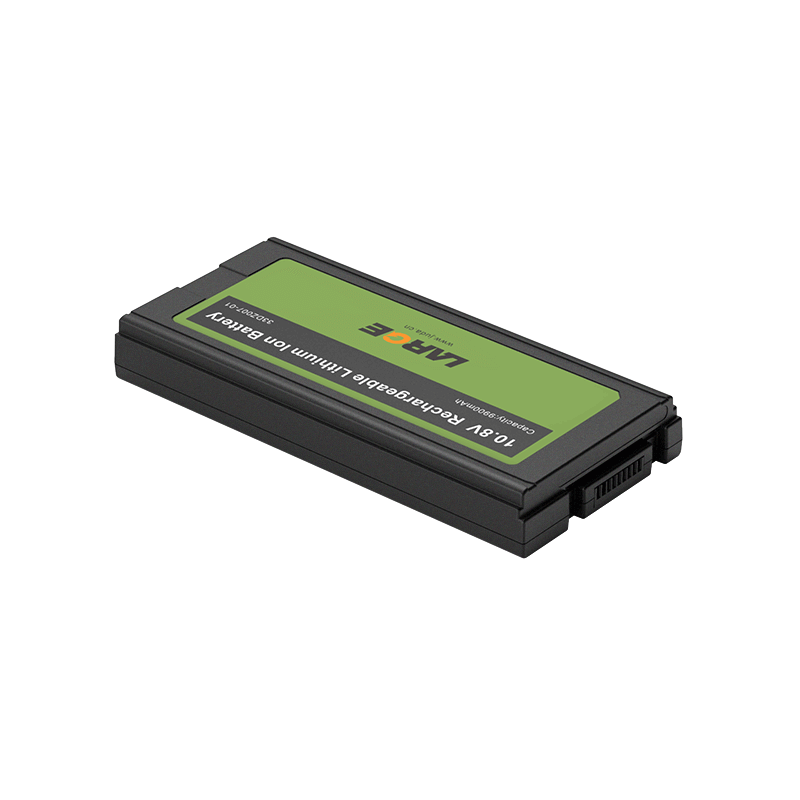

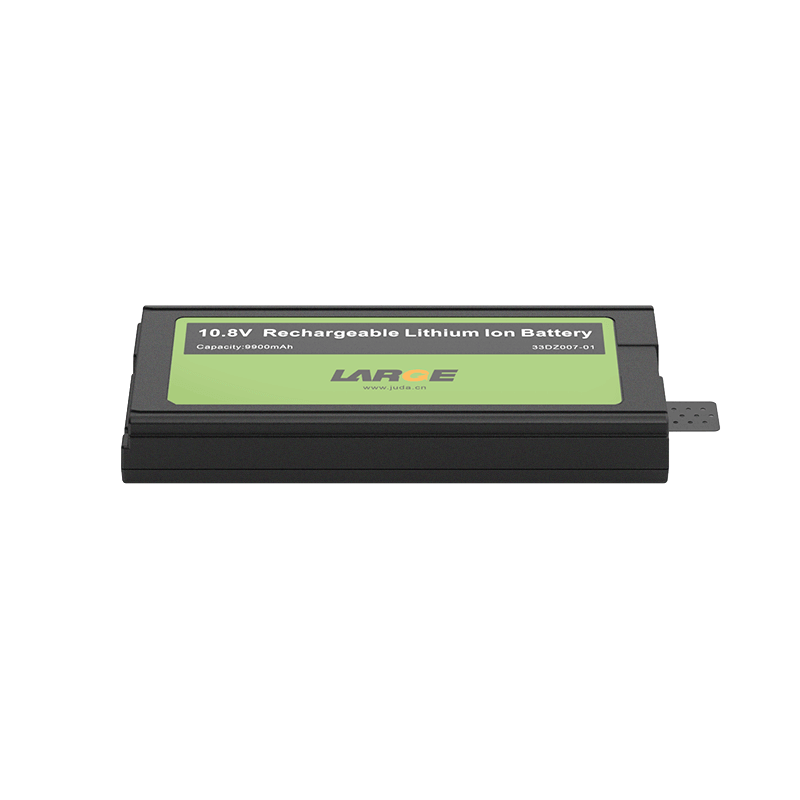

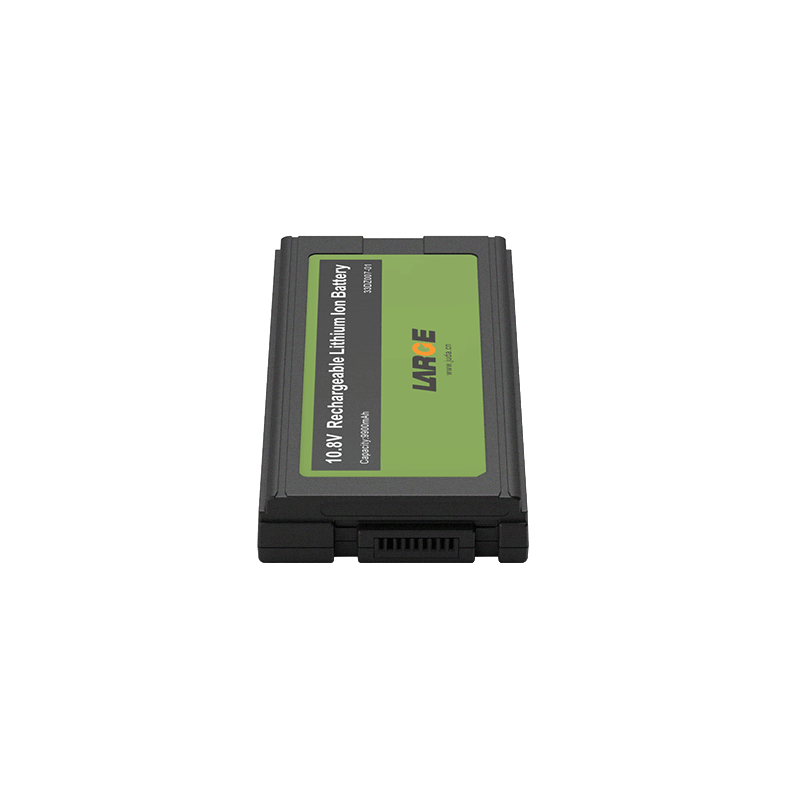

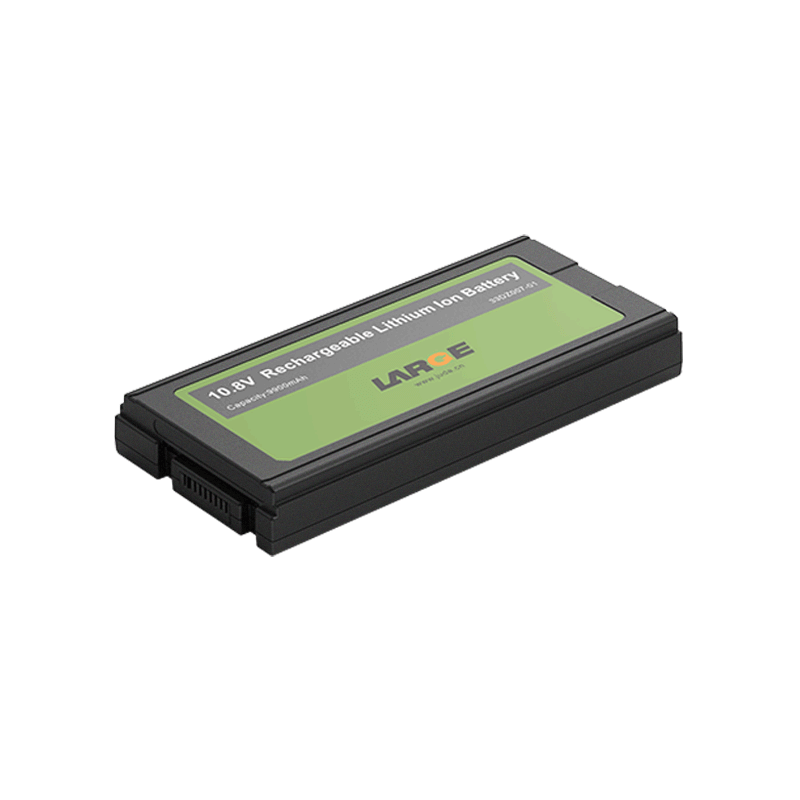

Low Temperature 18650 10.8V 9.9Ah Laptop Lithium-ion Battery Pack

Product number: 33DZ007-01-01

Battery model: INR18650/3.35Ah/3.6V (low temperature)

Battery specification: 18650-3S3P-9.9Ah-10.8V (low temperature)

Nominal voltage: 10.8V

Nominal capacity: 9.9Ah

Charging voltage: 12.6V

Charging current: ≤4A

Discharge current: 7A

Instantaneous discharge current: 8A

Discharge cut-off voltage: 7.5V

Finished internal resistance: ≤200mΩ

Battery weight: ≤520g

Product size: 164×77.7×21.5mm(L×W×H tolerance ±0.5mm)

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: -20 ~ 45℃

Battery case: Industrial grade

Communication protocol: SMBUS

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, etc.

Application: laptop, special equipment

Product Features

1.Current: Maximum sustainable 7A discharge.

2.Parameters and certification: refer to CQC certification standard, using imported protection chip, imported MOS, and SMBUS communication.The host can realize real-time transmission of current, voltage, temperature, capacity changes, which use cell capacity efficiently and eliminate security risks.

3.Cell features: Use self-developed ultra-high capacity 18650 low temperature cell.

4.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
