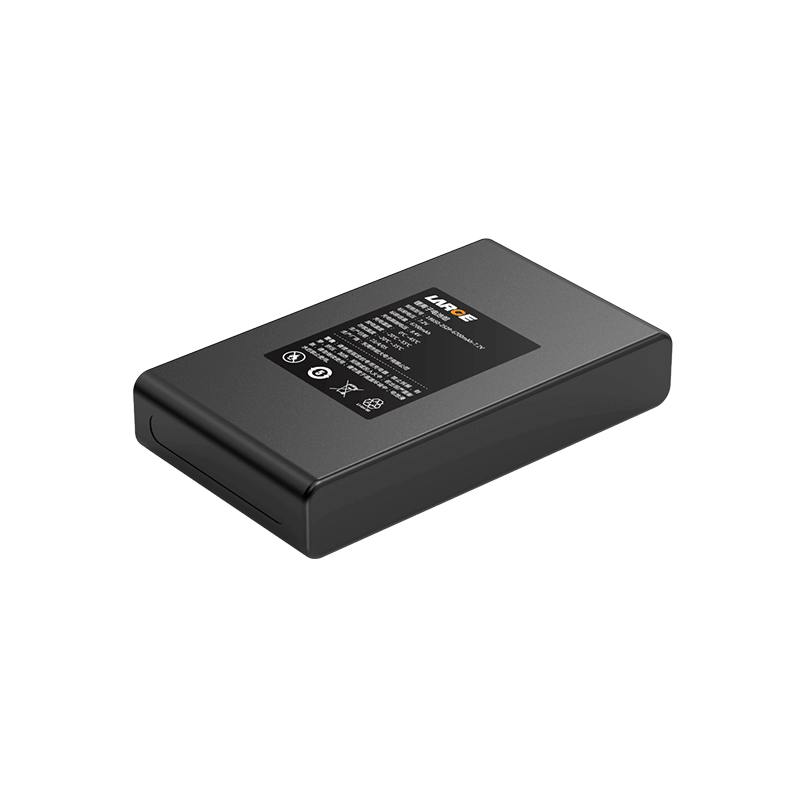

18500 25.2V 3.8AH Medical Device Power Supply Lithium-ion Battery

Product number: 33DZ042-03

Battery model: NCR18500A/2040mAh/3.6V

Battery specification: 18500-7S2P/25.2V/3.8Ah

Nominal voltage: 25.2V

Rated capacity: 3.8Ah

Charging voltage: 29.4V

Charging current: ≤2.73A

Discharge current: ≤7.76A

Instantaneous discharge current: 15-30A

Discharge cut-off voltage: 19.6V

Finished internal resistance: ≤200mΩ

Battery weight: 580g

Product size: 45*65*145mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 45℃

Temperature protection: 70℃±5℃

Battery case: PVC

Communication protocol: I2C communication

Lithium-ion protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, anti-reverse protection and so on

Application: Medical equipment
