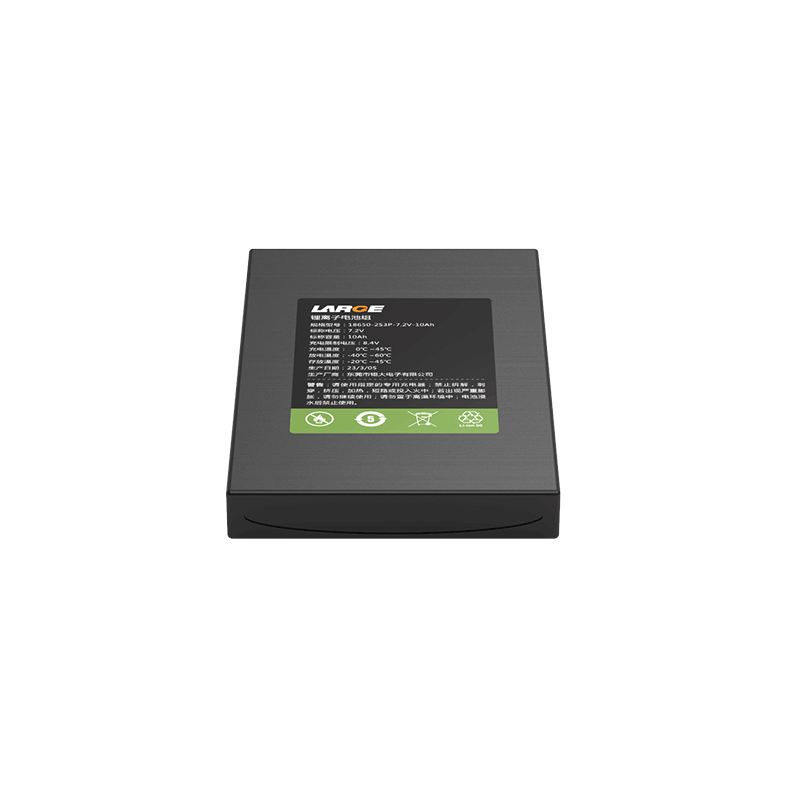

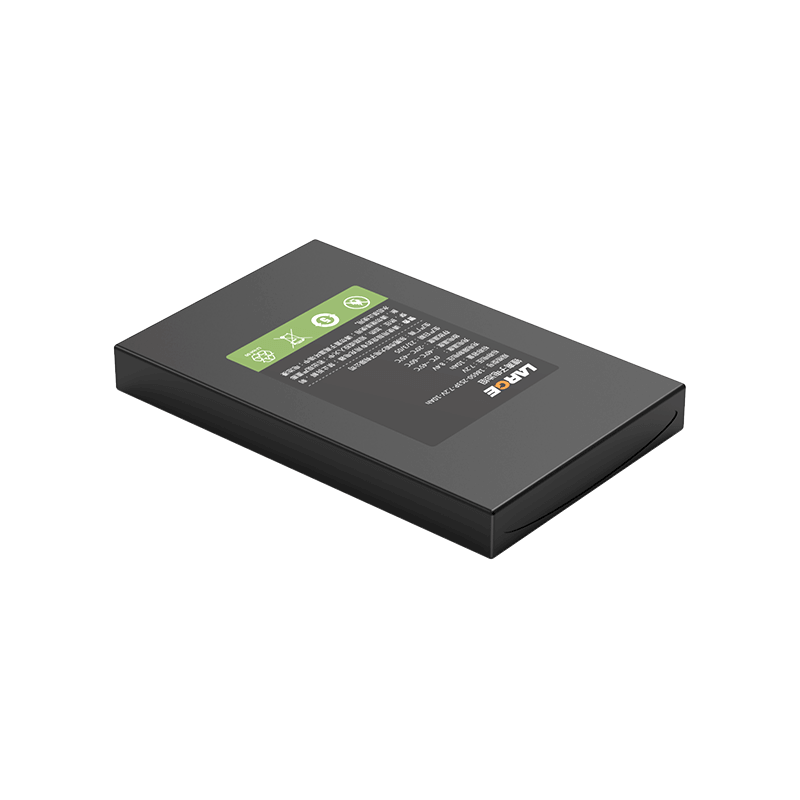

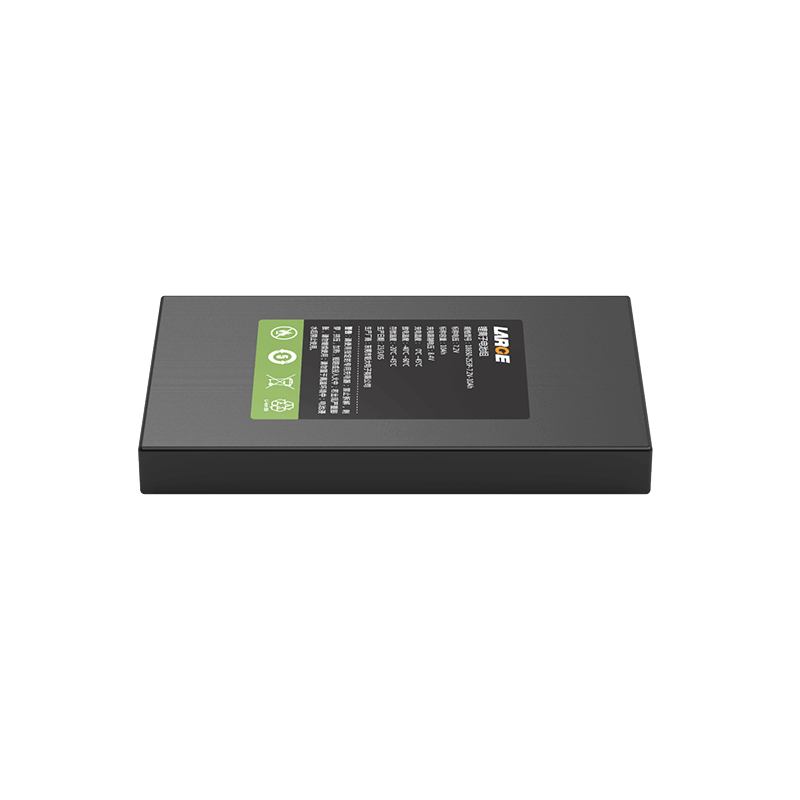

Low Temperature Polymer Llithium-ion Battery Pack 7.4V 4400mAh

Product number: 40AQ061-03

Battery model: 5566102L-3.7V-4450mAh

Battery specification: JD5566102L-2S1P-7.4V-4400mAh

Product size: 106×67×11.6mm

Nominal voltage: 7.4V

Nominal capacity: 4400mAh

Charging voltage: 8.4V

Charging current: 2.8A

Discharge current: 2.8A

Discharge cut-off voltage: 5V

Finished internal resistance: ≤120mΩ

Battery weight: ≤210g

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 55℃

Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)

Battery package: PVC heat seal

Output mode: national standard UL wire

Lithium-ion protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.

Application: Built-in battery
