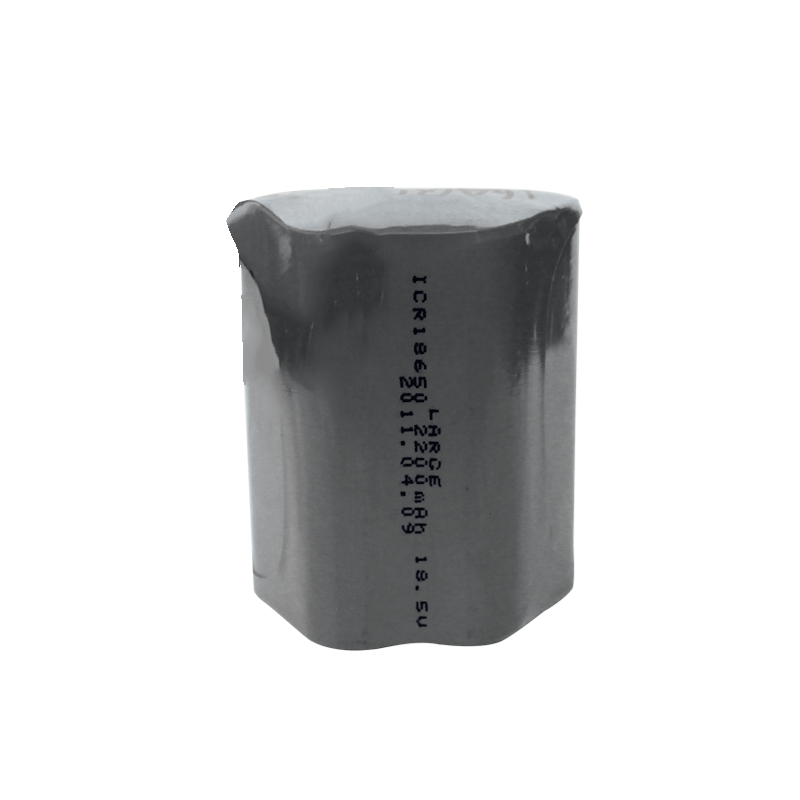

18650 18.5V 2200mAh Sanyo Ternary Lithium Battery

Project number: 16AQ009-03

Battery model: Sanyo18650/2200mah /18.5V

Nominal voltage: 18.5V

Nominal capacity: 2200mAh (0.2C discharge to 13.75V)

Factory voltage: ≥18.5

Product dimension: MAX71×54.6×36.5mm

Internal resistance: ≤550mΩ

Output: UL1007 20# 200±5mm red black, stripping 2±0.5mm

Execution standard: GB/T 18287-2000

Warranty period: 12 months

Operating temperature: 0~45℃ (charging), -20~60℃ (discharging)

Battery charging: Charging limit voltage: 21V Charging current: 1100mA(standard), 2200mA(maximum)

Battery discharge: Discharge cut-off voltage: 13.75V Discharge current: 440mA(standard), 2200mA(Max)
