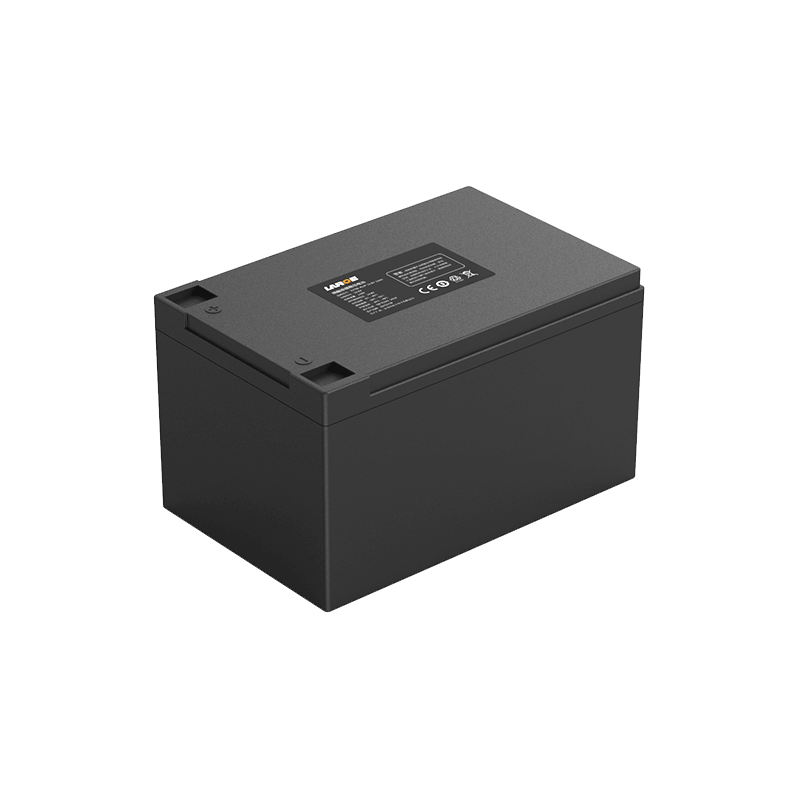

32700 12V 12Ah LiFePO4 Stable Voltage Battery

Product number: 01WQ0078-01

Battery model: 32700-3.2V-6000mAh

Battery specifications: 32700-4S2P-12.8V-12Ah

Product size: 151×98×95mm

Nominal voltage: 12.8V

Nominal capacity: 12Ah

Charging voltage: 14.6V

Charging current: 5.5A

Discharge current: 12V/3.5A

Discharge cut-off voltage: 9.2V

Finished internal resistance: ≤150mΩ

Battery weight: 1.35Kg

Charging temperature: 0 ~ 45℃

Discharge temperature: -10 ~ 55℃

Storage temperature: -20~+45℃ (< 1 month) -20~ 35℃(< 3 months); -20~+25℃ (< 6 months)

Battery package: plastic case

Output mode: national standard UL wire

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: Equipment battery
