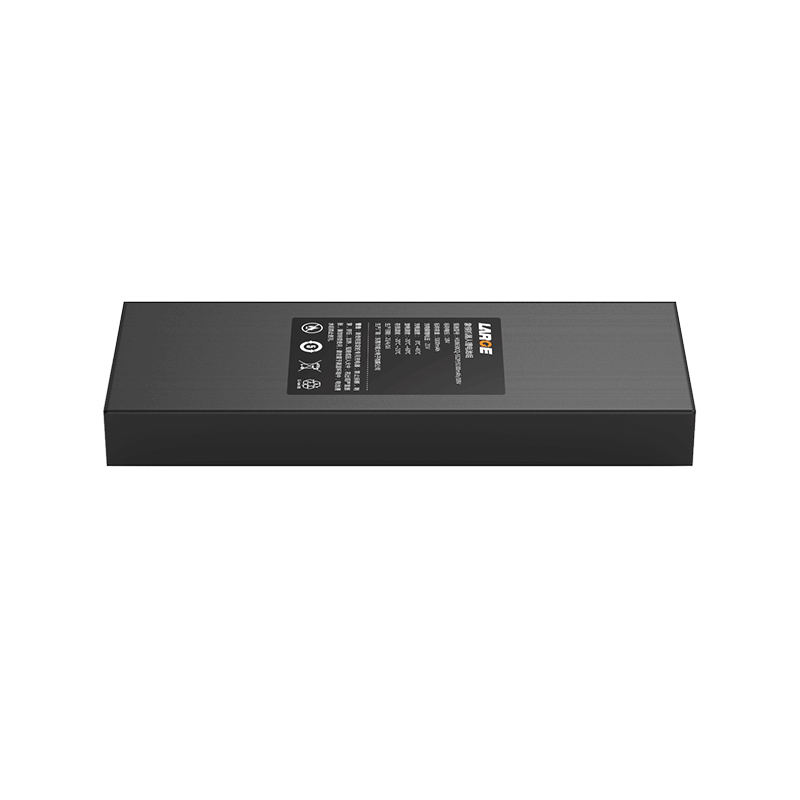

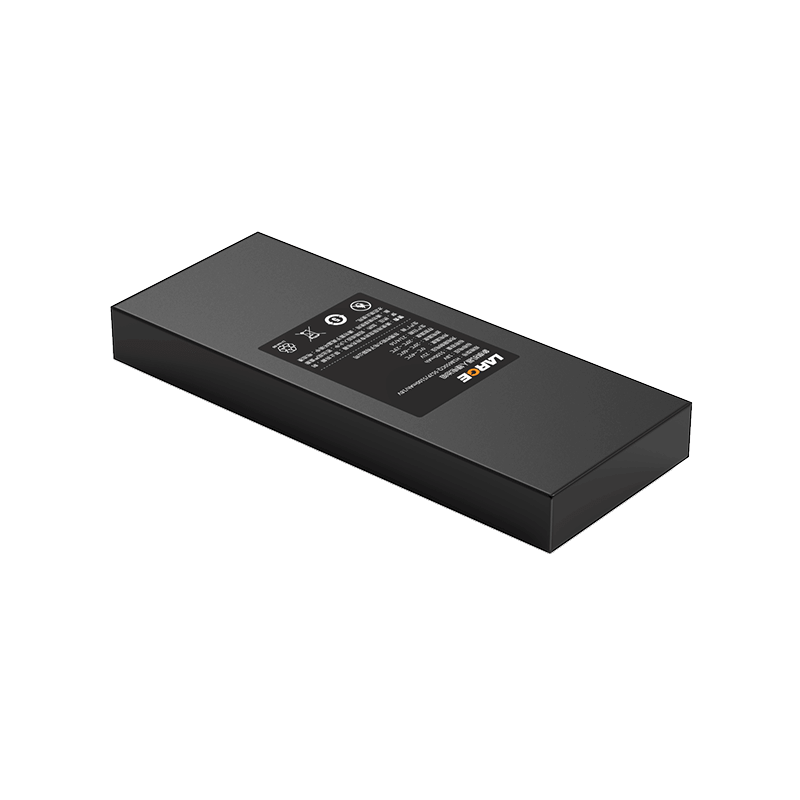

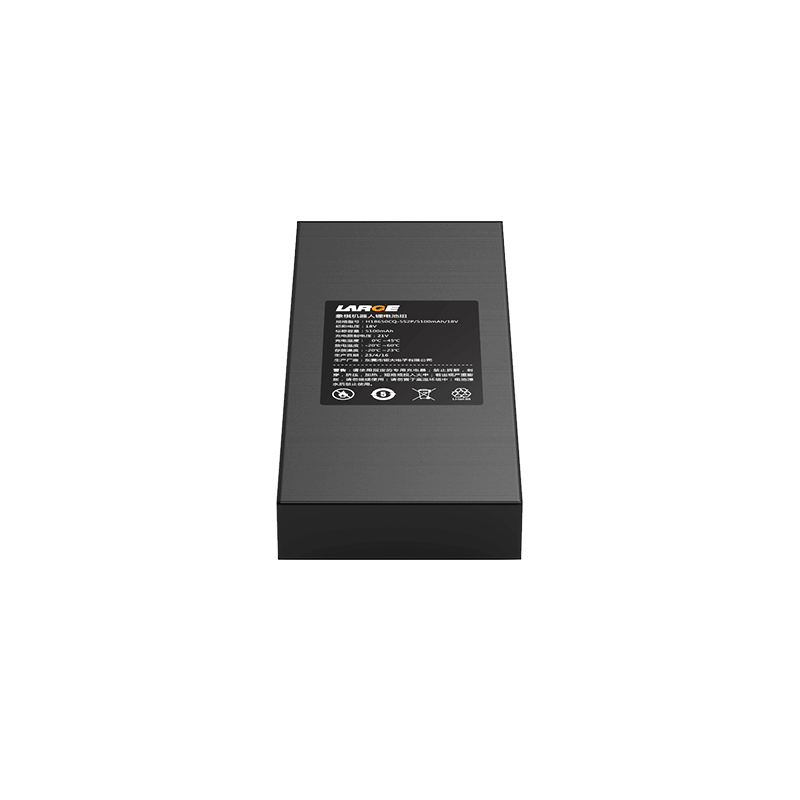

18650 18.0V 5100mAh Chess Robot Lithium-ion Battery Pack

Product number: 01WQ0104-01

Battery model: H18650CQ/2550mAh/3.6V

Battery specification: H18650CQ-5S2P/5100mAh/18V

Nominal voltage: 18.0V

Nominal capacity: 5100mAh

Charging voltage: 21.0V

Charging current: ≤2.55A

Discharge current: 6.0A

Instant discharge current: 12.0A

Discharge cut-off voltage: 12.5V

Finished internal resistance: ≤300mΩ

Battery weight: 550g

Product size: 22*90*153mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 23℃

Battery case: /

Intelligent lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Field of application: Chess robot
