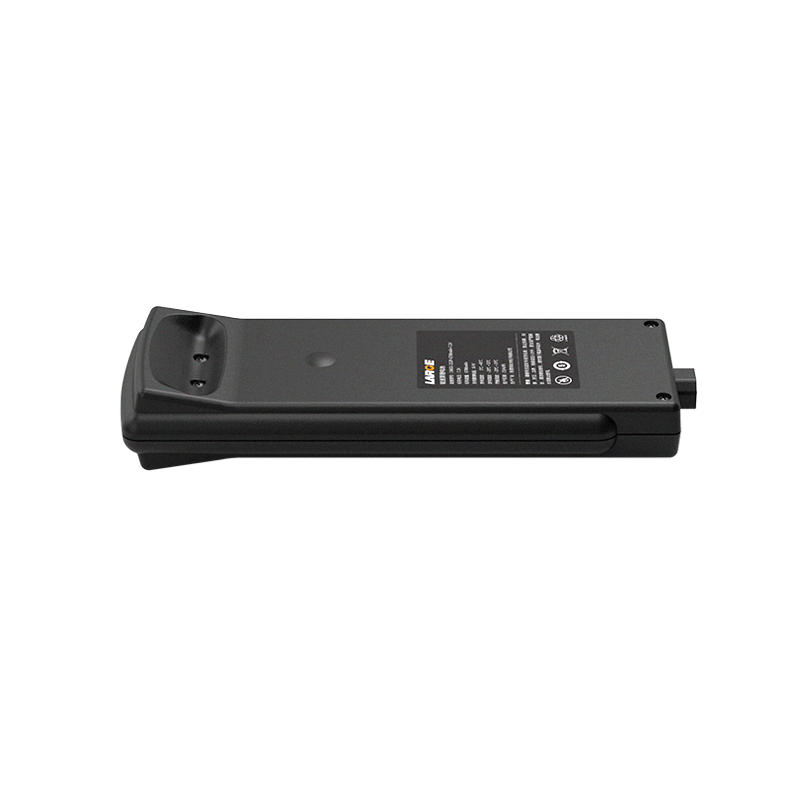

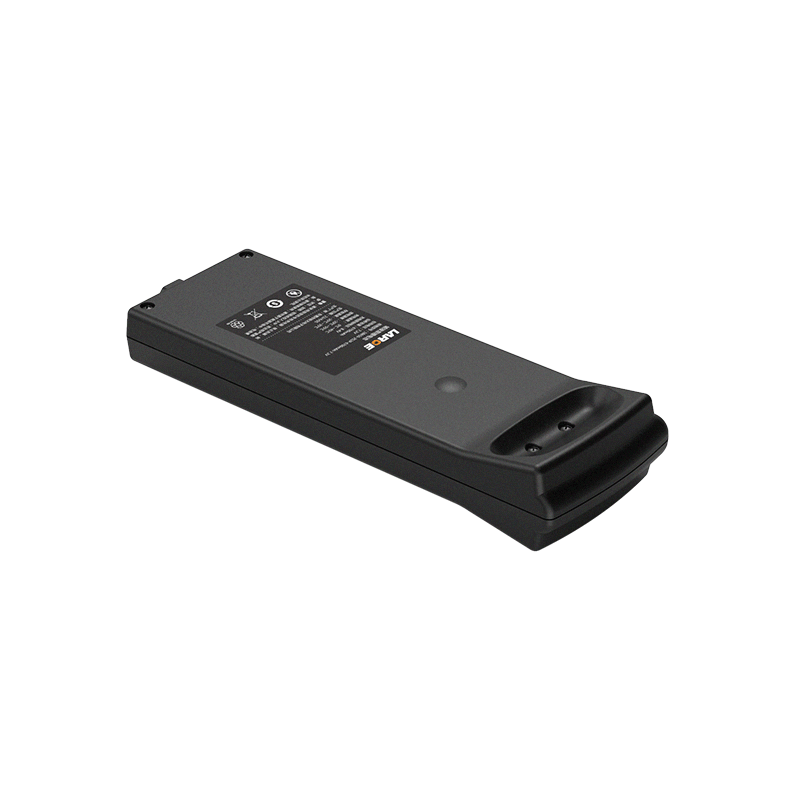

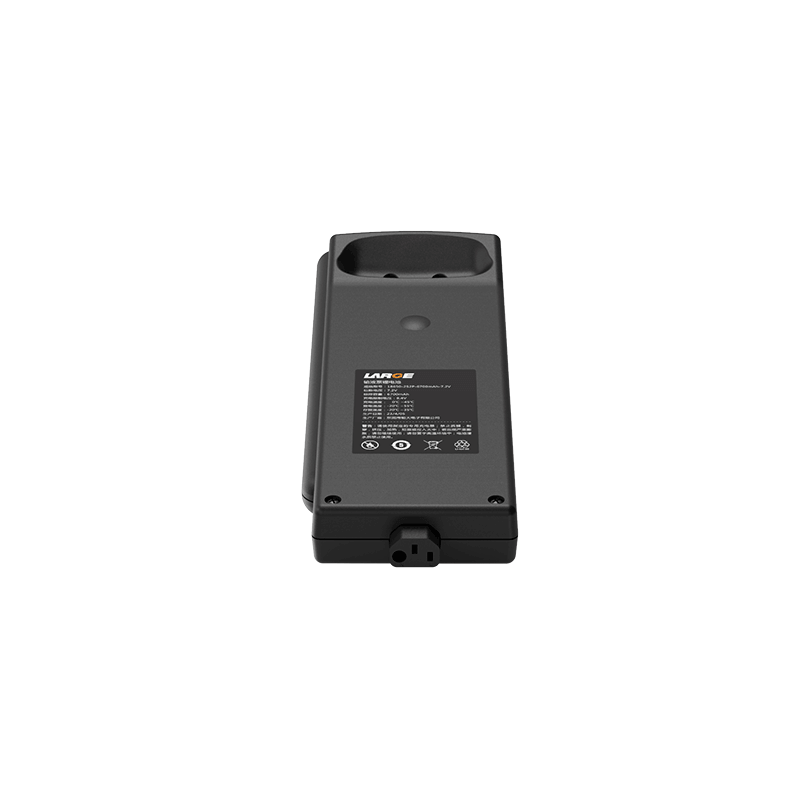

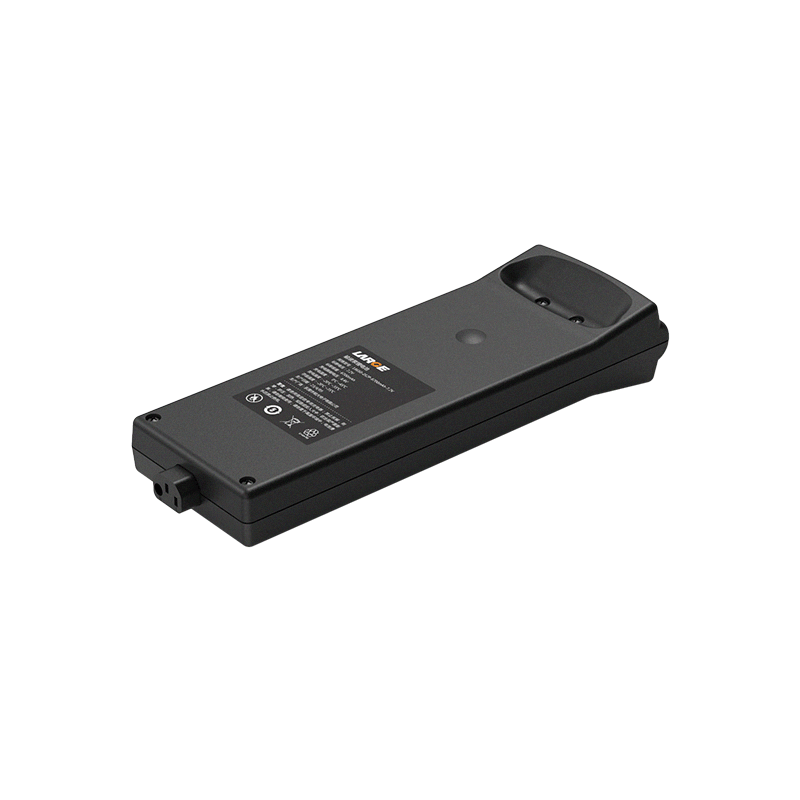

21700 21.6V 3.6Ah Lithium-ion Battery Pack for Medical Device

Product number: 16AQ369-23

Cell model: LR2170LA/4000mAh/3.6V

Battery specification: 21700-7S1P/3600mAh/25.2V

Nominal voltage: 25.2V

Nominal capacity: 3.6Ah

Charging voltage: 28.7V

Charging current: ≤2.5A

Discharge current: 15.0A

Instantaneous discharge current: 15.0A

Discharge cut-off voltage: 17.71V

Finished internal resistance: ≤200mΩ

Battery weight: 800g

Product size: 48*101.2*295mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 23℃

Battery case: ABS+PC

Intelligent lithium-ion battery protection: power management, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Field of application: Medical
