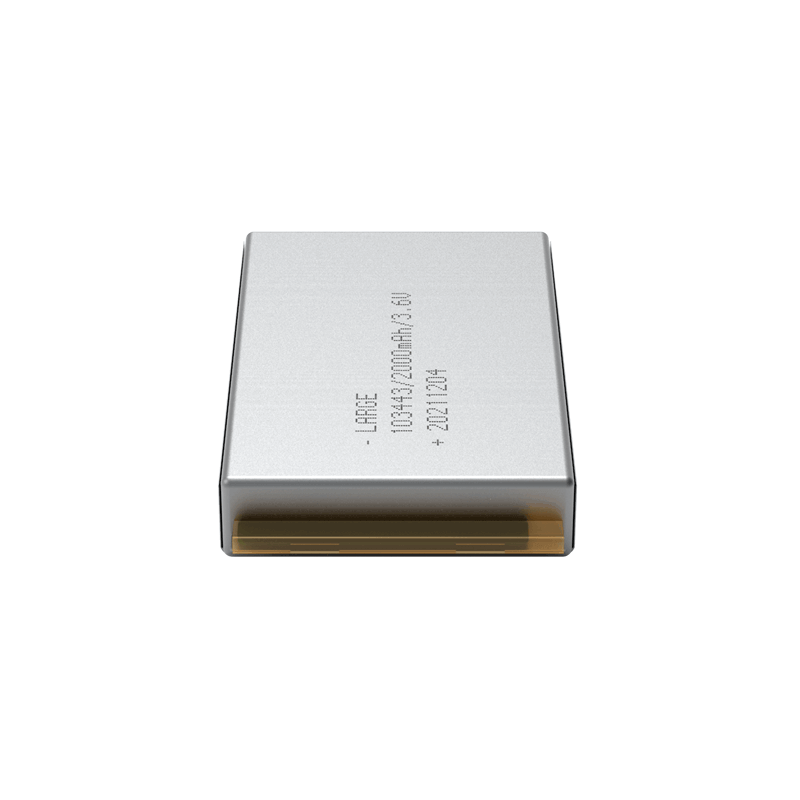

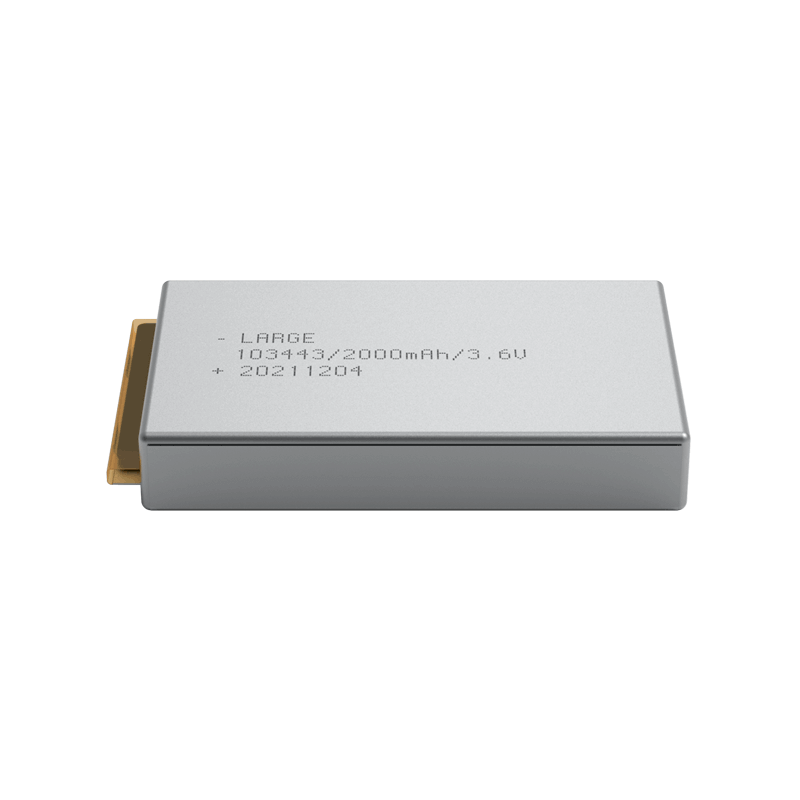

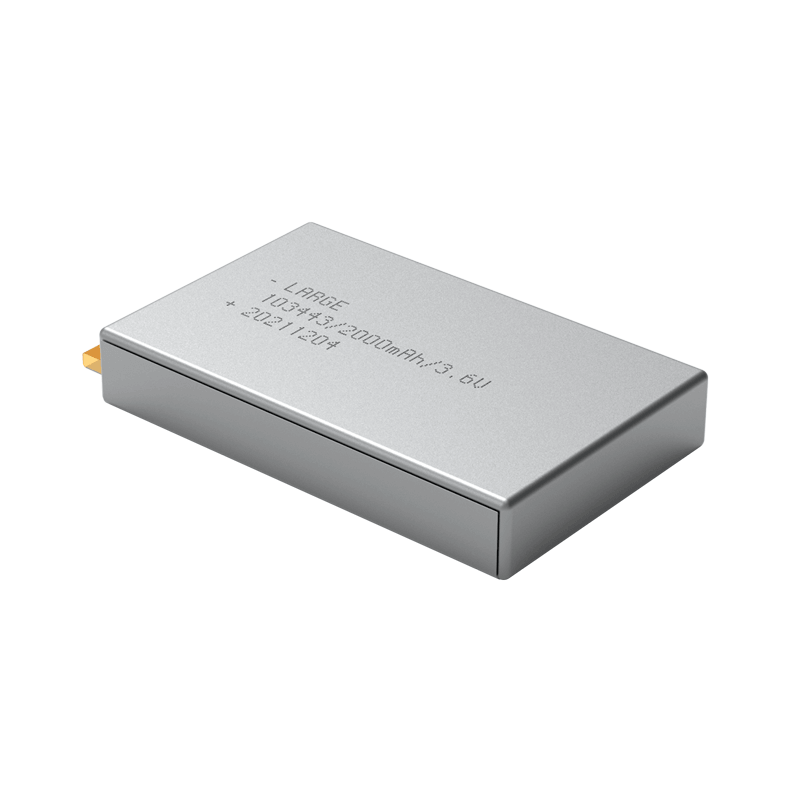

3.6V 2000mAh Lithium-ion Battery for Handheld Positioner

Project number: 01WQ0018-01

Cell model: 103443/2010mAh/3.6V

Specification: 103443/2000mAh/3.6V

Nominal voltage: 3.6V

Nominal capacity: 2000mAh

Charging current: ≤0.5A

Discharge current: 0.8A

Instantaneous discharge current: 1.0A

Discharge cut-off voltage: 2.8V

Internal resistance: ≤250mΩ

Battery weight: 35G

Product size: 11*38.0*50mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 50℃

Storage temperature: -20 to 25°C

Battery case: /

Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Handheld positioner
