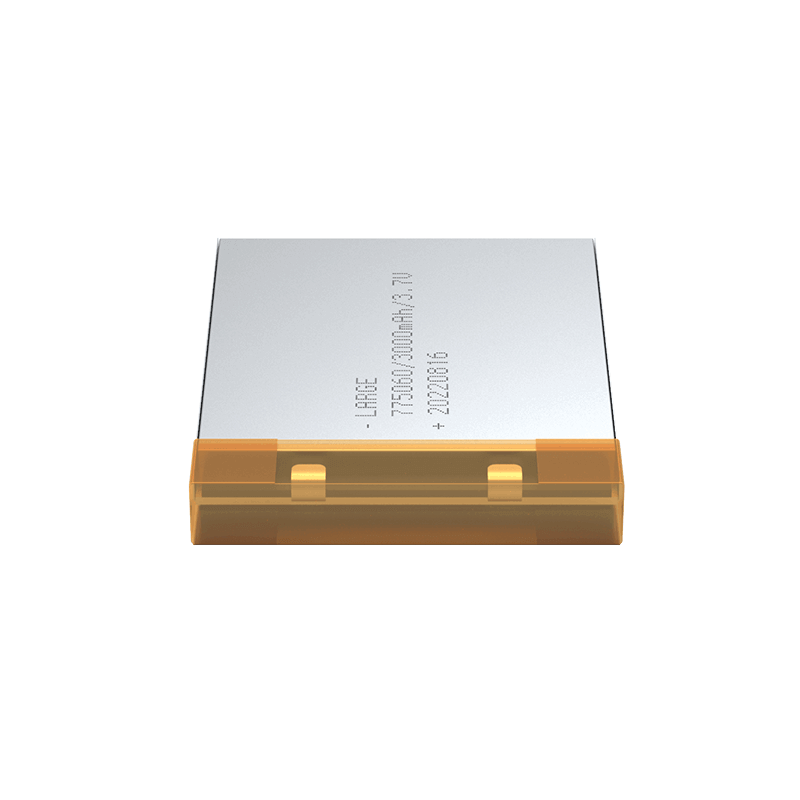

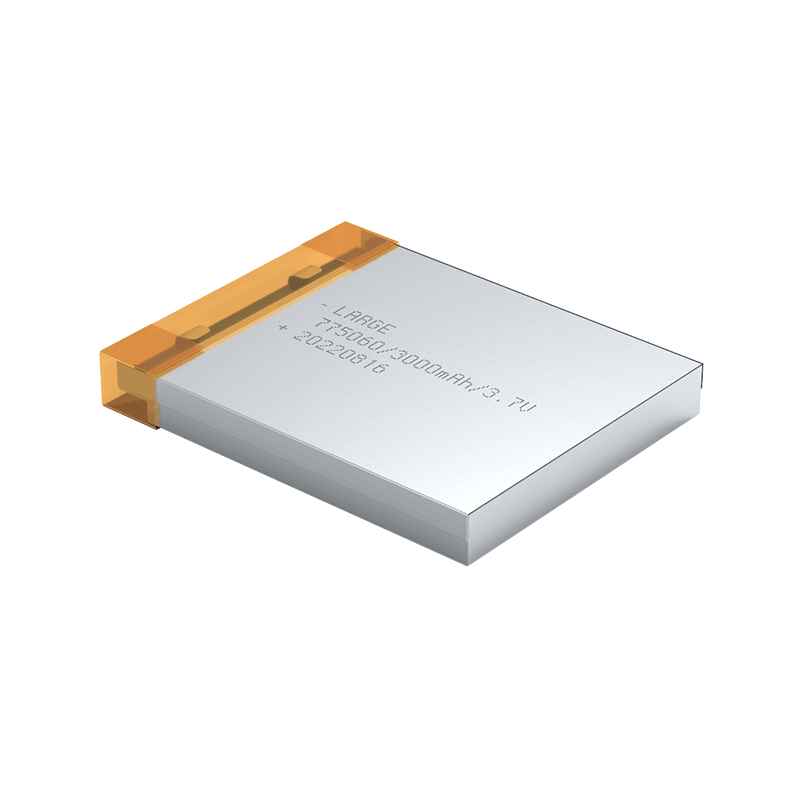

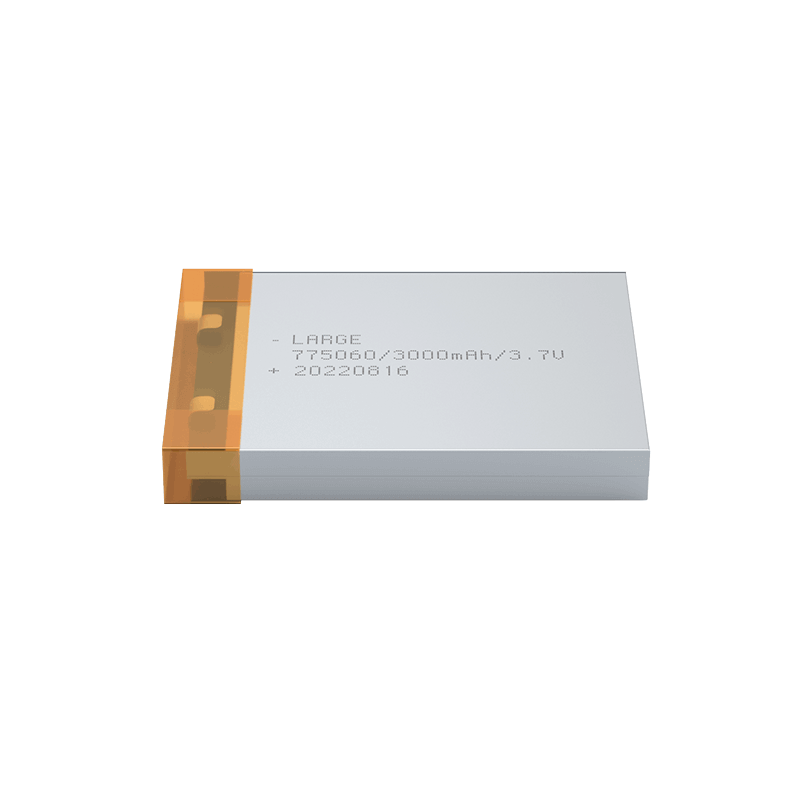

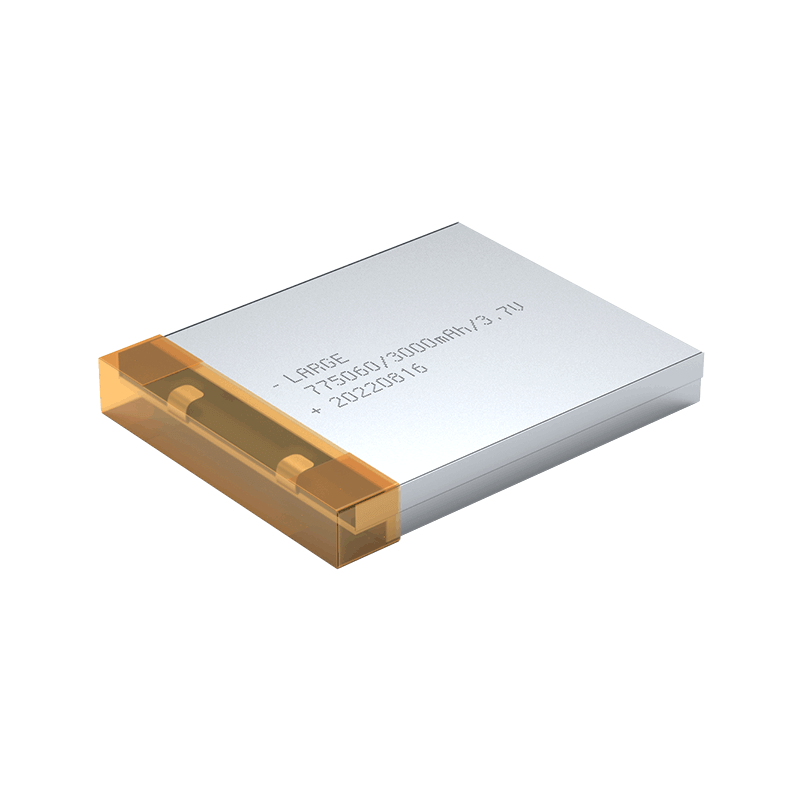

775060 3.7V 3000mAh Polymer Lithium Battery for Medical Blood Pressure Monitor

Product number: 01WQ0076-01

Cell model: 775060-3000mAh-3.7V

Battery specification: 775060-1S1P-3000mAh-3.7V

Product size: 69*51*8.5mm (Max)

Nominal voltage: 3.7V

Nominal capacity: 3000mAh

Internal resistance of finished product: 120mΩ or less

Charging voltage: 4.2V

Charging current: ≤6A

Discharge current: ≤1.5A

Discharge cut-off voltage: 3.0V

Battery weight: 55g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 ~ 35 ° C

Battery package: Simple package

Output mode: JST plug

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection,ESD protection, etc

Applications: sphygmomanometer, blood gas analyzer, portable medical equipment
