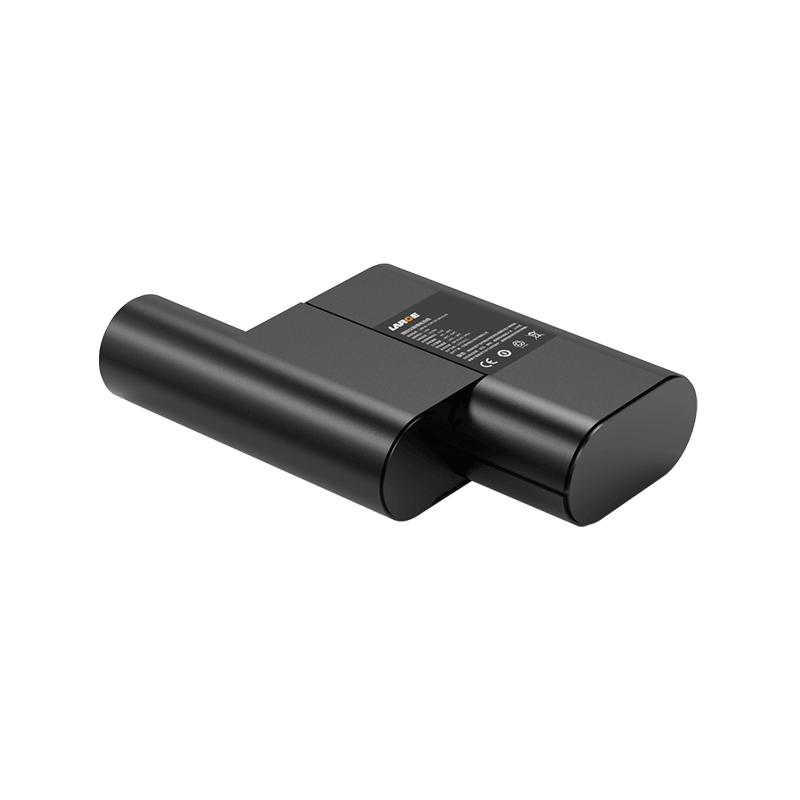

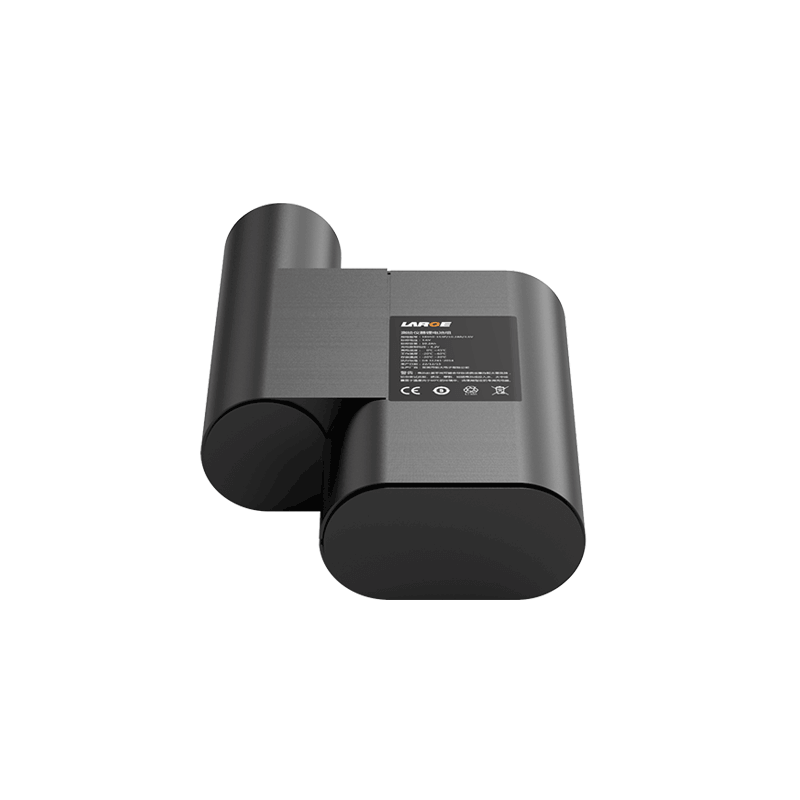

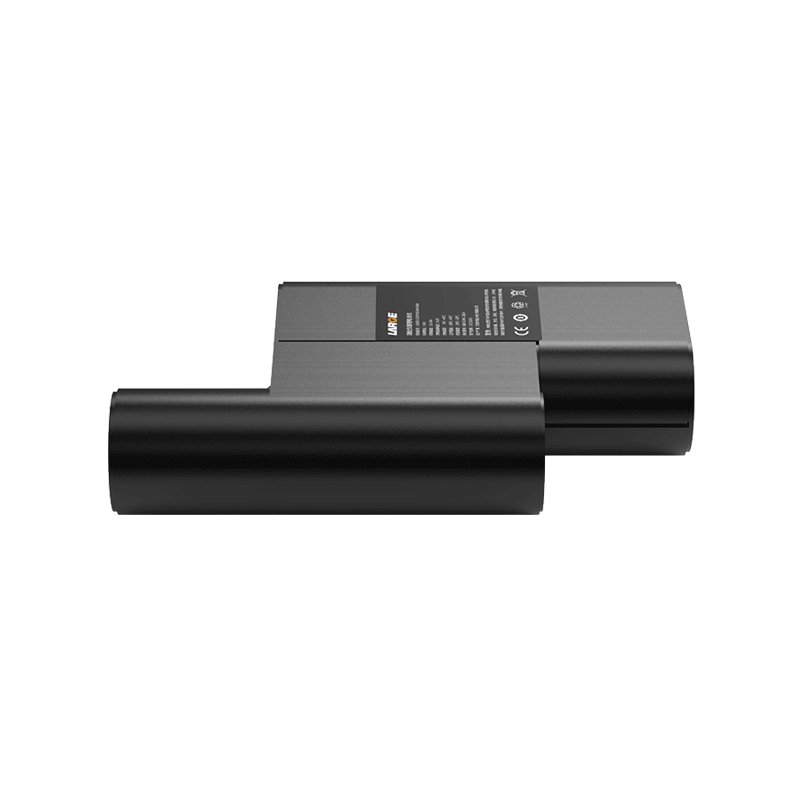

18650 3.6V 10.2Ah Lithium-ion Battery Instrument of Surveying and Mapping

Project number: 05BQ673-45

Battery model: NCR18650/3350mAh/3.6V

Battery specification: 18650-1S3P/10.2Ah/3.6V

Nominal voltage: 3.6V

Nominal capacity: 10.2Ah

Charging current: ≤5.0A

Discharge current: 5.0A

Instantaneous discharge current: 8A

Discharge cut-off voltage: 2.8V

Finished internal resistance: ≤180mΩ

Battery weight: 50g

Product size: 20*55.71*92.0mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 20℃

Battery case: /

Intelligent lithium-ion protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: Surveying and mapping instruments
